Extension Section
1.

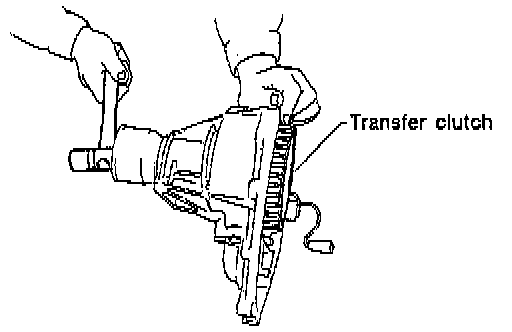

Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
CAUTION: Be careful not to damage the oil seal in the extension.
2.

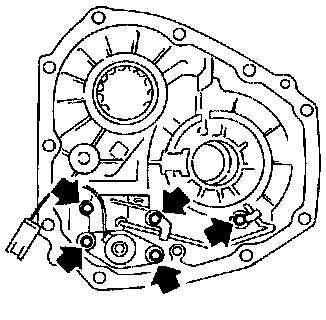

Remove duty solenoid C, transfer valve body and the transfer pipe.
CAUTION: -
Take out the inlet filter.
-
Do not damage the O-ring.
-
Be careful not to bend the pipe.
3.
Take out the roller bearing with ST.
ST 398527700 Puller or equivalent.
