Extension

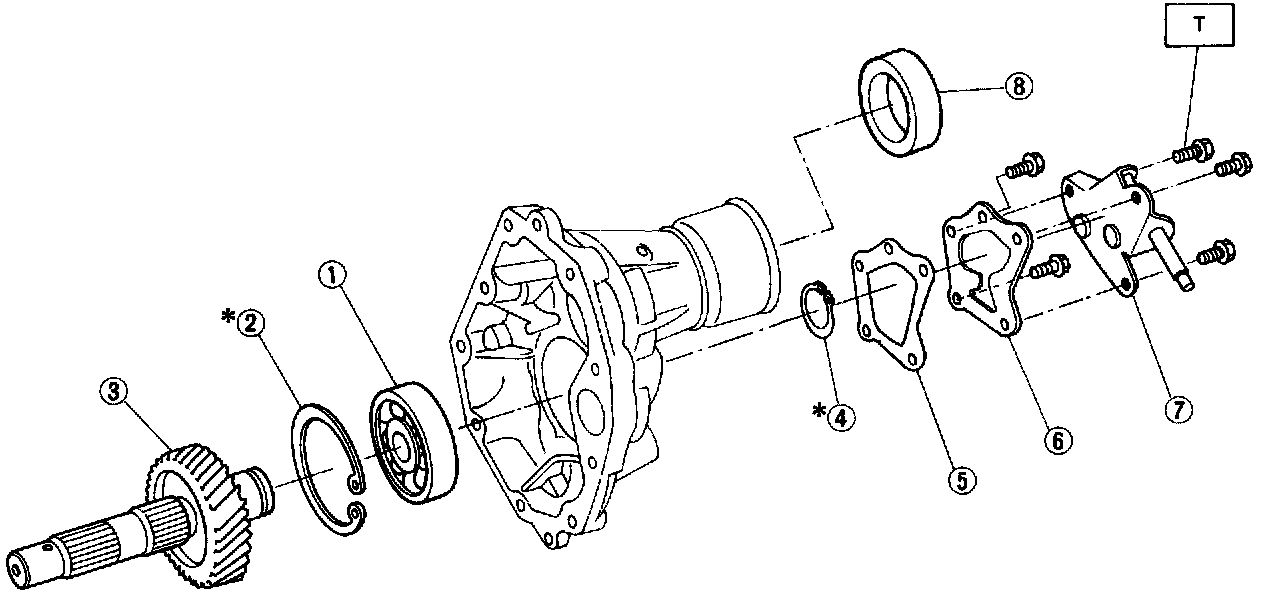

1. EXTENSION

Tightening torque: N.m (kg-m, ft.lb)
T: 25 ± 2 (2.5 ± 0.2, 18.1 ± 1.4)

1) Installation of ball bearing (1) and selection of snap ring (2) (Inner-72)
(1) Attach ball bearing (1) (30 x 72 x 17) to extension and install snap ring (2).





(2) Measure clearance between snap ring (2) and outer race of ball bearing (1) with a thickness gauge.

CAUTION: Replace ball bearing with a new one.

Clearance: 0-0.15 mm (0 - 0.0059 in)





(3) If the measurement is not within the specification, select suitable snap ring (2).





2) Installation of transfer drive gear (3) Press transfer drive gear into inner race of ball bearing.





3) Selection of snap ring (4) (Outer-30)
(1) Install snap ring (4) on transfer drive shaft.
(2) Measure clearance between snap ring and inner race of ball bearing with a thickness gauge.

Clearance: 0 - 0.15 mm (0 - 0.0059 in)





(3) If the measurement is not within the specification, select suitable snap ring.





4) Install extension cover (6), gasket (5) and shift bracket (7).

CAUTION: Use new gasket.

5) Install oil seal (8) with ST. ST 498057300 INSTALLER

CAUTION: Use new oil seal.
