EGR Backpressure Transducer: Service and Repair
1)

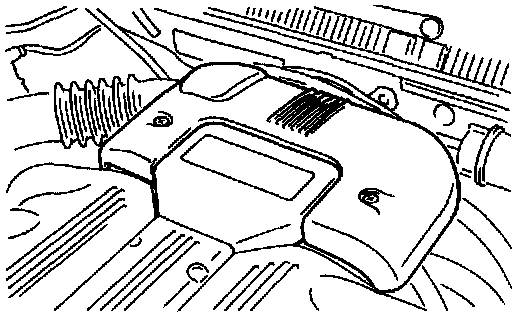

Remove collector cover.
2)

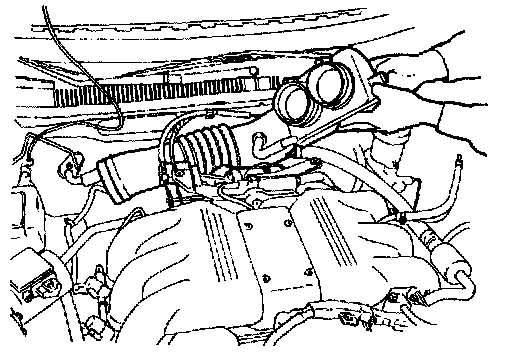

Remove air intake duct.
3)
Disconnect engine harness connectors.
4)
Remove bolt from engine harness connector bracket, then position the bracket away from its original position.
5)

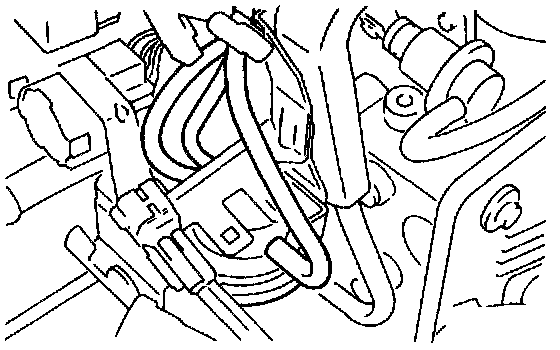

Disconnect vacuum hoses from BPT.
6)
Remove BPT from bracket.
7)
Installation is in the reverse order of removal.
