Mode FA1 - ON-Off Signal List (Switch Test) 2

MODE FA1 - SWITCH TEST 2 (SW2)








DISPLAY

Reference values

(1) Lights up when the N or P range is selected (No. 1).
(2) Lights up when the R range is selected (No. 2).
(3) Lights up when the D range is selected (No. 3).
(4) Lights up when the 3 range is selected (No. 4).
(5) Lights up when the 2 range is selected (No. 5).
(6) Lights up when the 1 range is selected (No. 6).
(7) Lights up when the manual switch is turned ON (No. 7).
If each LED does not illuminate with the above conditions, [1][2]inhibitor switch malfunction may occur. Perform diagnostics on inhibitor switch.

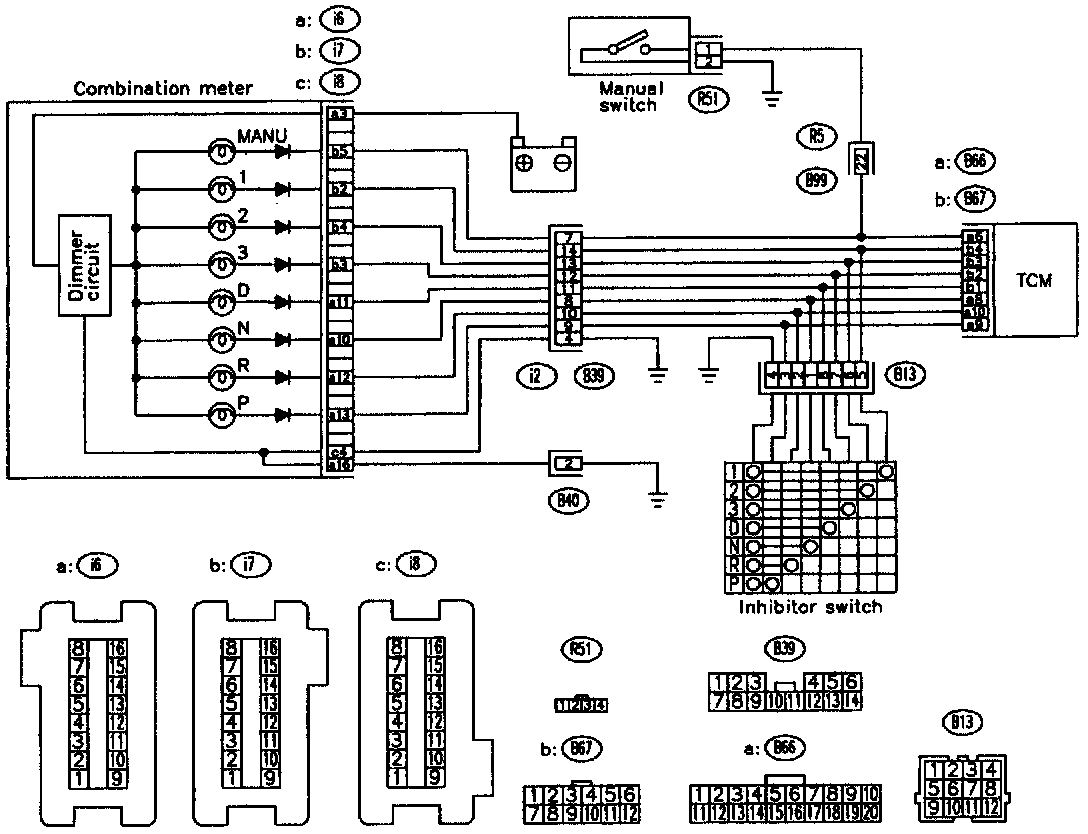

WIRING DIAGRAM
