Ignition Cable: Testing and Inspection

Spark Plug Cord

Check for:
1. Damage to cords, deformation, buring or rust formation of terminals

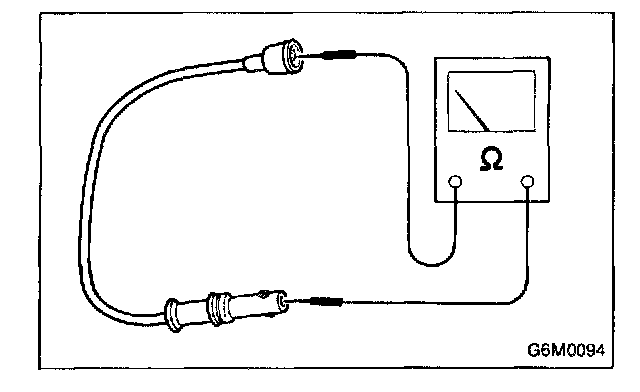

2. Resistance values of cords

Resistance value:

1800 cc model
#1 and #3 cords 4.95 - 11.56 kOhm
#2 cord 4.86 - 11.33 kOhm
#4 cord 5.24 - 12.23 kOhm

2200 cc model
5.12 - 12.34 kOhm
