Front Seat

A: ADJUSTMENT




- The height of each headrest is adjustable to 4 positions at 20 mm (0.79 in) steps.
- The angle of each backrest is adjustable to 29 positions at 20 steps.
- The front seat can be slid back and forth to one of 15 positions at 13.5 mm (0.53 in) steps.

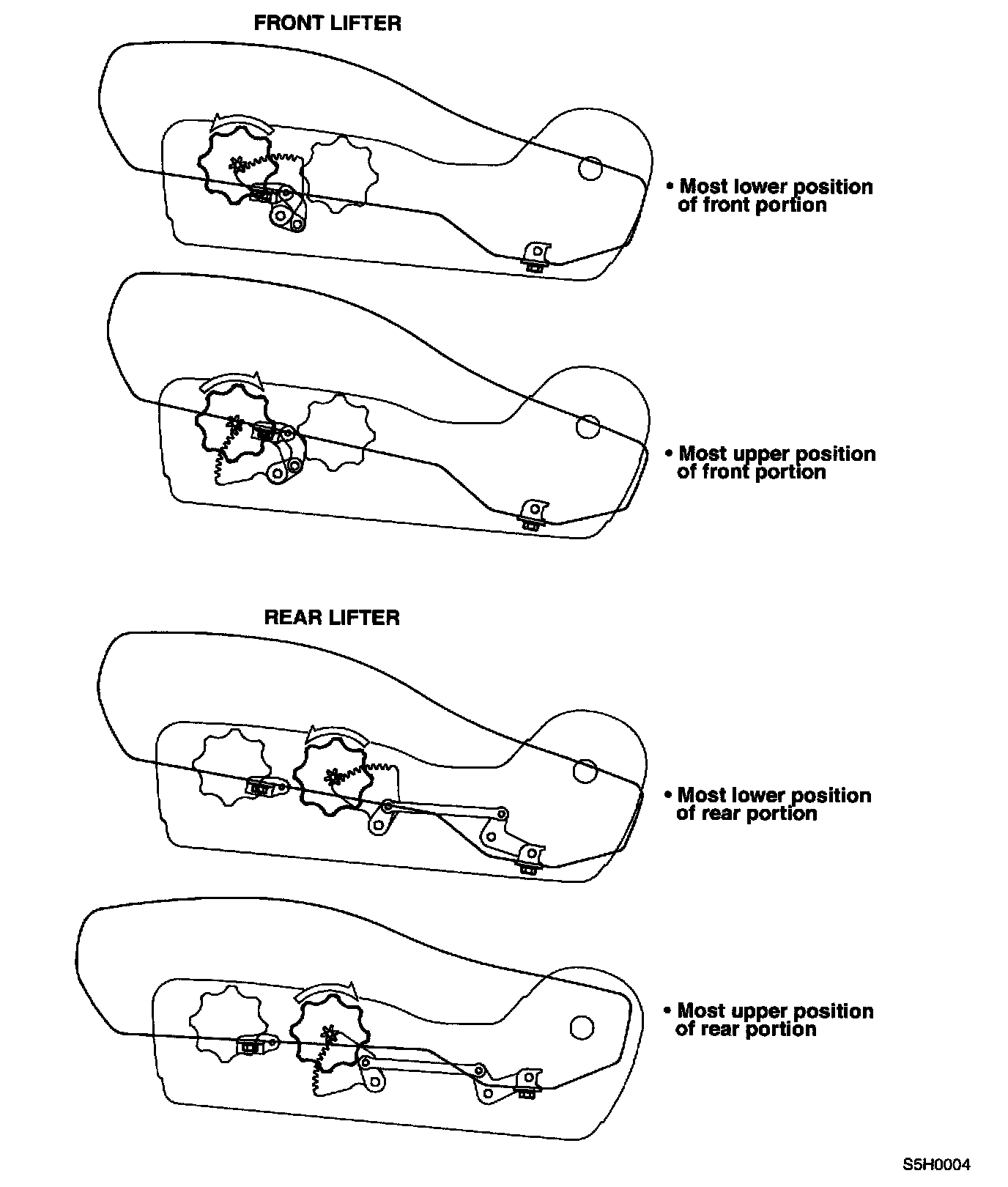

B: SEAT LIFTER
- When the front lifter adjustment dial is rotated, the front portion of seat cushion can be adjusted to the desired height.
- When the rear lifter adjustment dial is rotated, the rear portion of seat cushion can be adjusted to the desired height.




C: LUMBAR SUPPORT
The lumbar support adjustment lever can set the loin supporting section of the backrest to free position in the fore-and-aft direction.
