A/T Oil Temp Indicator Light

A/T OIL TEMP INDICATOR LIGHT

Steps 7A1 - 7A2:

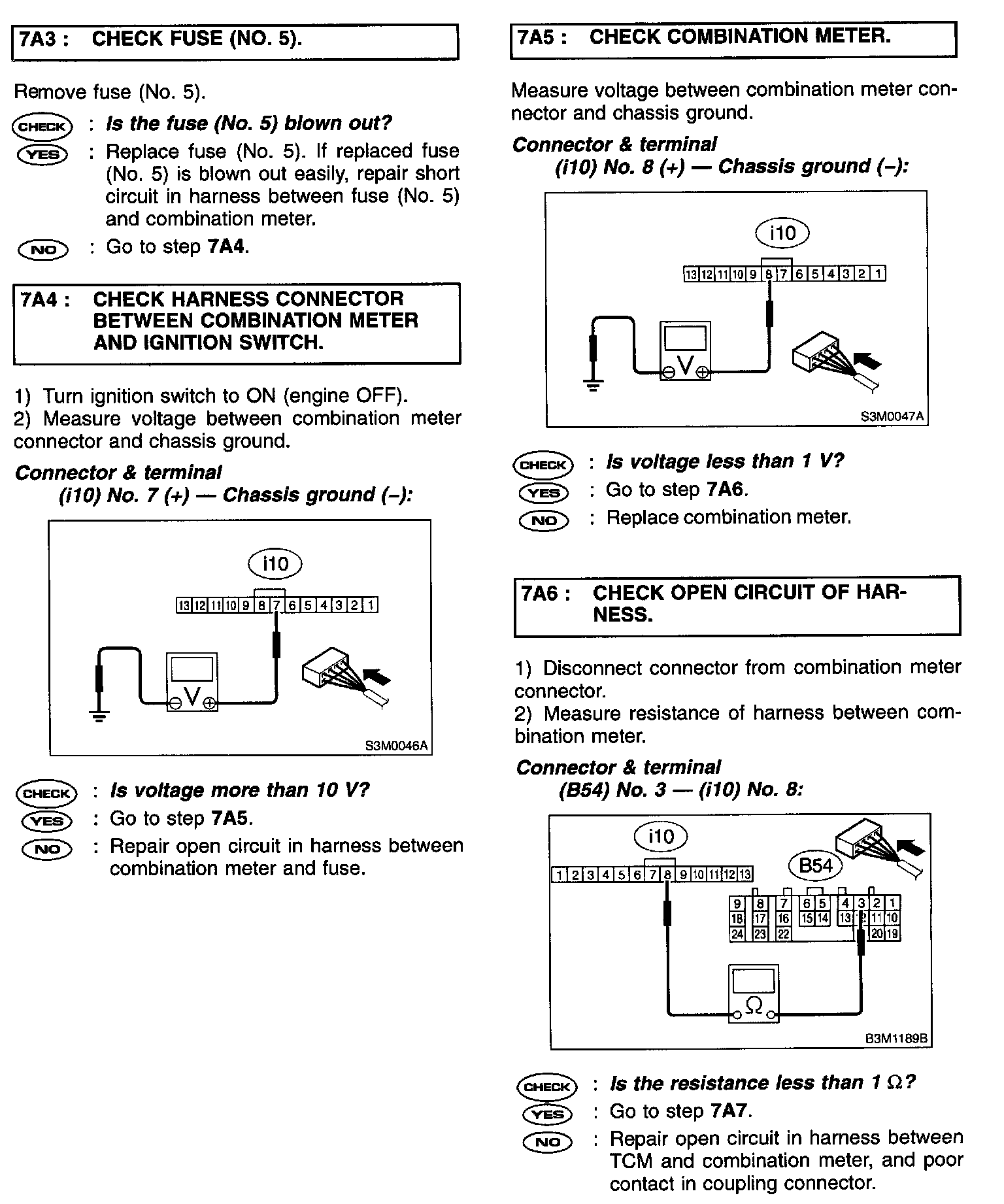

Steps 7A3 - 7A6:

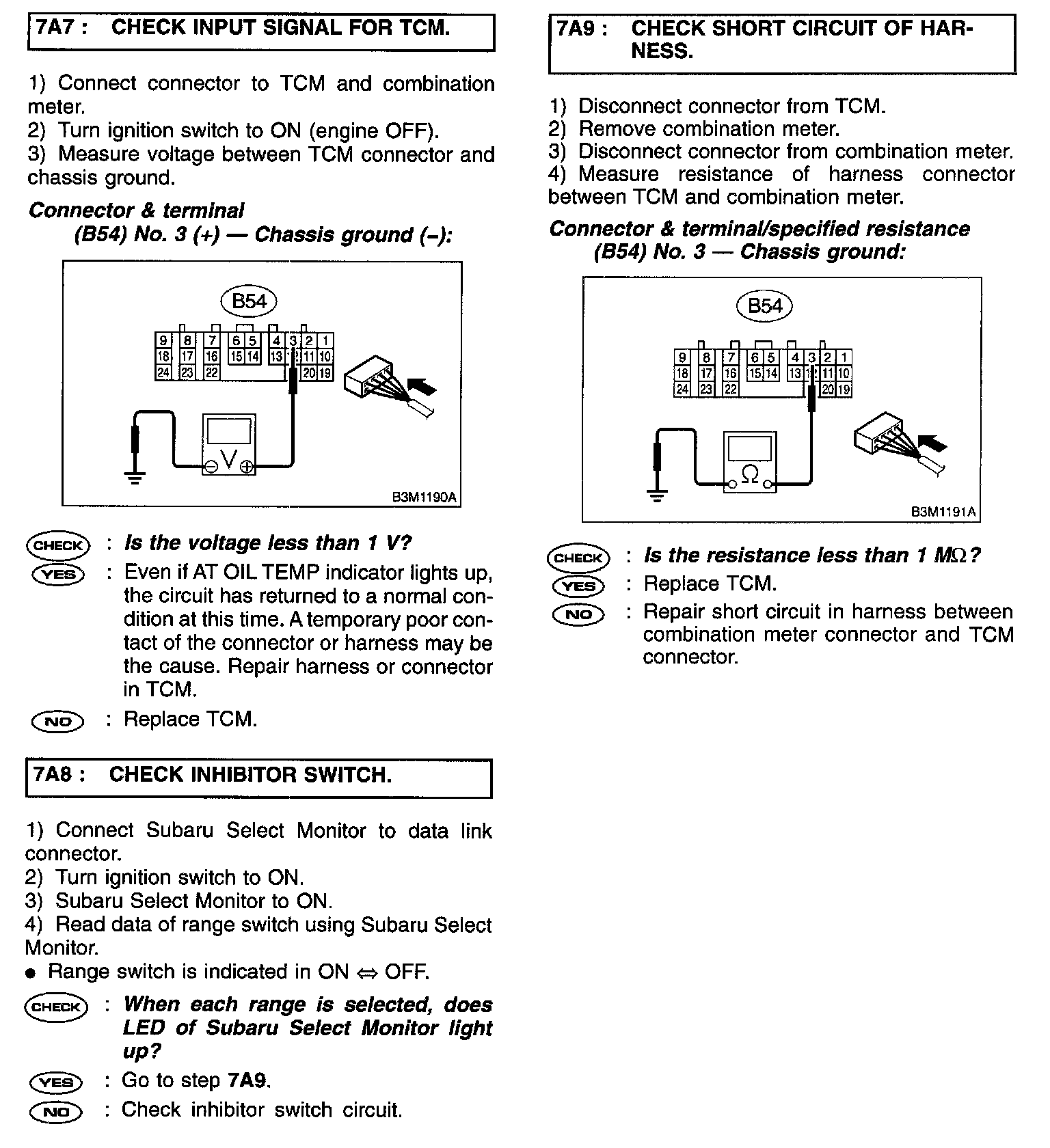

Steps 7A7 - 7A9:





DIAGNOSIS:
The AT OIL TEMP indicator light circuit is open or shorted.

TROUBLE SYMPTOM:
When ignition switch is turned to ON (engine OFF), AT OIL TEMP indicator light does not illuminate. When on-board diagnostics is performed, AT OIL TEMP indicator light remains illuminated.

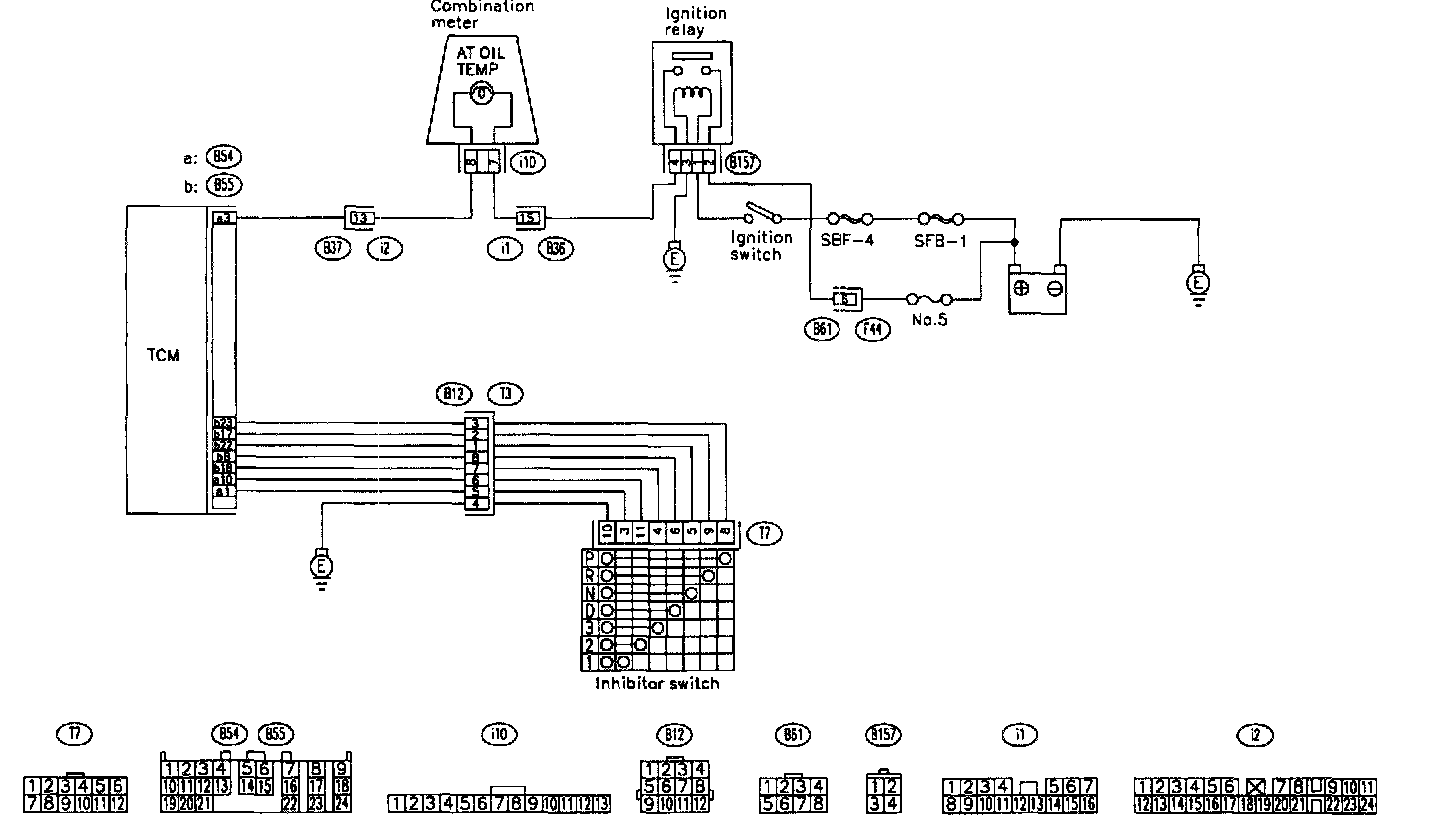

WIRING DIAGRAM:
