Check "3" Range Switch

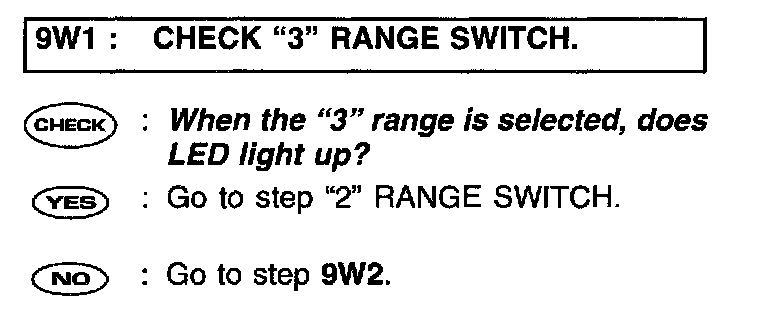

CHECK "3" RANGE SWITCH Step 9W1:

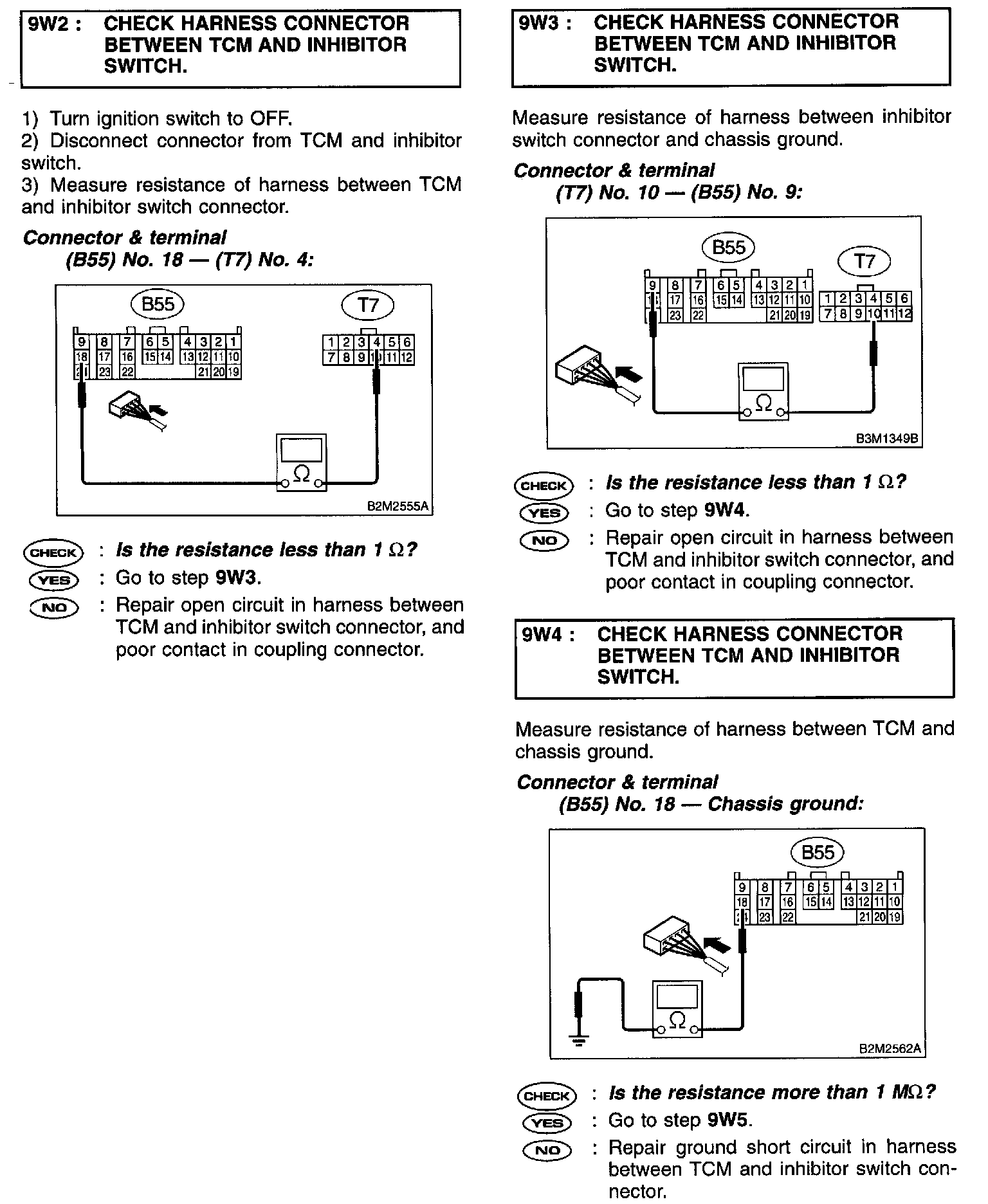

Steps 9W2 - 9W4:

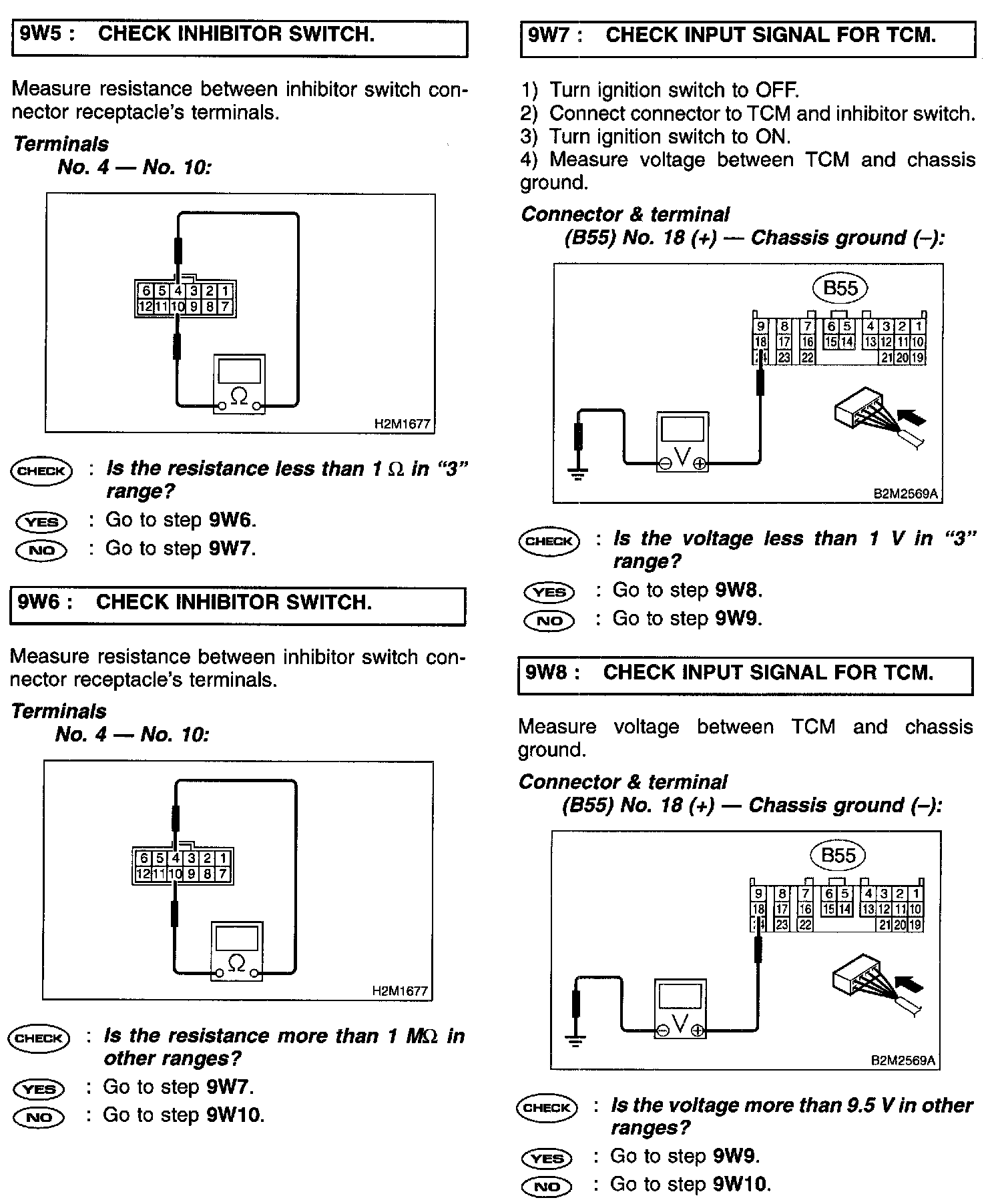

Steps 9W5 - 9W8:

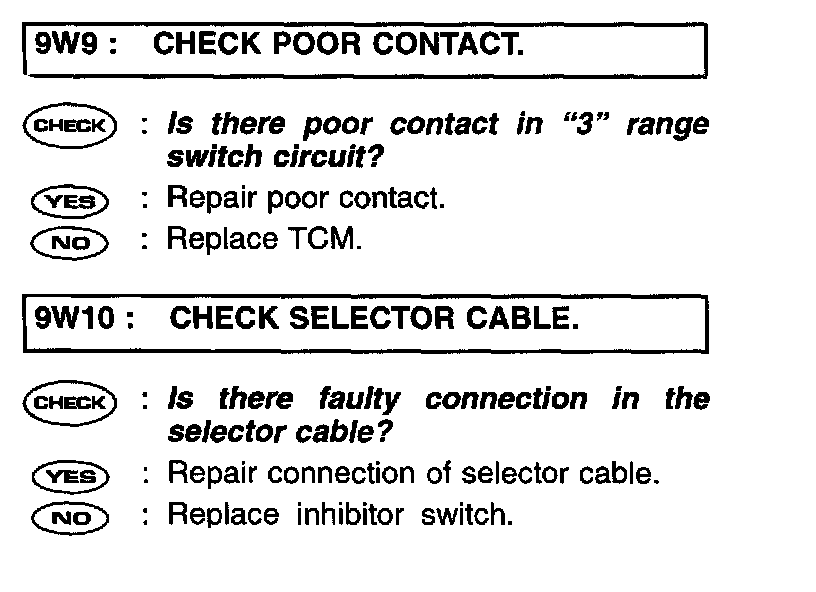

Steps 9W9 - 9W10:
DIAGNOSIS: Input signal circuit of "3" range is open or shorted.
TROUBLE SYMPTOM: ^
Shift characteristics are erroneous.
^
Engine brake is not effected when selector lever is. in "3" range.
WIRING DIAGRAM:
