Check "D" Range Switch

CHECK "D" RANGE SWITCH

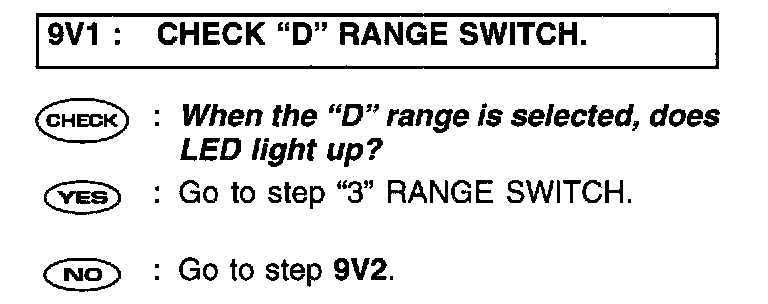

Step 9V1:

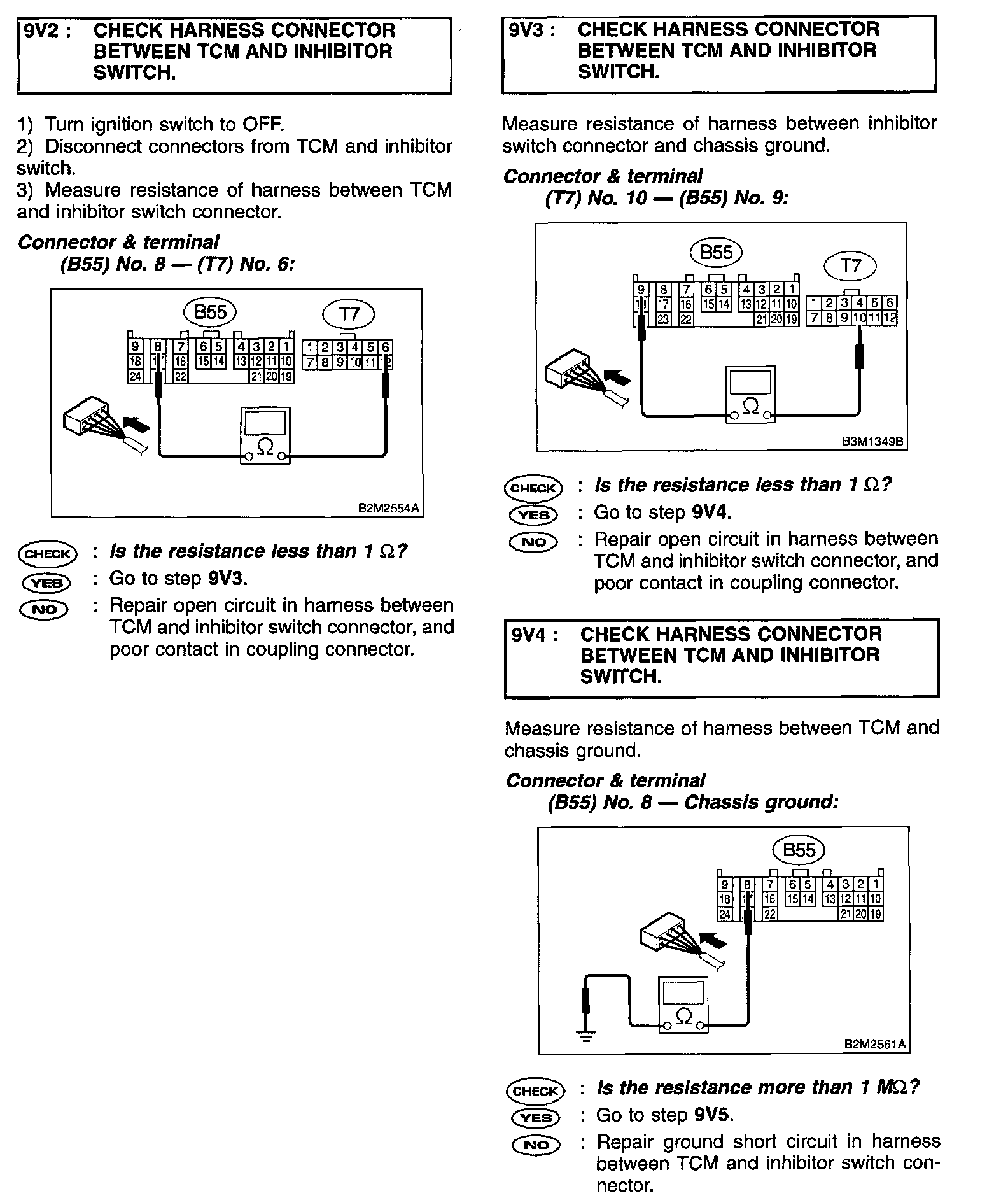

Steps 9V2 - 9V4:

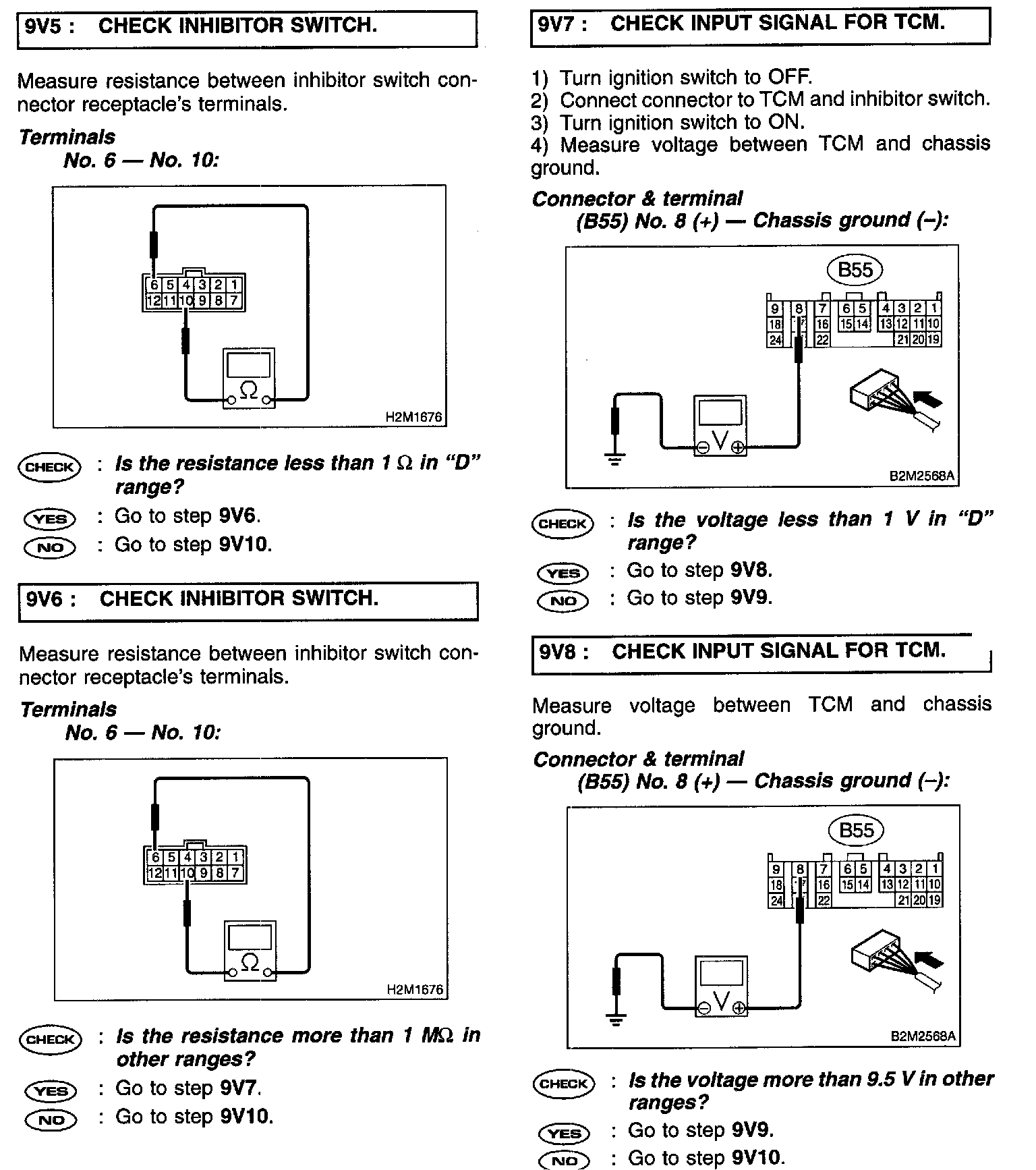

Steps 9V5 - 9V8:




Steps 9V9 - 9V10:





DIAGNOSIS:
Input signal circuit of "D" range is open or shorted.

TROUBLE SYMPTOM:
Shift characteristics are erroneous.

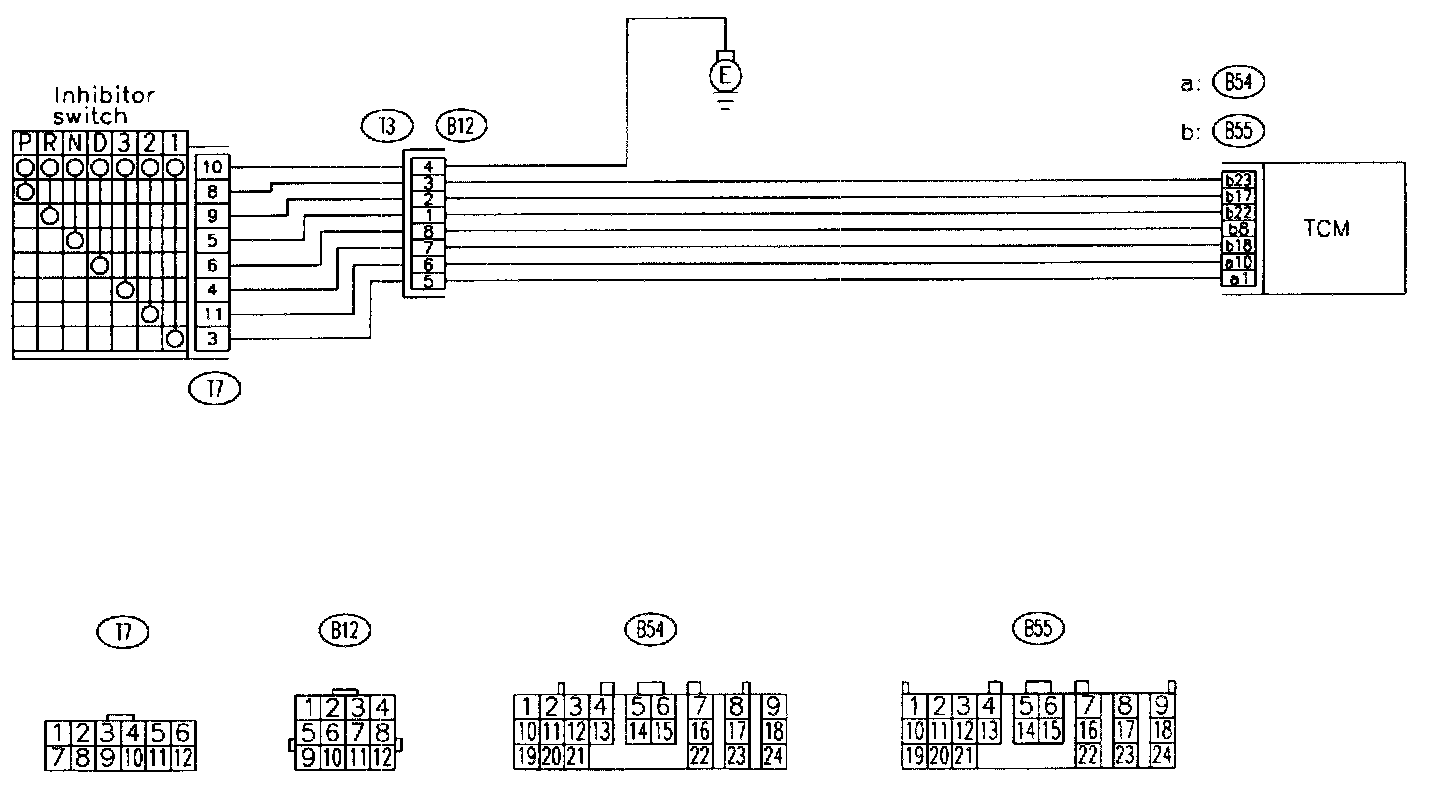

WIRING DIAGRAM:
