Check "R" Range Switch

CHECK "R" RANGE SWITCH

Step 9U1:

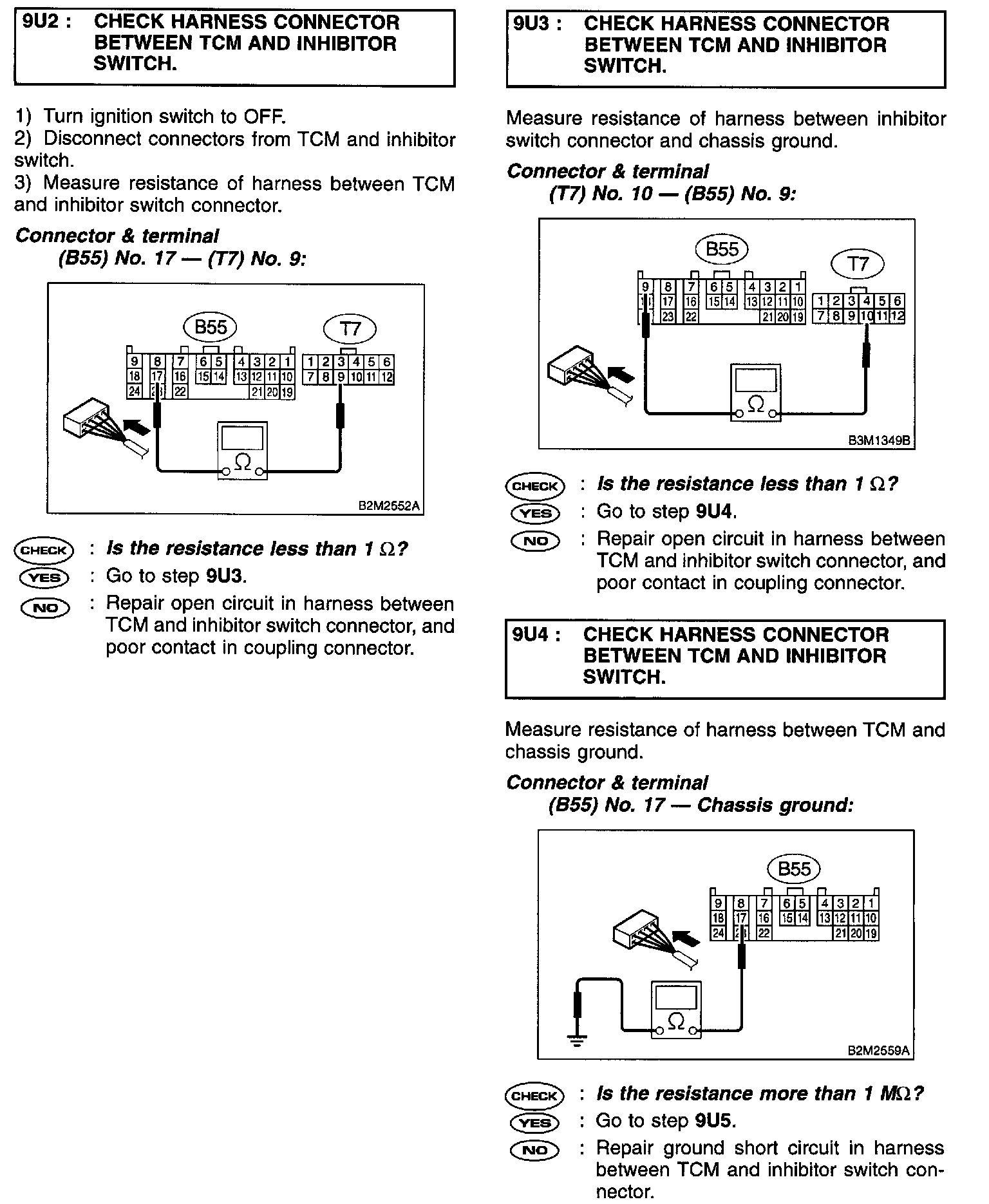

Steps 9U2 - 9U4:

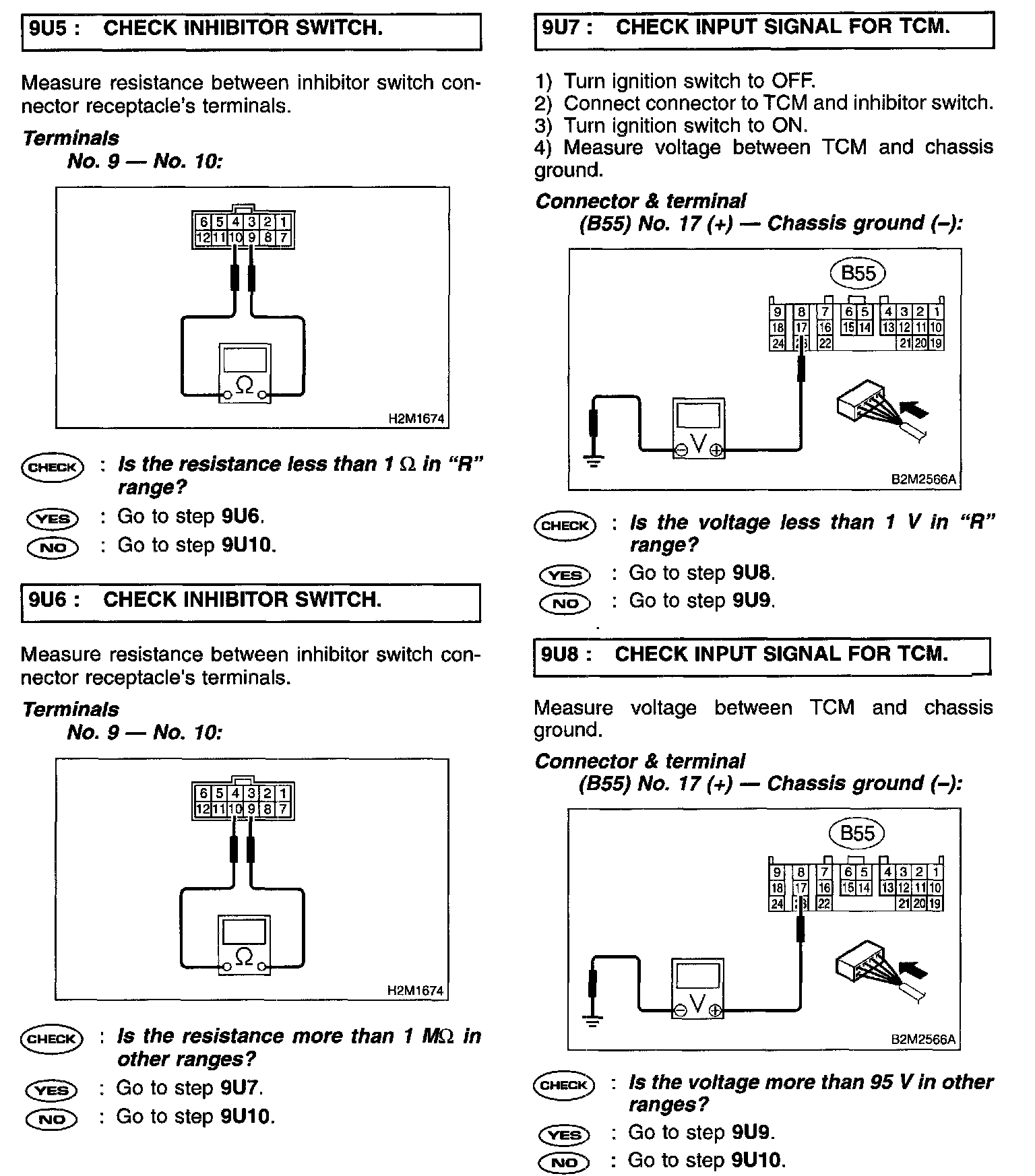

Steps 9U5 - 9U8:

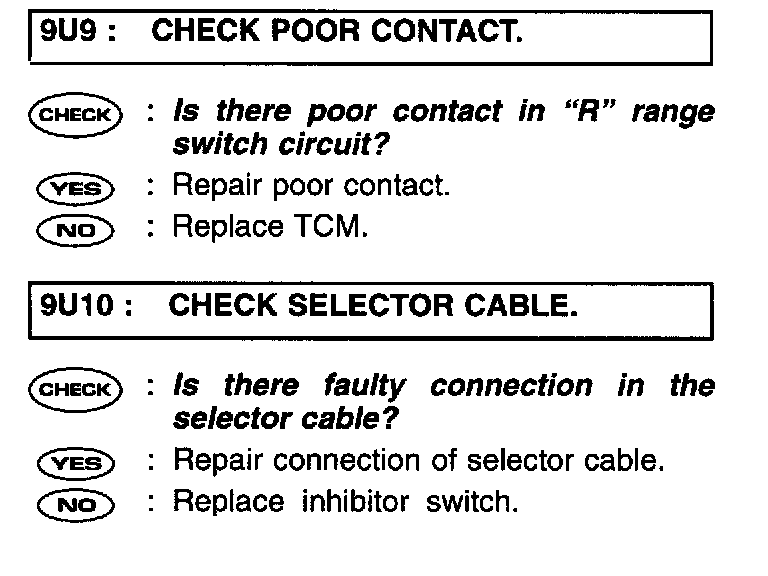

Steps 9U9 - 9U10:





DIAGNOSIS:
Input signal circuit of "R" range is open or shorted.

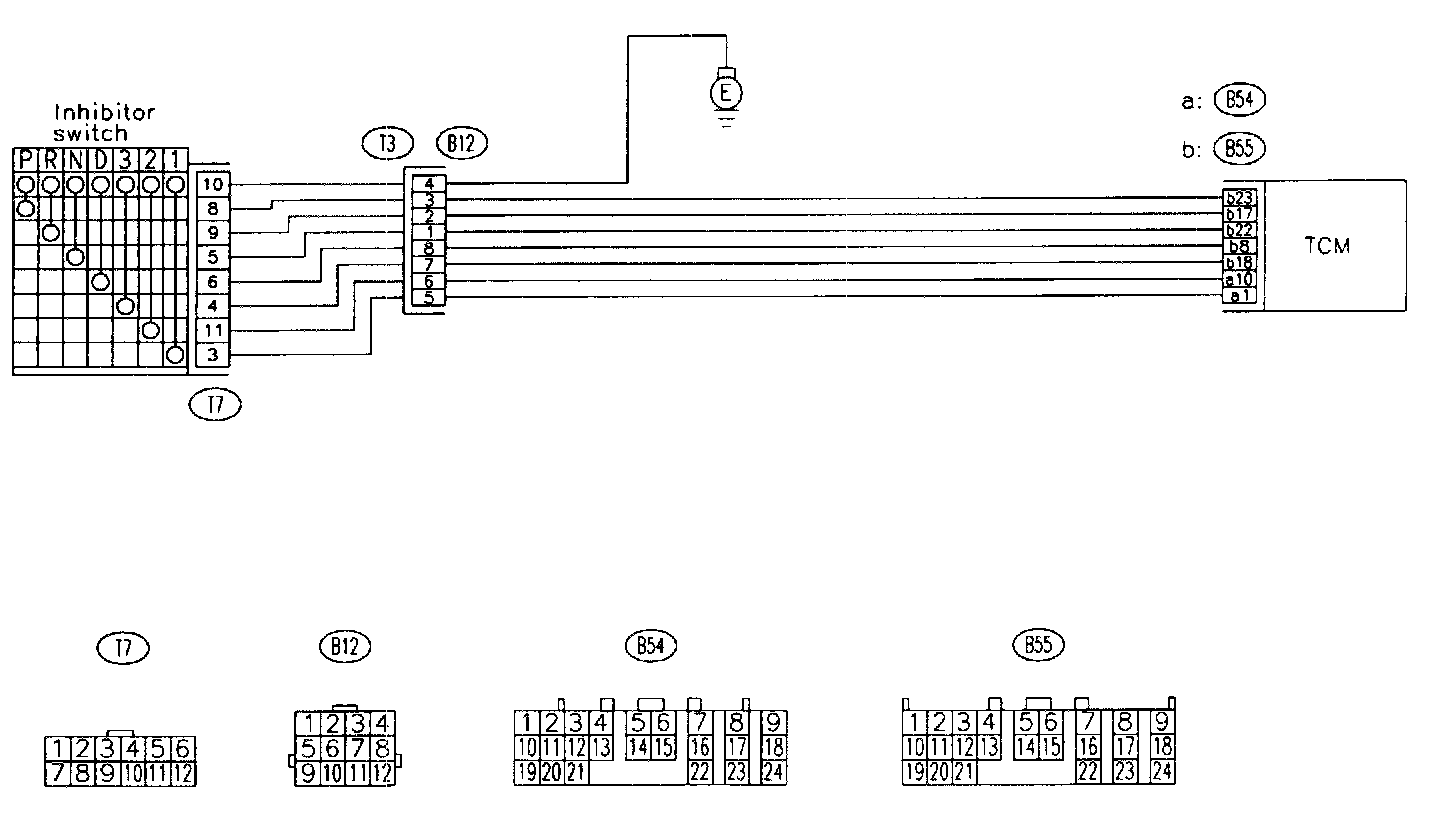

WIRING DIAGRAM:
