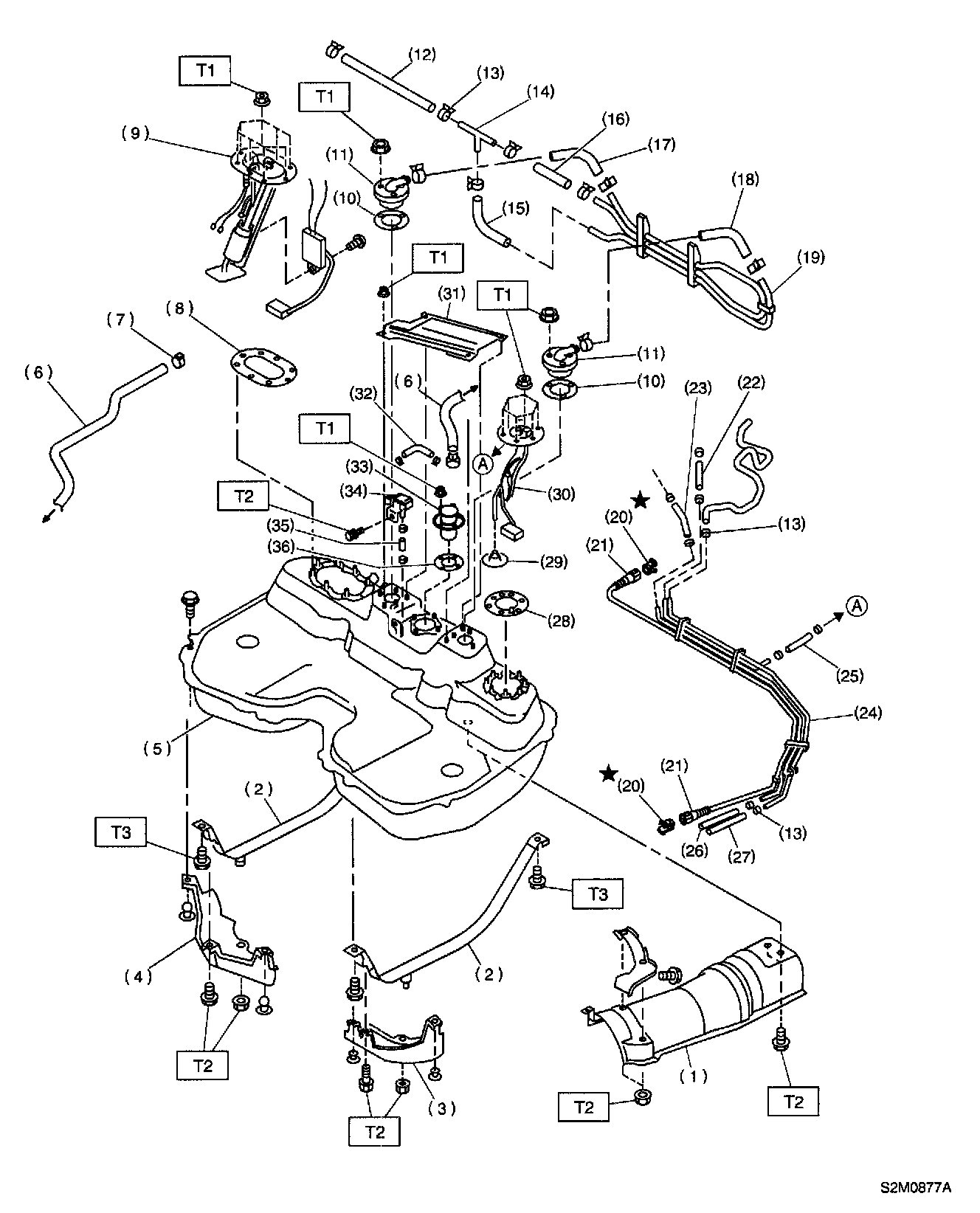

Fuel Tank

1. Heat sealed cover
2. Fuel tank band
3. Protector LH
4. Protector RH
5. Fuel tank
6. Canister hose A
7. Clamp
8. Fuel pump gasket
9. Fuel pump ASSY
10. Fuel cut valve gasket
11. Fuel cut valve
12. Fuel delivery hose A
13. Clip
14. Joint pipe
15. Evaporation hose C
16. Evaporation hose B
17. Evaporation hose D
18. Evaporation hose E
19. Evaporation pipe ASSY
20. Retainer
21. Quick connector
22. Jet pump hose A
23. Fuel return hose A
24. Fuel pipe ASSY
25. Jet pump hose B
26. Fuel return hose B
27. Evaporation hose F
28. Fuel sub meter gasket
29. Jet pump filter
30. Fuel sub meter unit
31. Protector cover
32. Vent valve hose
33. Vent valve
34. Fuel tank pressure sensor
35. Fuel tank pressure sensor hose
36. Vent valve gasket.

Tightening torque: Nm (kg.m, ft.lb)
T1: 4.4 ± 1.5 (0.45 ± 0.15, 3.3 ± 1.1)
T2: 7.4 ± 2.0 (0.75 ± 0.2, 5.4 ± 1.4)
T3: 33 ± 10 (3.4 ± 1.0, 25 ± 7)
