California Only

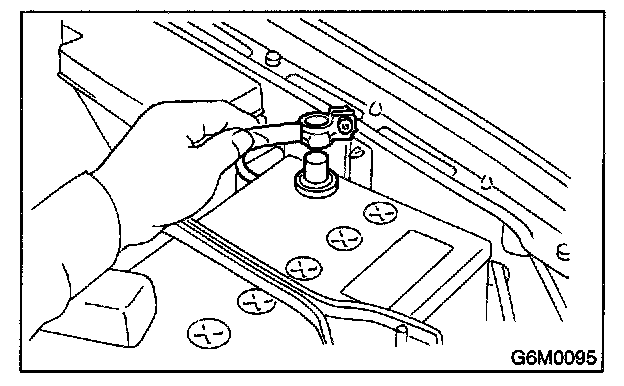

1. Disconnect battery ground cable.

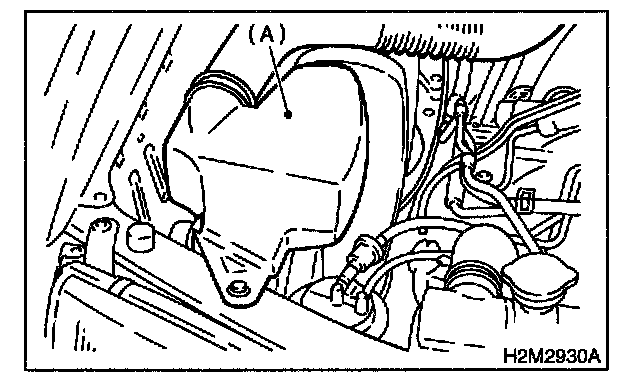

2. Remove bolt which installs air intake duct (A) on the front side of body.

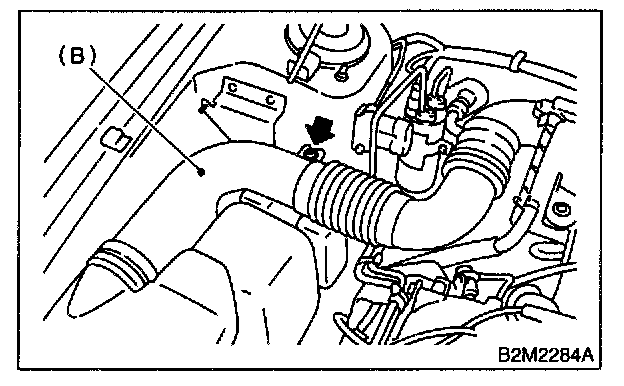

3. Remove bolt which installs air intake duct (B) on body.

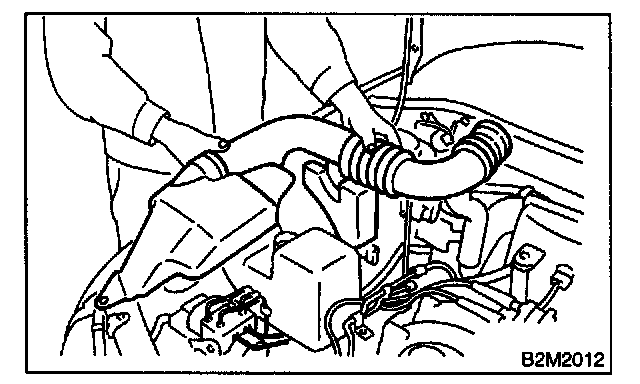

4. Remove air intake duct (A) and (B) as a unit.

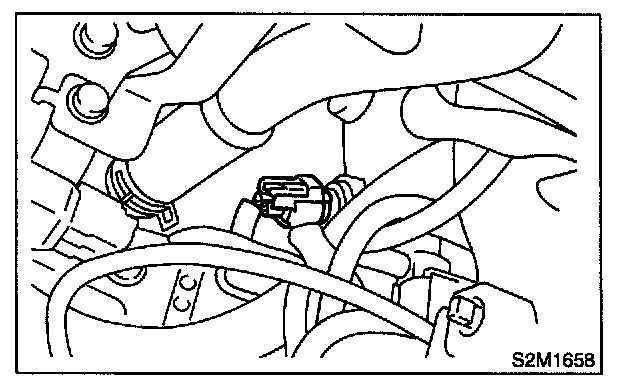

5. Disconnect connector from engine coolant temperature sensor.

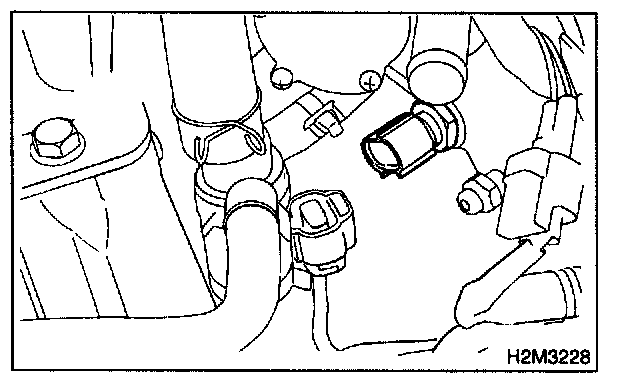

6. Remove engine coolant temperature sensor.
7. Installation is in the reverse order of removal.

Tightening torque:
25 ± 3 Nm (2.5 ± 0.3 kg.m, 18.1 ± 2.2 ft.lb)
