Part 1

BASIC DIAGNOSTICS CHART

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to "How to Clear Diagnostic Trouble Codes".

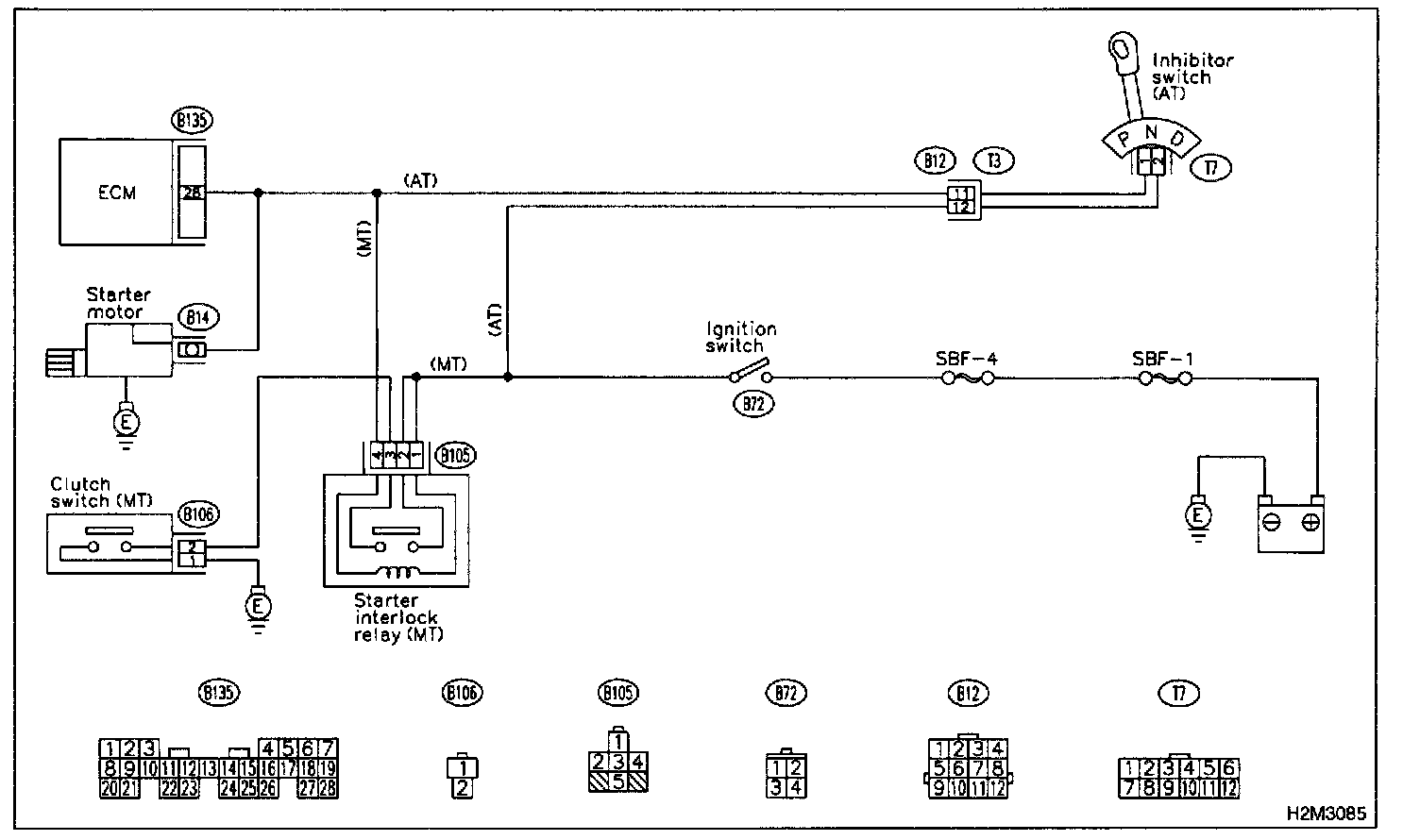

WIRING DIAGRAM

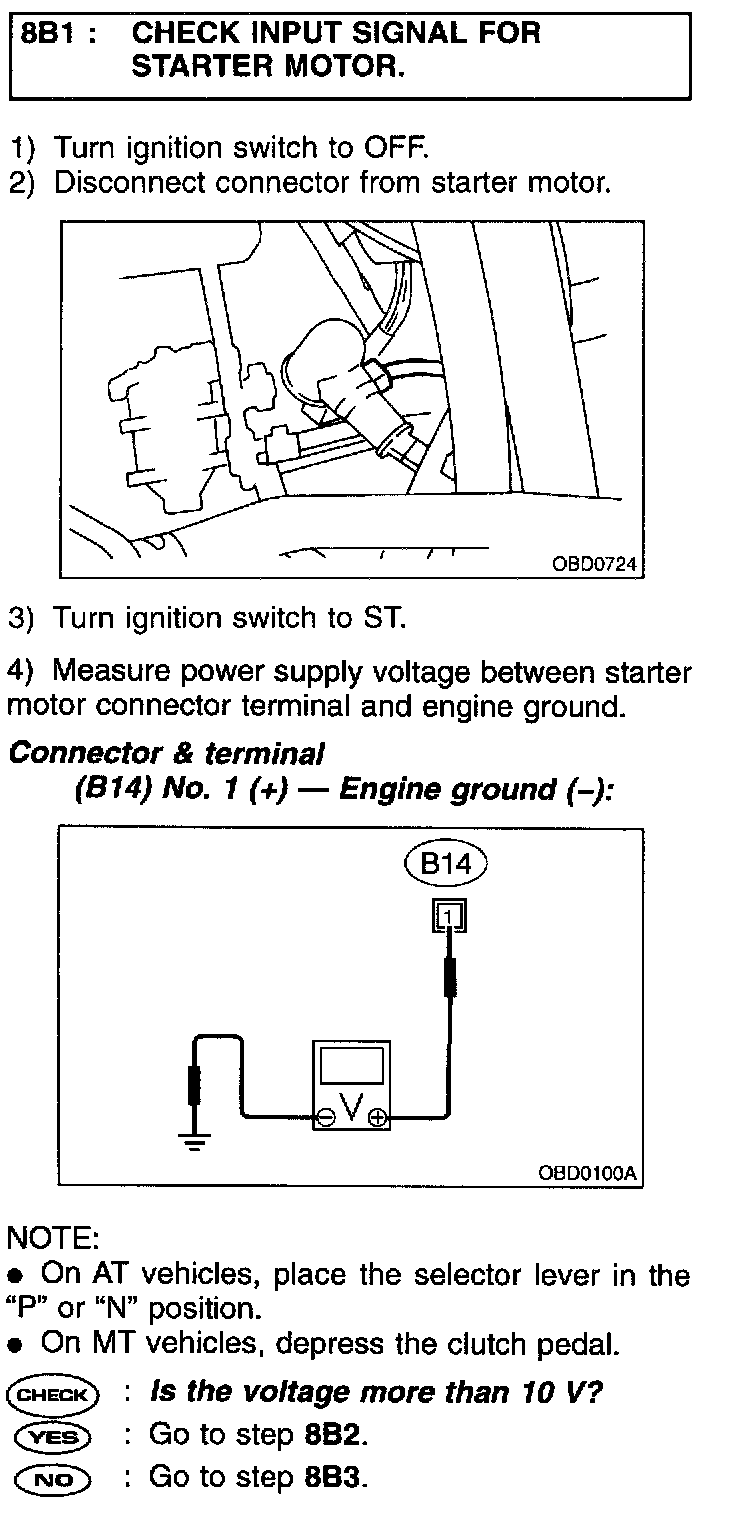

Step 8B1:

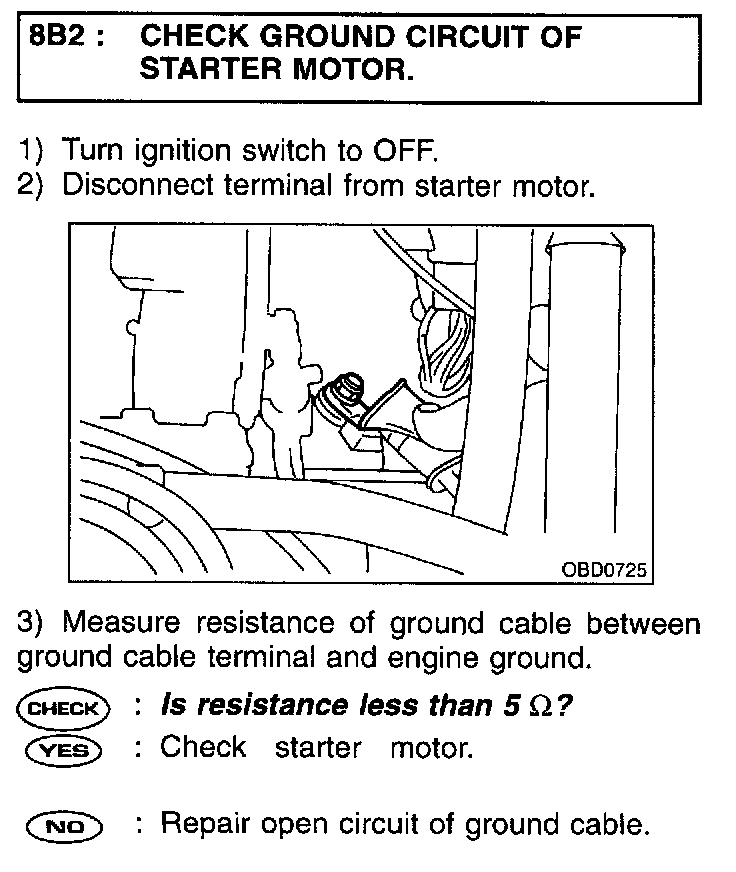

Step 8B2:

Step 8B3:

Step 8B4:

Step 8B5:

Step 8B6:

Step 8B7:

Step 8B8:

Step 8B9:

Step 8B10:

Step 8B11:

PROCEDURES

CONTROL MODULE POWER SUPPLY AND GROUND LINE

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to "How to Clear Diagnostic Trouble Codes".

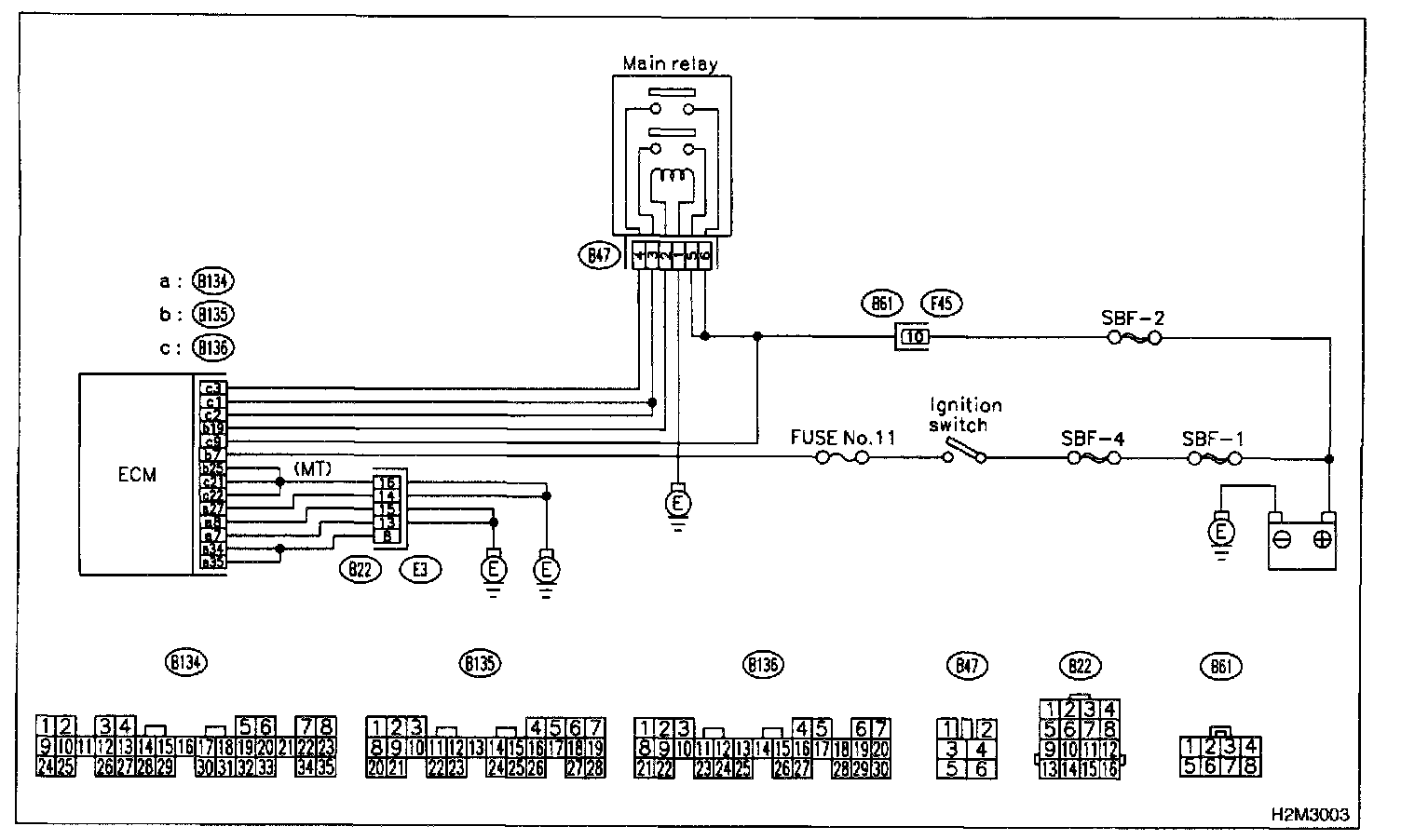

WIRING DIAGRAM

Step 8C1:

Step 8C2:

Step 8C3:

Step 8C4:

Step 8C5:

Step 8C6:

Step 8C7:

Step 8C8:

Step 8C9:

Step 8C10:

Step 8C11:

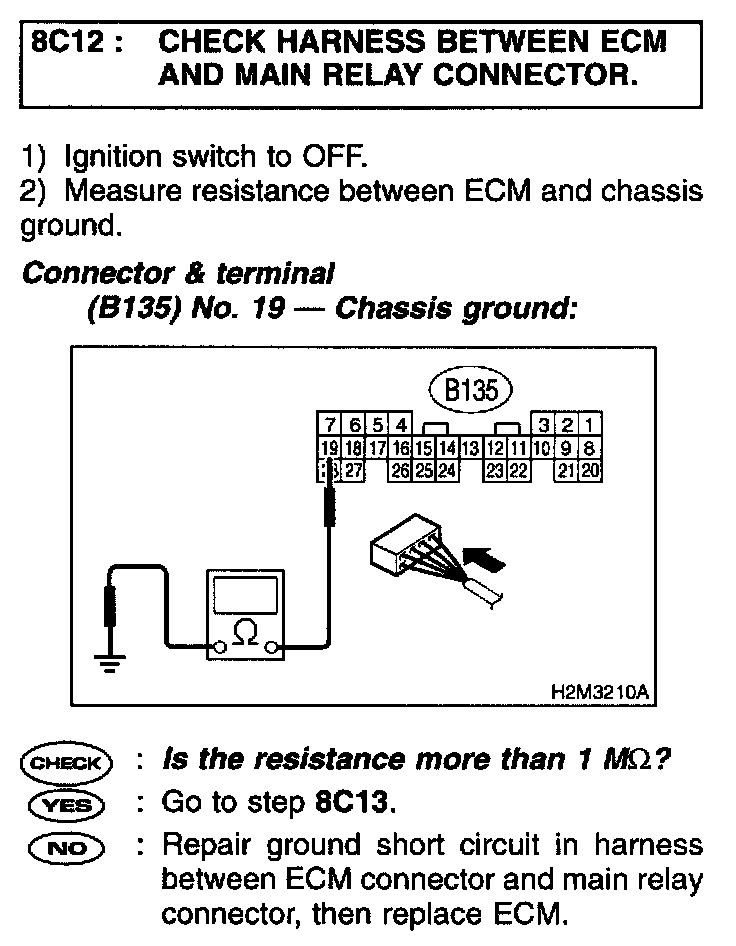

Step 8C12:

Step 8C13:

Step 8C14:

Step 8C15:

Step 8C16:

Step 8C17:

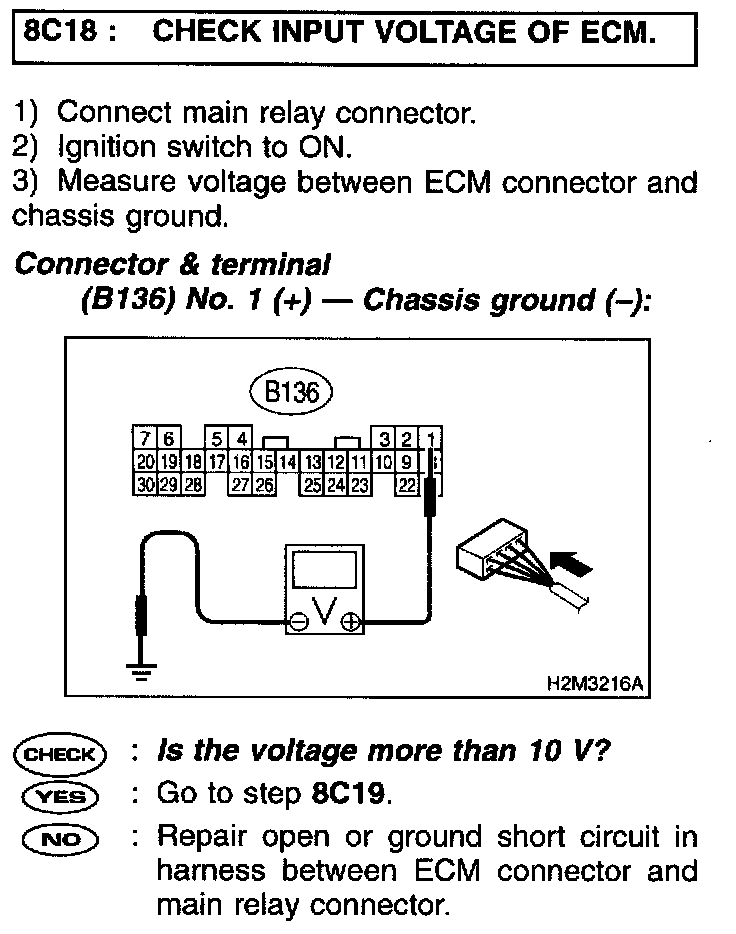

Step 8C18:

Step 8C19:

Step 8C20:

Step 8C21:

Step 8C22:

PROCEDURES
