Removal

1. Disconnect battery ground cable from battery ground terminal.

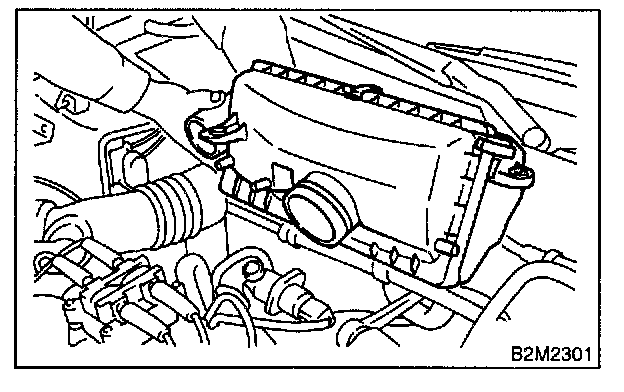

2. Remove air intake chamber.

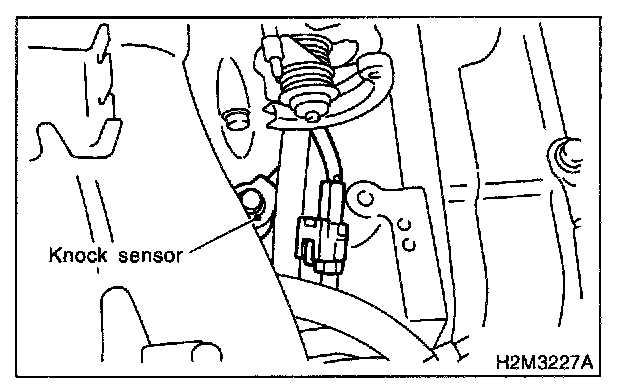

3. Remove band which holds knock sensor harness, and disconnect connector from knock sensor.

4. Remove knock sensor from cylinder block.
