Basic Diagnostics Procedure

Operation CHARM: Car repair manuals for everyone.

>> >> >> >> >> >> >> >> >> >>

Manuals through 2025 now available!

Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.

LEMON is the spiritual successor to CHARM, I recommend you try it!

Link: lemon-manuals.la or lemon-manuals.org.ua

(Some people have issue connecting. LEMON is investigating. For now, use Firefox or change your DNS server)

Or, hide this message: temporarily or permanently

pro multis · About Operation CHARM

Step 6A1:

Step 6A2:

Step 6A3:

Step 6A4:

Step 6A5:

Step 6A6:

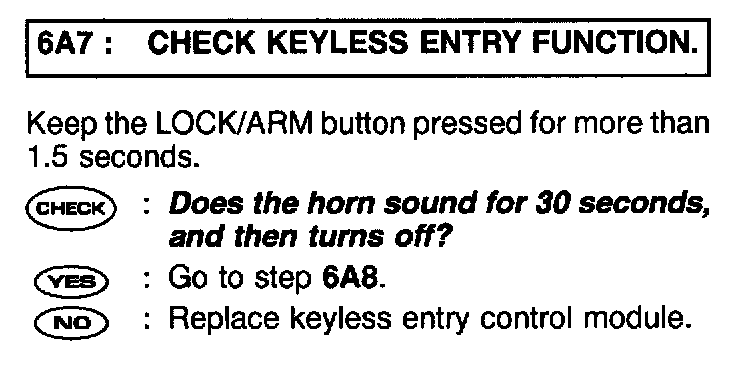

Step 6A7:

Step 6A8:

Step 6A9:

Step 6A10:

Step 6A11:

Step 6A12:

Step 6A13:

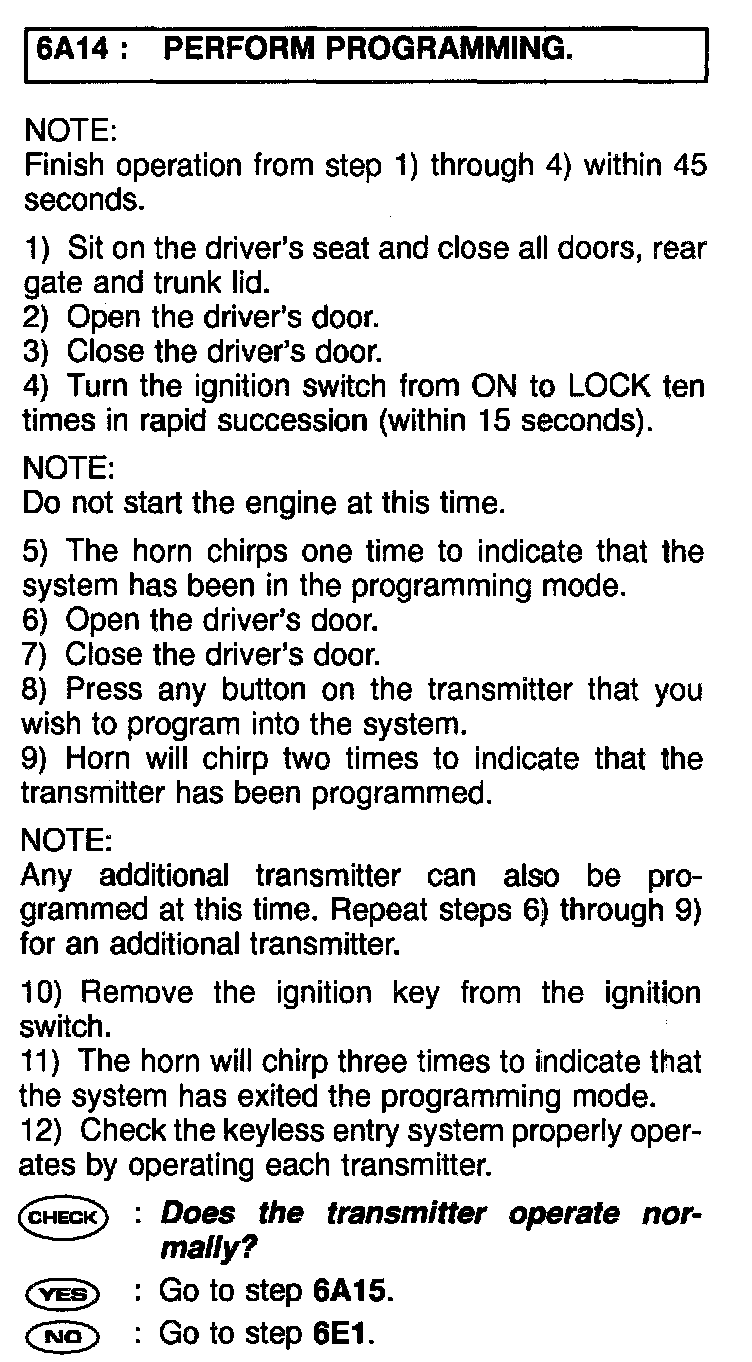

Step 6A14:

Step 6A15:
