Fluid Schematic Drawing

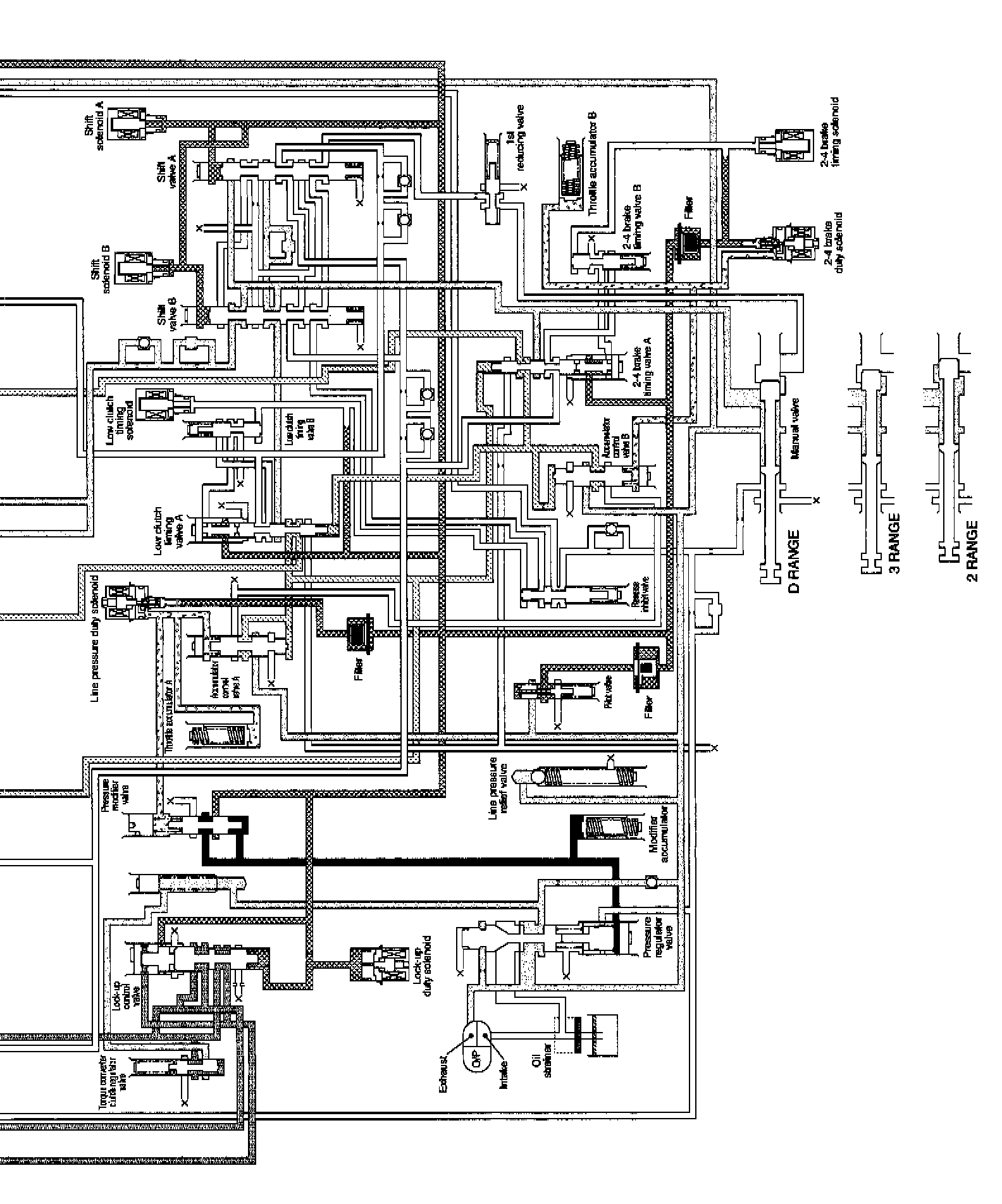

Schematic Drawing

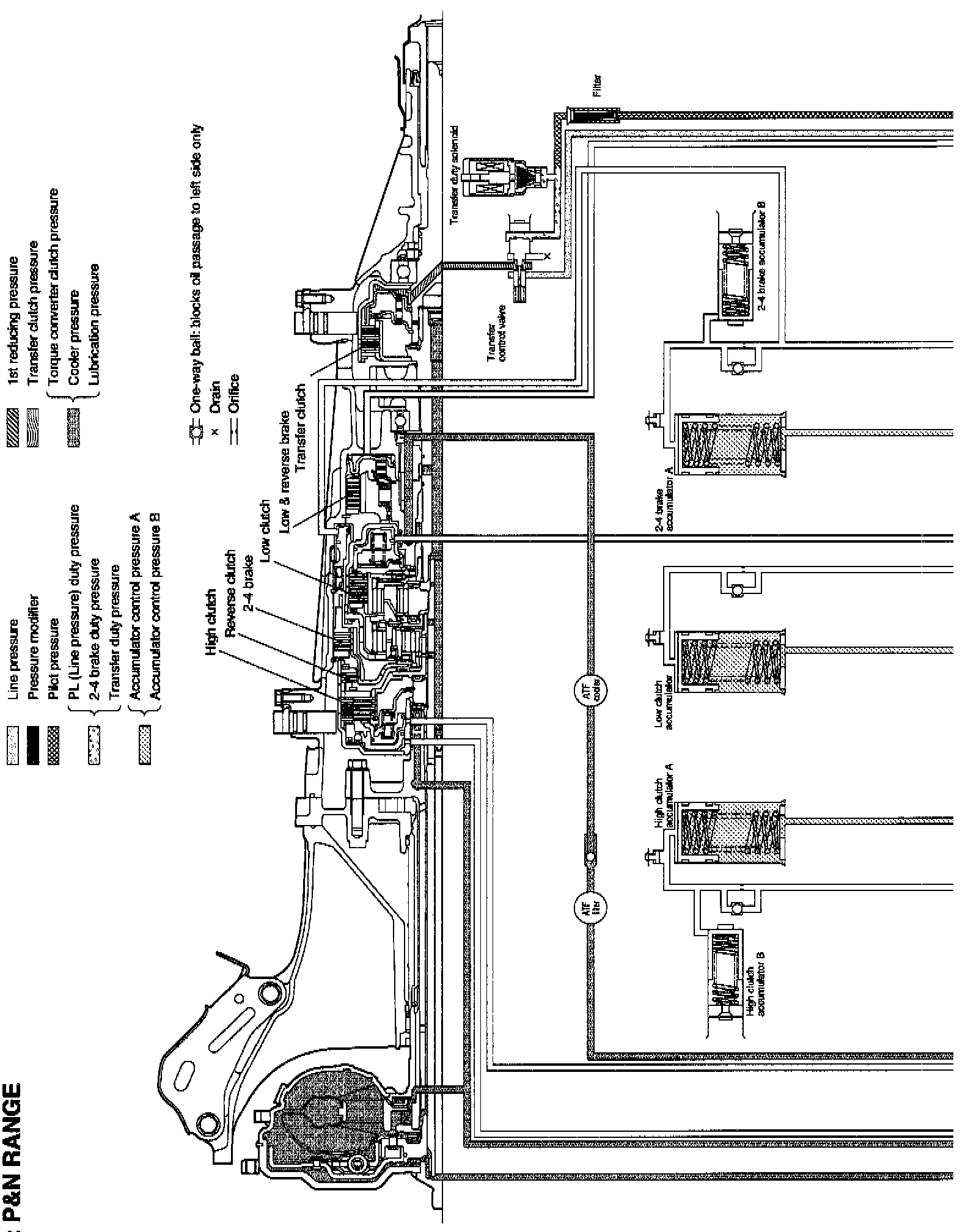

A: P & N RANGE

���*:

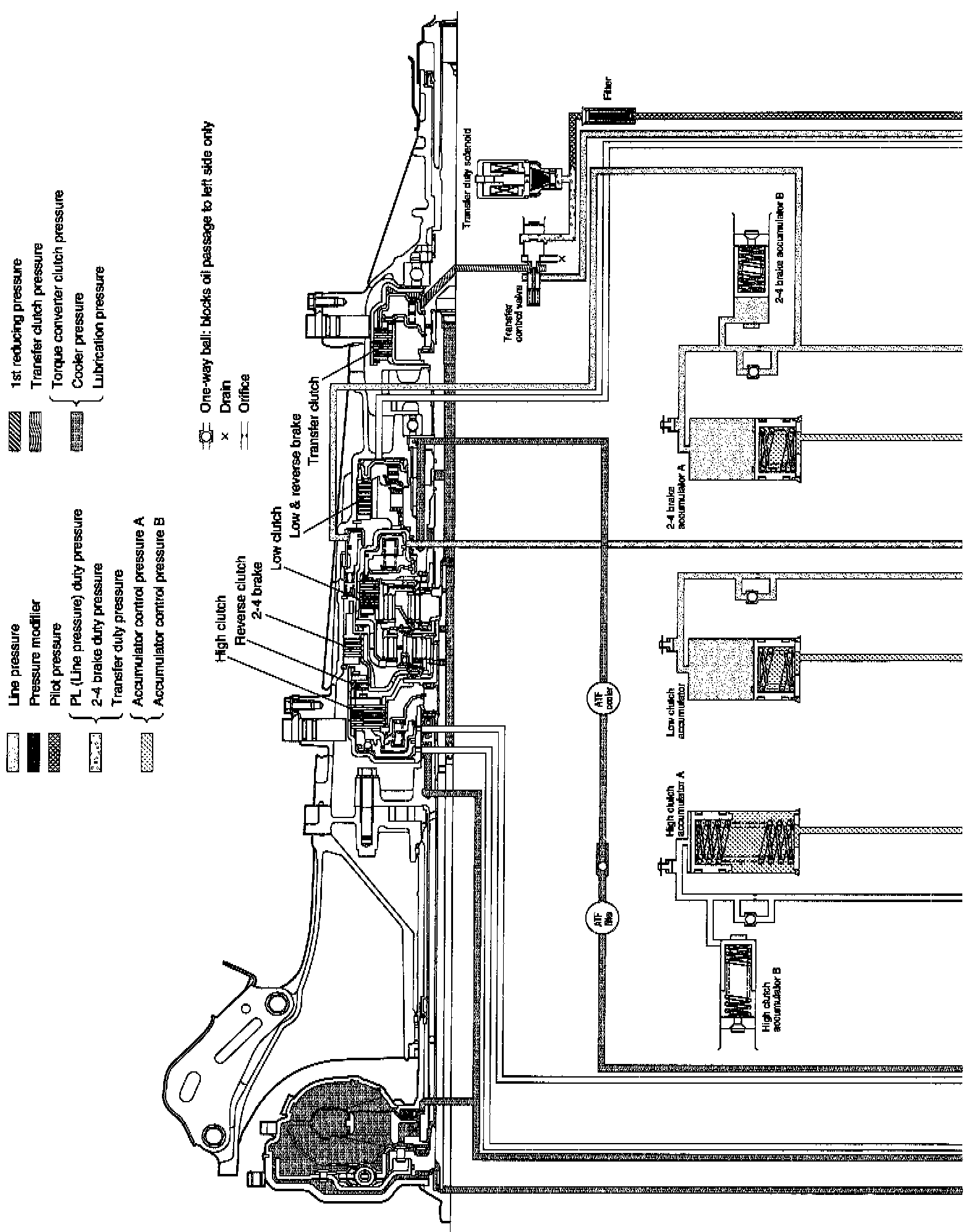

B: R RANGE








C: FOURTH SPEED OF D RANGE (LOCK UP OFF)








D: FOURTH SPEED OF D RANGE (LOCK UP ON)

�ښ*:








E: FOURTH SPEED OF D AND 3 RANGE








F: SECOND SPEED OF D, 3 AND 2 RANGE

_f�*:








G: FIRST SPEED OF D AND 3 RANGE








H: FIRST SPEED OF 1 RANGE
