Timing Belt: Description and Operation

2. Timing Belt

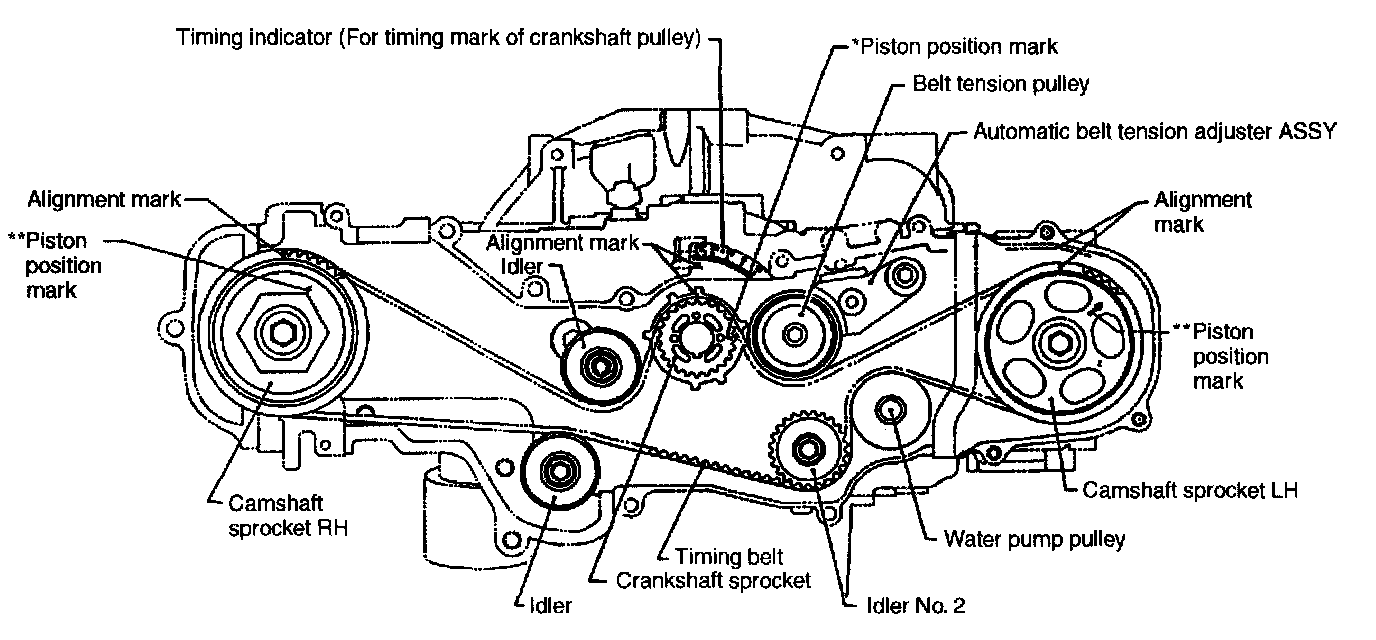

^ A single timing belt drives two camshafts (one in the left bank and one in the right bank). The back of the belt also drives the engine coolant pump.
^ The timing belt teeth have a specially designed round profile to provide quiet operation. The timing belt is composed of a strong and inflexible core wire, a wear-resistant canvas and heat-resistant rubber material.
^ A hydraulic automatic belt tension adjuster constantly maintains specified belt tension to properly drive the camshafts, as well as to provide a "maintenance-free" advantage.

NOTE:
^ * : #1 piston is set at TDC (Top Dead Center) when piston-position mark on crankshaft sprocket is aligned with mark on cylinder block.
^ ** : #1 piston is set at TDC (Top Dead Center) on compression stroke when piston-position mark on camshaft sprocket is aligned with mark on belt cover.
