Check 2-4 Brake Pressure Duty

O: CHECK 2-4 BRAKE DUTY SOLENOID.

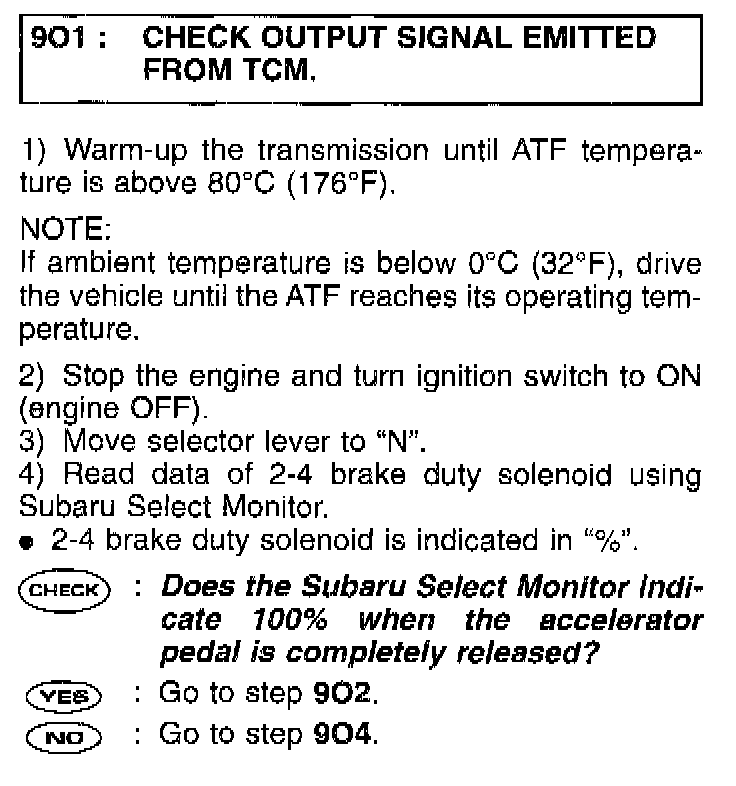

9O1: CHECK OUTPUT SIGNAL EMITTED FROM TCM.

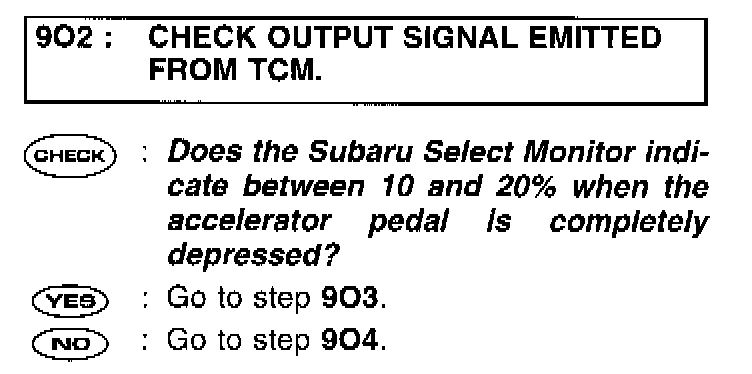

9O2 CHECK OUTPUT SIGNAL EMITTED FROM TOM.

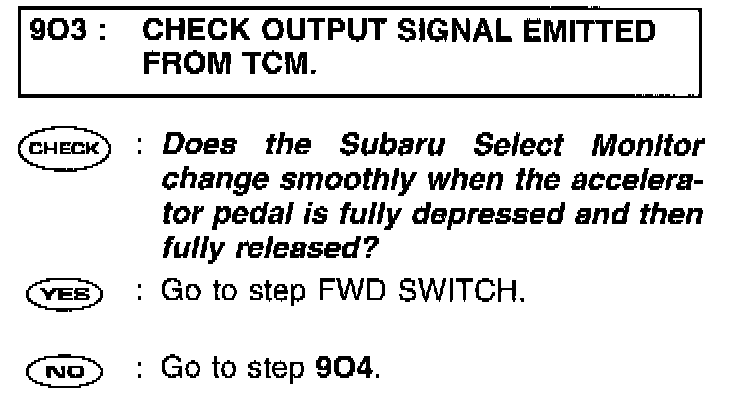

9O3 CHECK OUTPUT SIGNAL EMITTED FROM TOM.

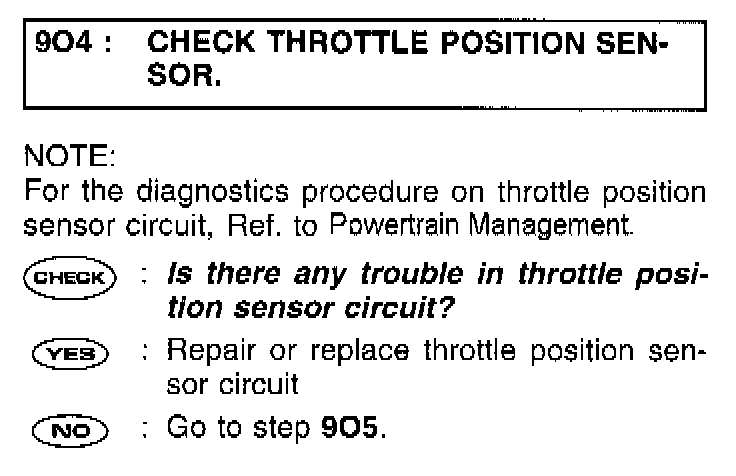

9O4 CHECK THROTTLE POSITION SENSOR.

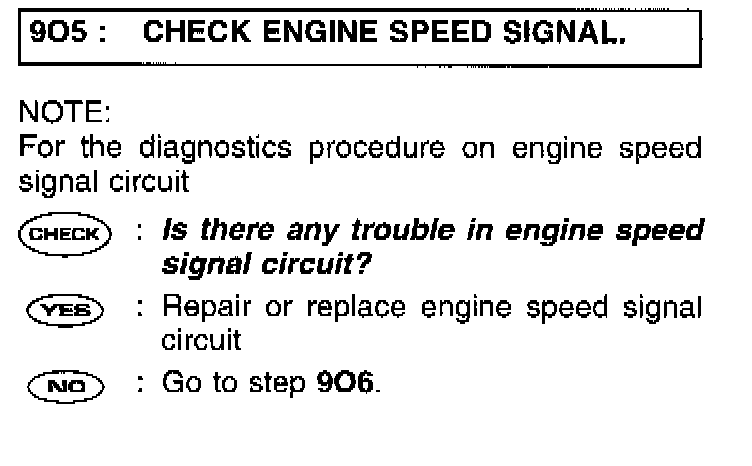

9O5 CHECK ENGINE SPEED SIGNAL.

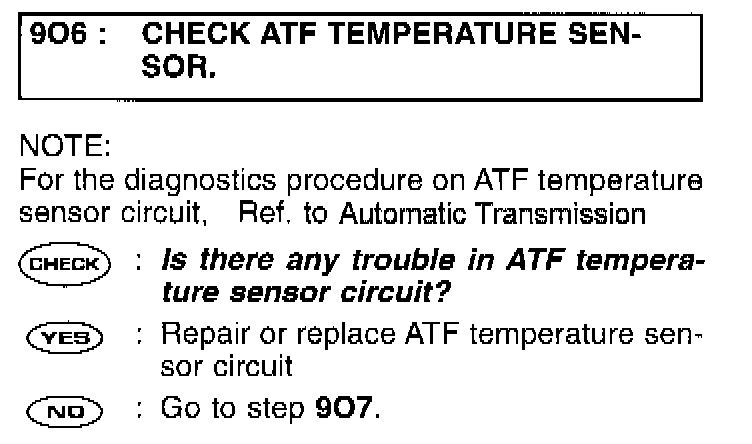

9O6 CHECK ATF TEMPERATURE SENSOR.

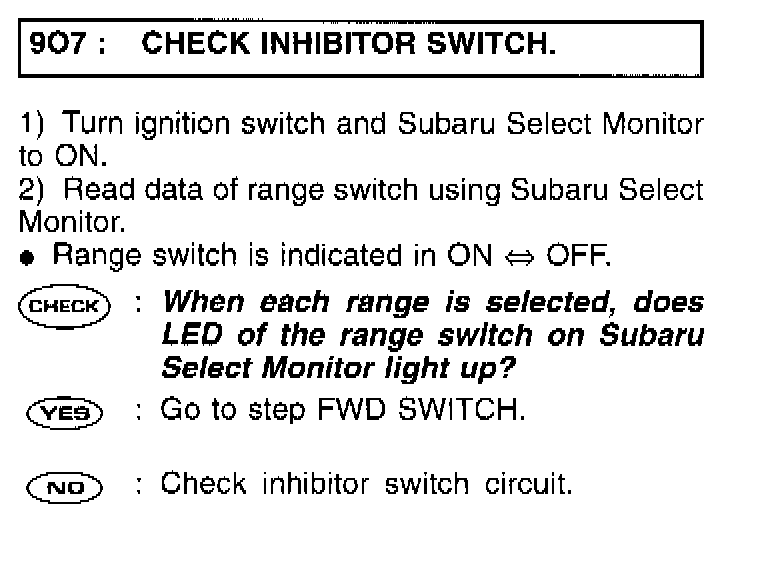

9O7 CHECK INHIBITOR SWITCH.
