Performance Test Diagnosis

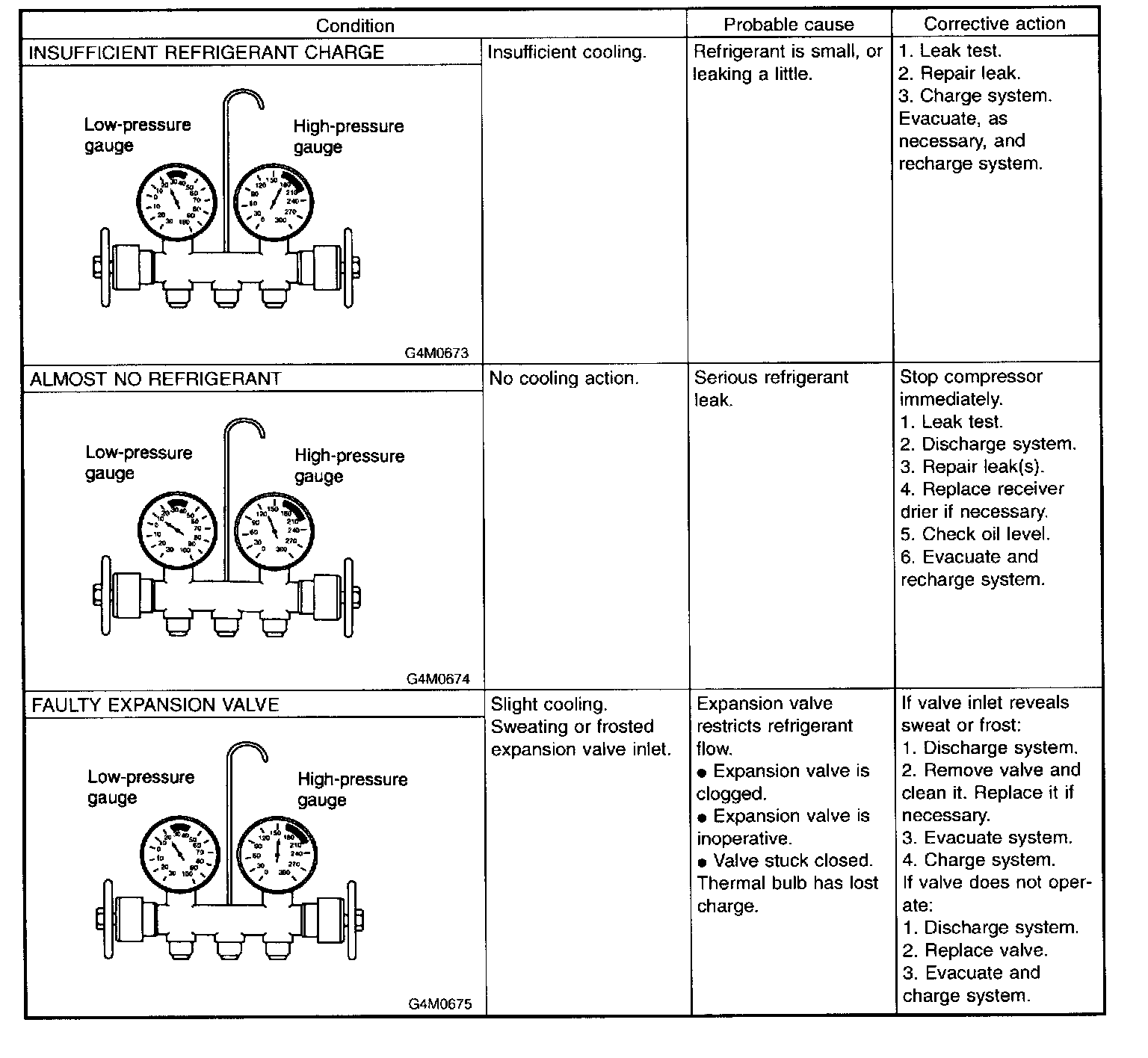

Part 1 Of 3:

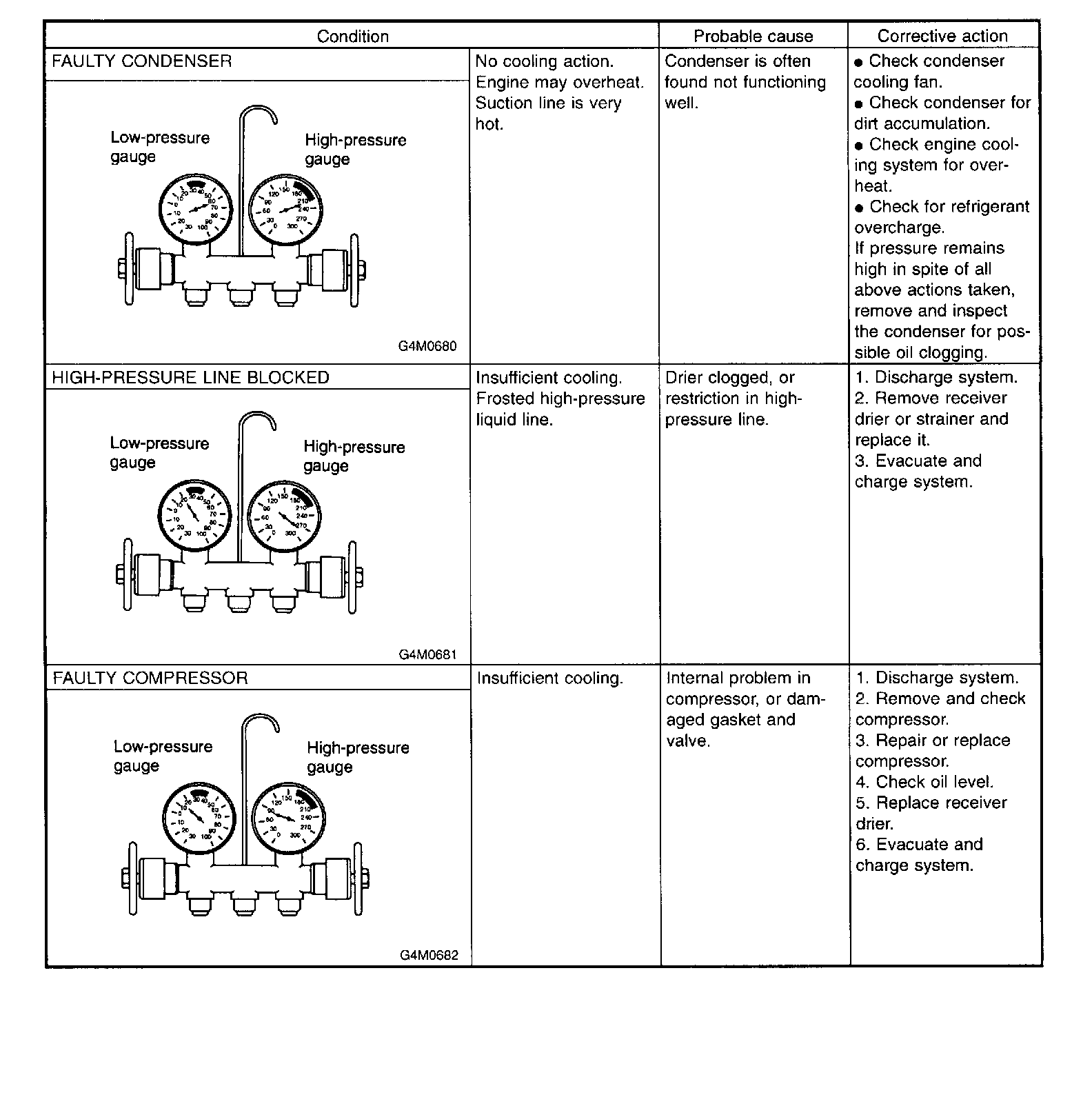

Part 2 Of 3:

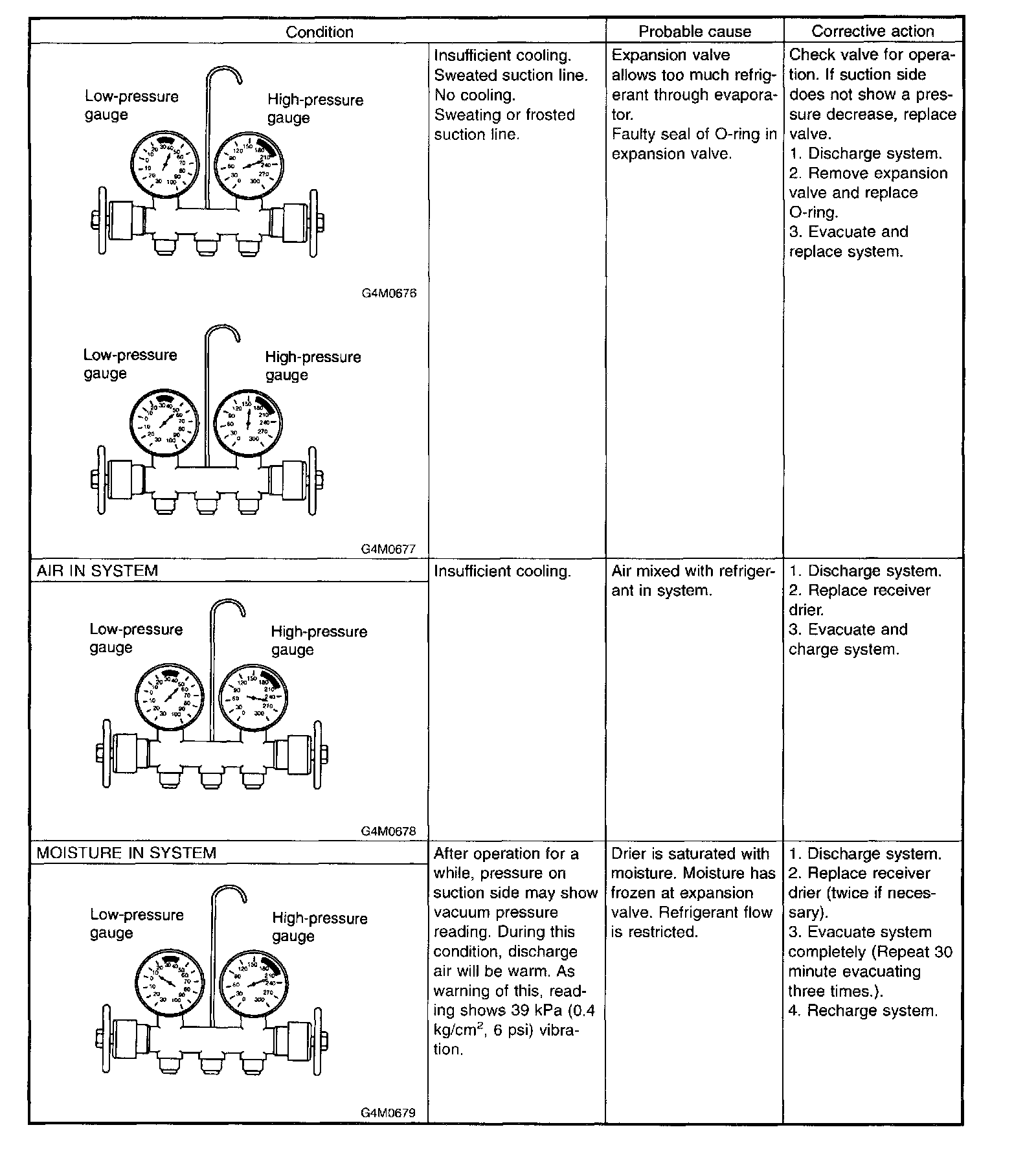

Part 3 of 3:

If various conditions caused to other air conditioning system, the characteristics revealed on manifold gauge reading are shown in the following. As to the method of a performance test, refer to the item of "Performance Test".
Each shaded area on the following tables indicates a reading of the normal system when the temperature of outside air is 32.5°C (91°F).
