Condenser Fan: Service and Repair
Condenser Fan 1.
Disconnect battery negative terminal.
2.
Disconnect harness connector from fan motor.
3.

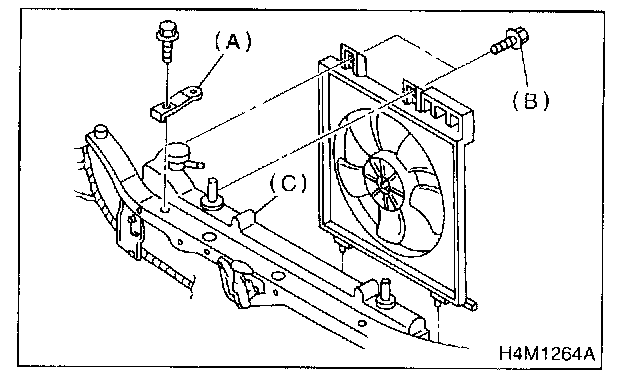

Remove radiator bracket (RH) (A) and remove
condenser fan bolt (B) from radiator (C).
4.
Pull
condenser fan assembly.
5.
Install the
condenser fan assembly in the reverse order of removal.
