Fog/Driving Lamp: Service and Repair

1. EXCEPT OUTBACK

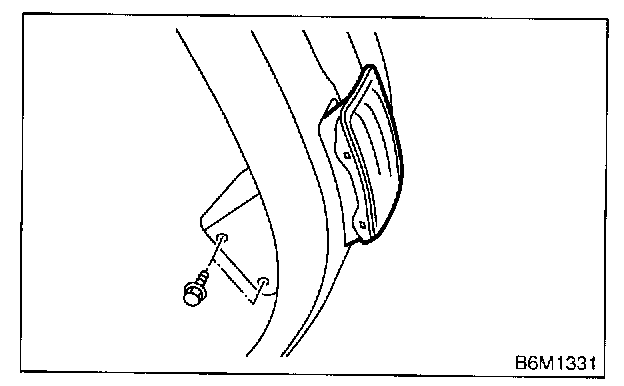

1. Lower the front of the mudguard just enough to facilitate subsequent procedures.
2. Disconnect connector.




3. Remove bolts and then remove front fog light.
4. Installation is in the reverse order of removal.

2. OUT BACK




1. Turn stone guard counterclockwise and then remove stone guard.




2. Remove bolts.
3. Lower the front of the mudguard just enough to facilitate subsequent procedures.
4. Disconnect connector (a).




5. Remove nut (b) and then remove front fog light.
6. Installation is in the reverse order of removal.
