A/T Oil Temp Indicator Light

A: AT OIL TEMP INDICATOR LIGHT

DIAGNOSIS
The AT OIL TEMP indicator light circuit is open or shorted.

TROUBLE SYMPTOM
^ When ignition switch is turned to ON (engine OFF), AT OIL TEMP indicator light does not illuminate.
^ When on-board diagnostics is performed, AT OIL TEMP indicator light remains illuminated.

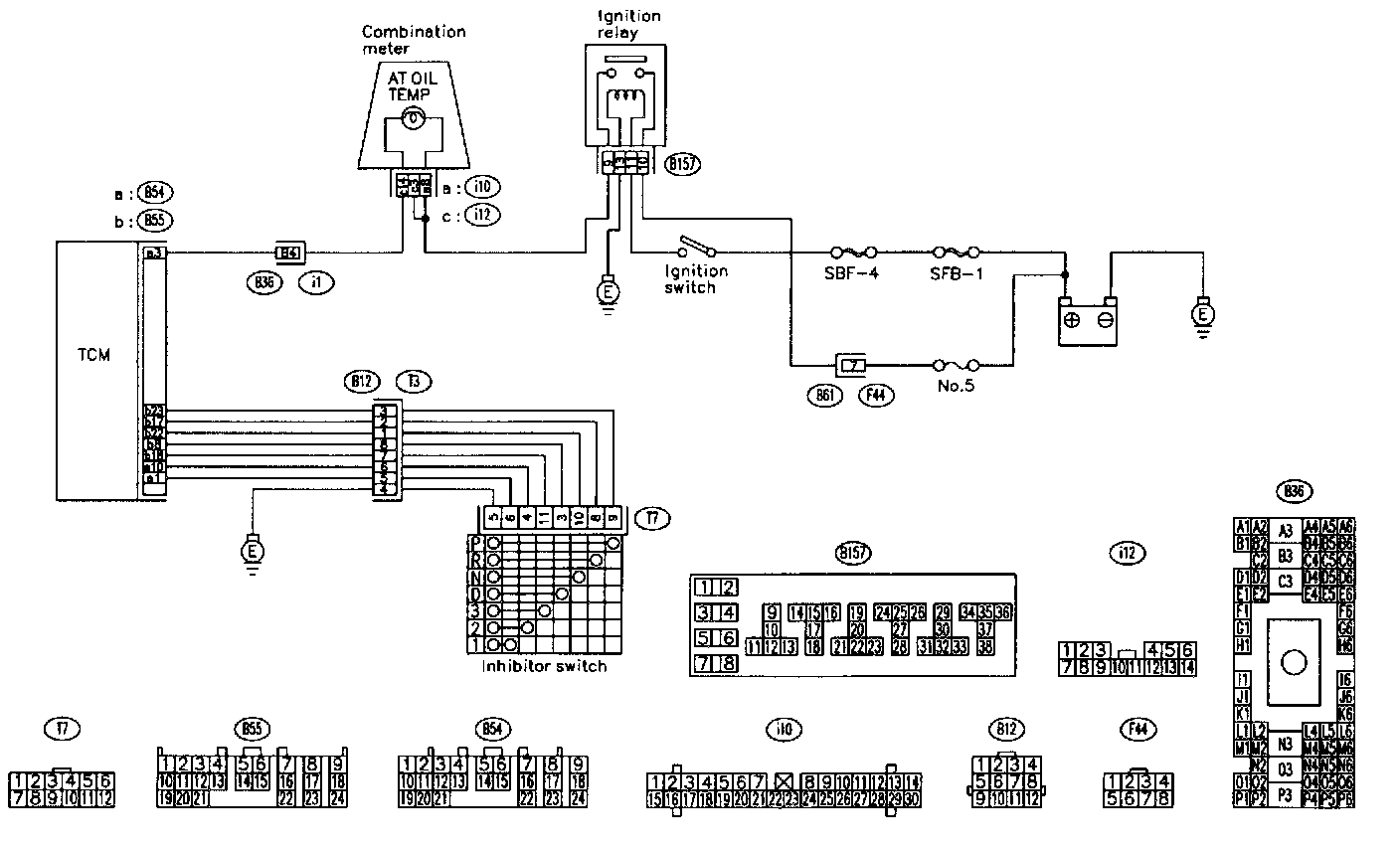

WIRING DIAGRAM

TEST STEPS:

Step 7A1:

Step 7A2:

Step 7A3:

Step 7A4:

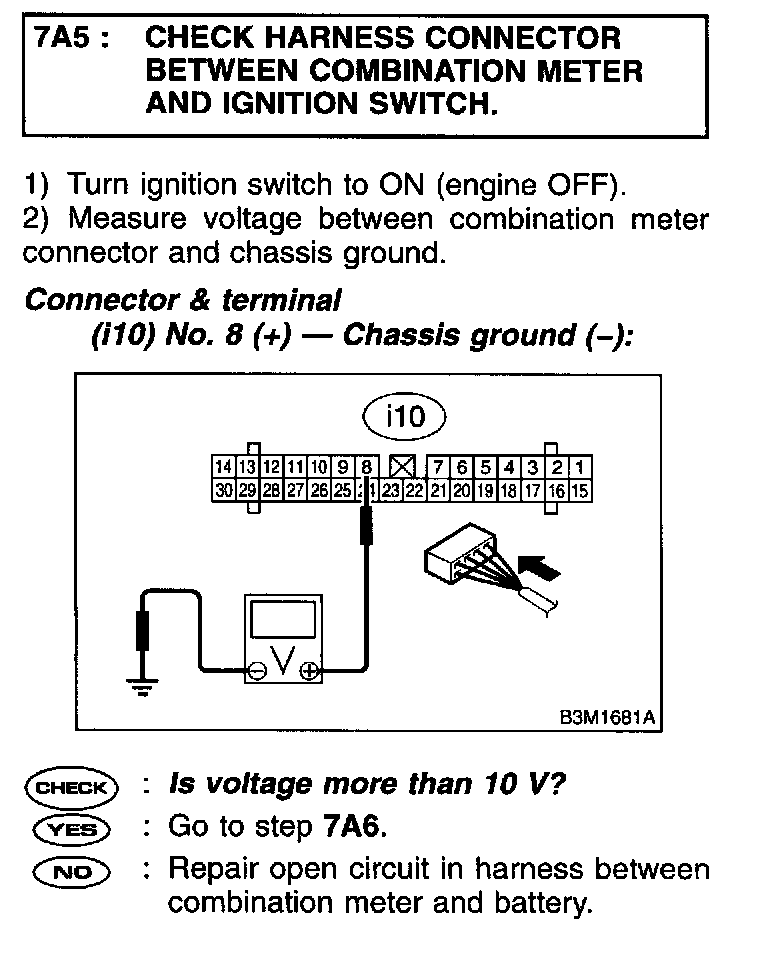

Step 7A5:

Step 7A6:

Step 7A7:

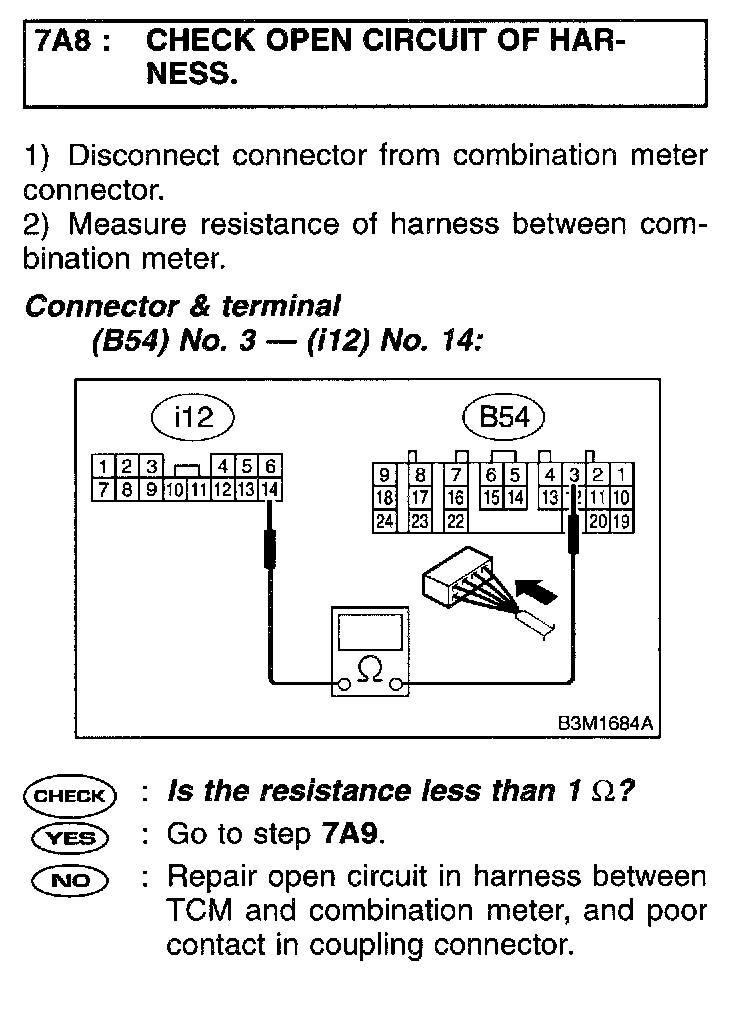

Step 7A8:

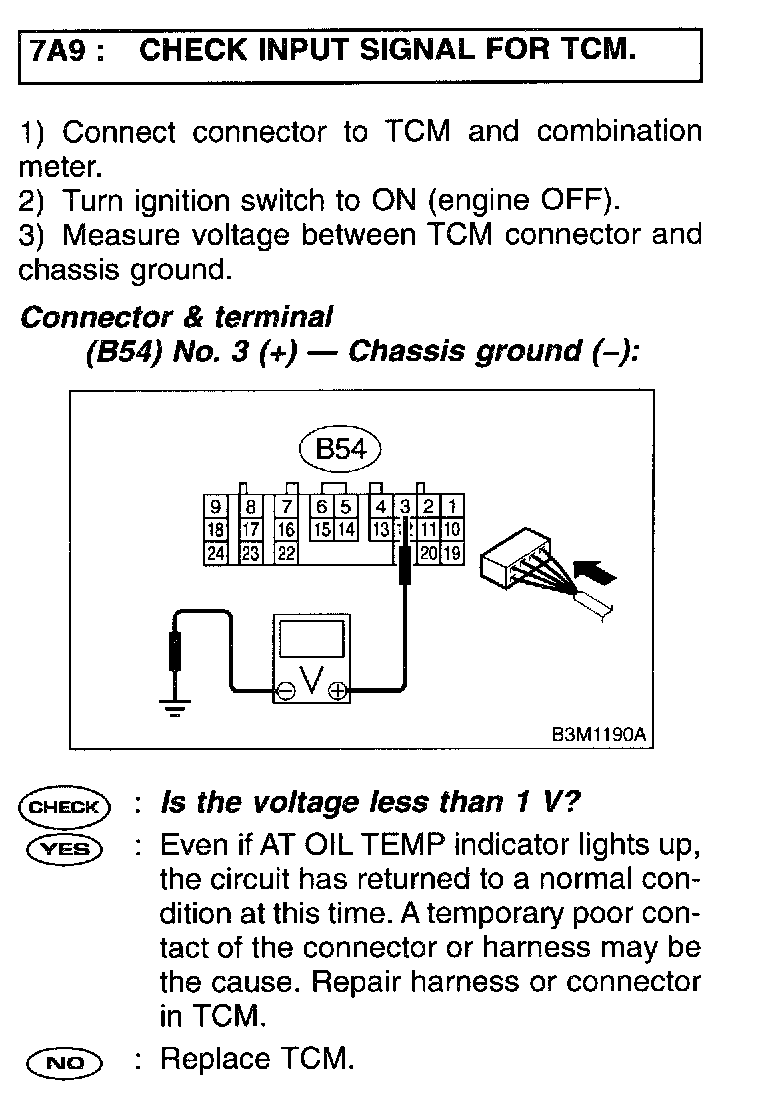

Step 7A9:

Step 7A10:

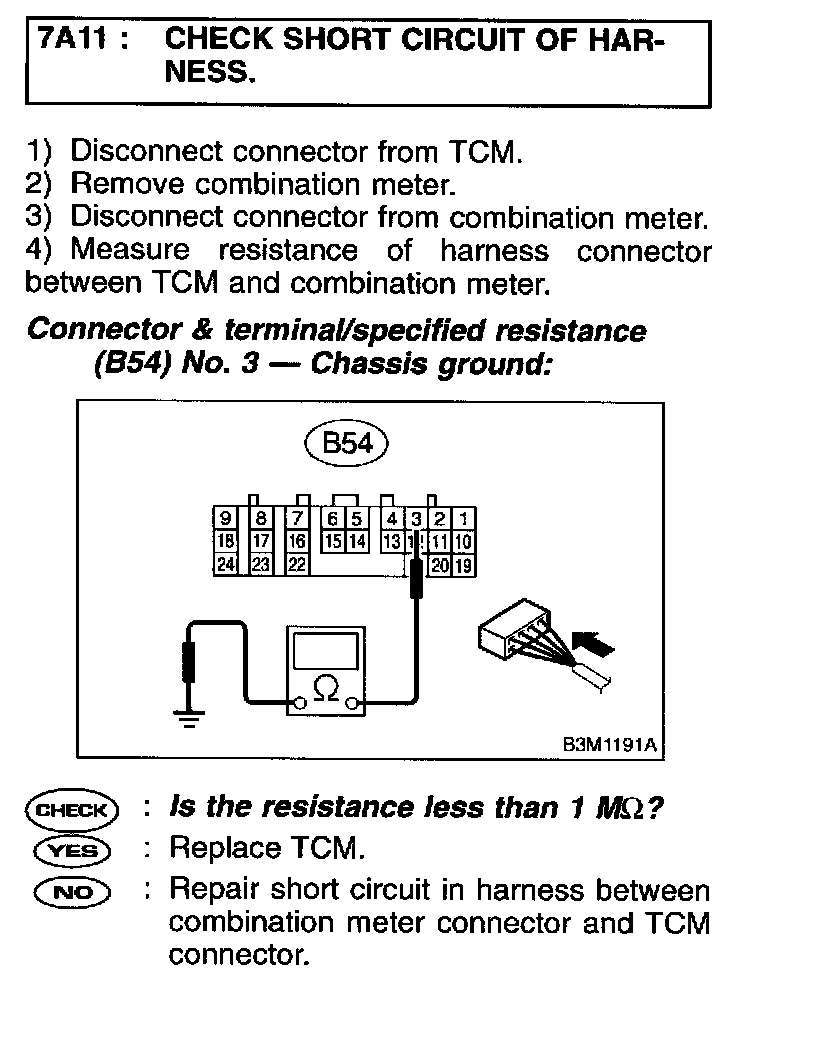

Step 7A11:
