Seat Back: Service and Repair

Backrest
REMOVAL AND INSTALLATION

1. Raise the cushion.

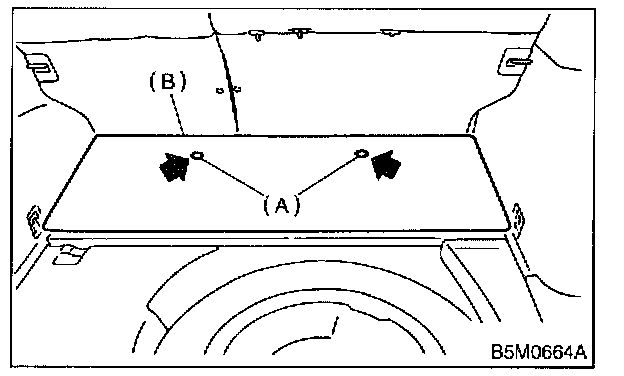

2. Remove clips (A), then remove mat (B).

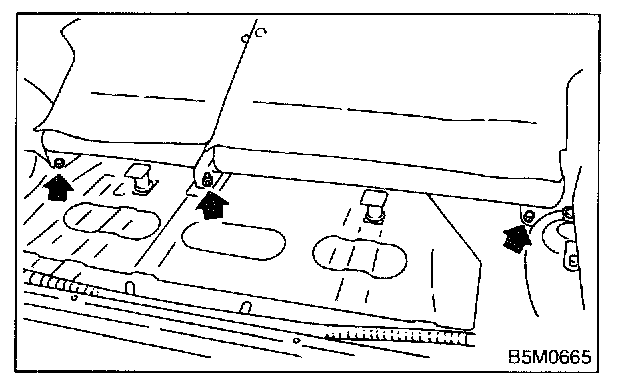

3. Remove bolts and nut, then detach backrest.

4. Installation is in the reverse order of removal.

CAUTION:
- Before installing seat, ensure that seat belt is placed on cushion.
- Confirm that winding of three-point type seat belt can operate regularly.
