A/T Oil Temp Indicator Light
A: AT OIL TEMP INDICATOR LIGHT DIAGNOSIS: The AT OIL TEMP indicator light circuit is open or shorted.
TROUBLE SYMPTOM:
^
When
ignition switch is turned to ON (engine OFF), AT OIL TEMP indicator light does not illuminate.
^
When on-board diagnostics is performed, AT OIL TEMP indicator light remains illuminated.

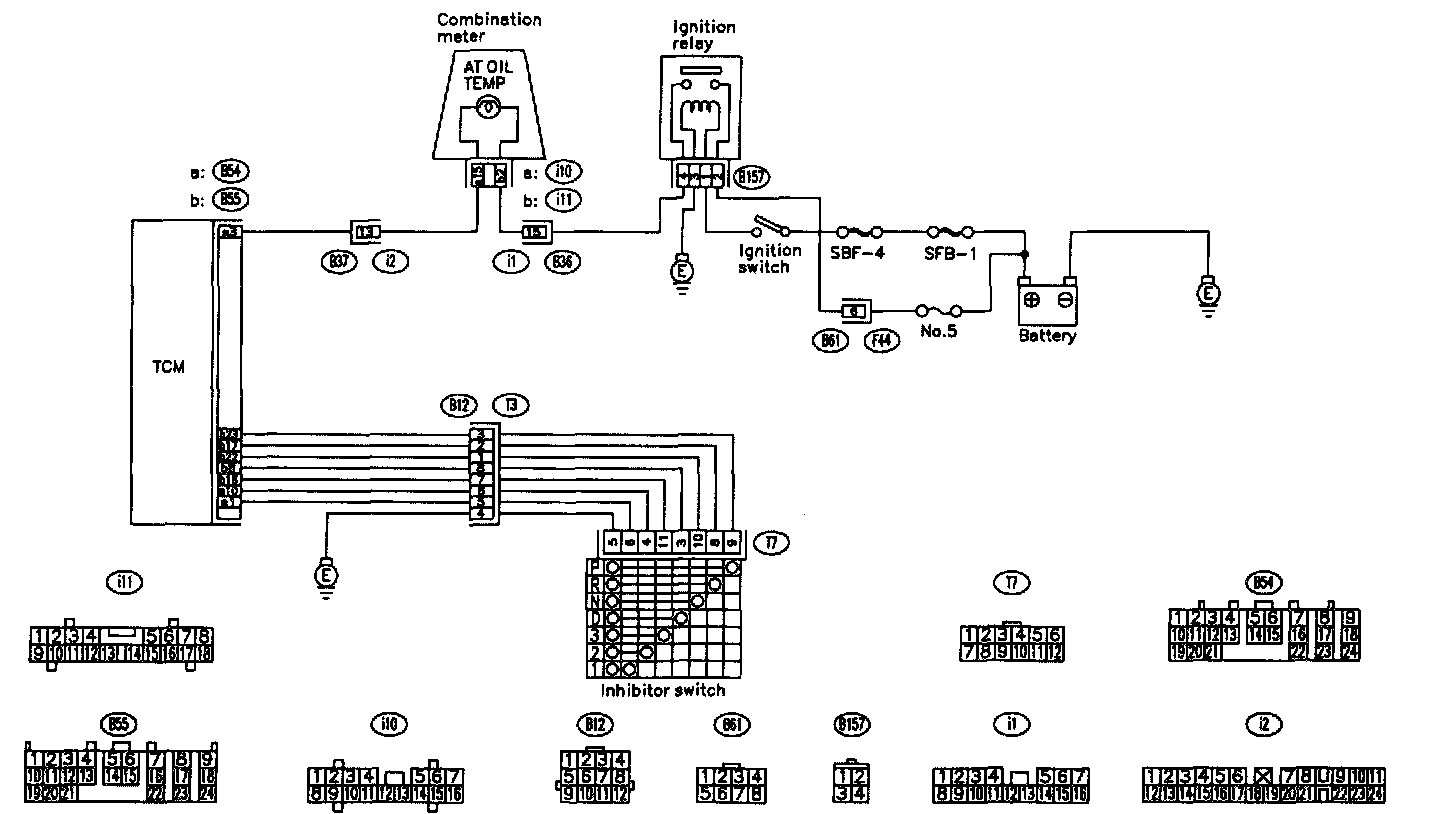

WIRING DIAGRAM:

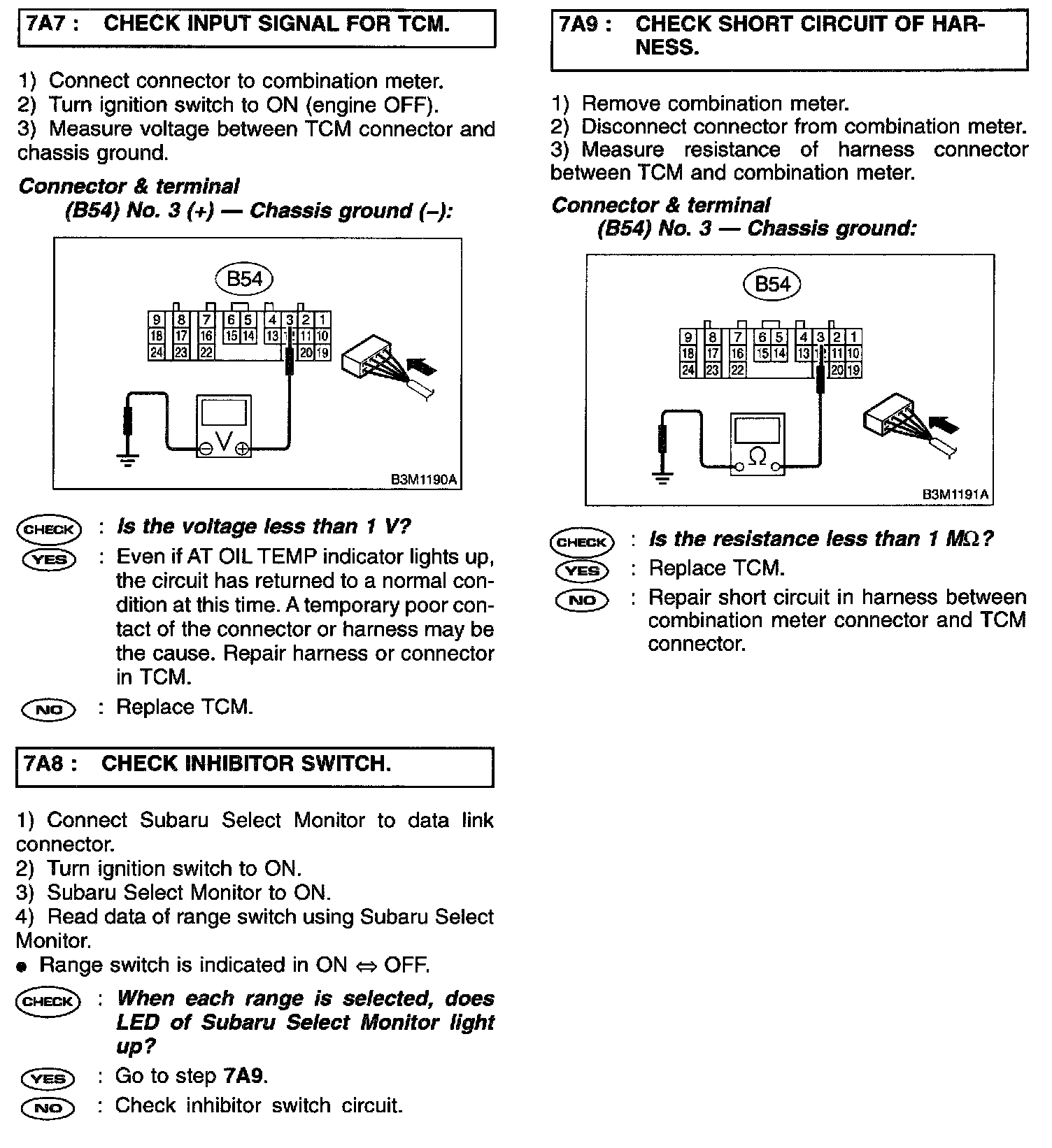

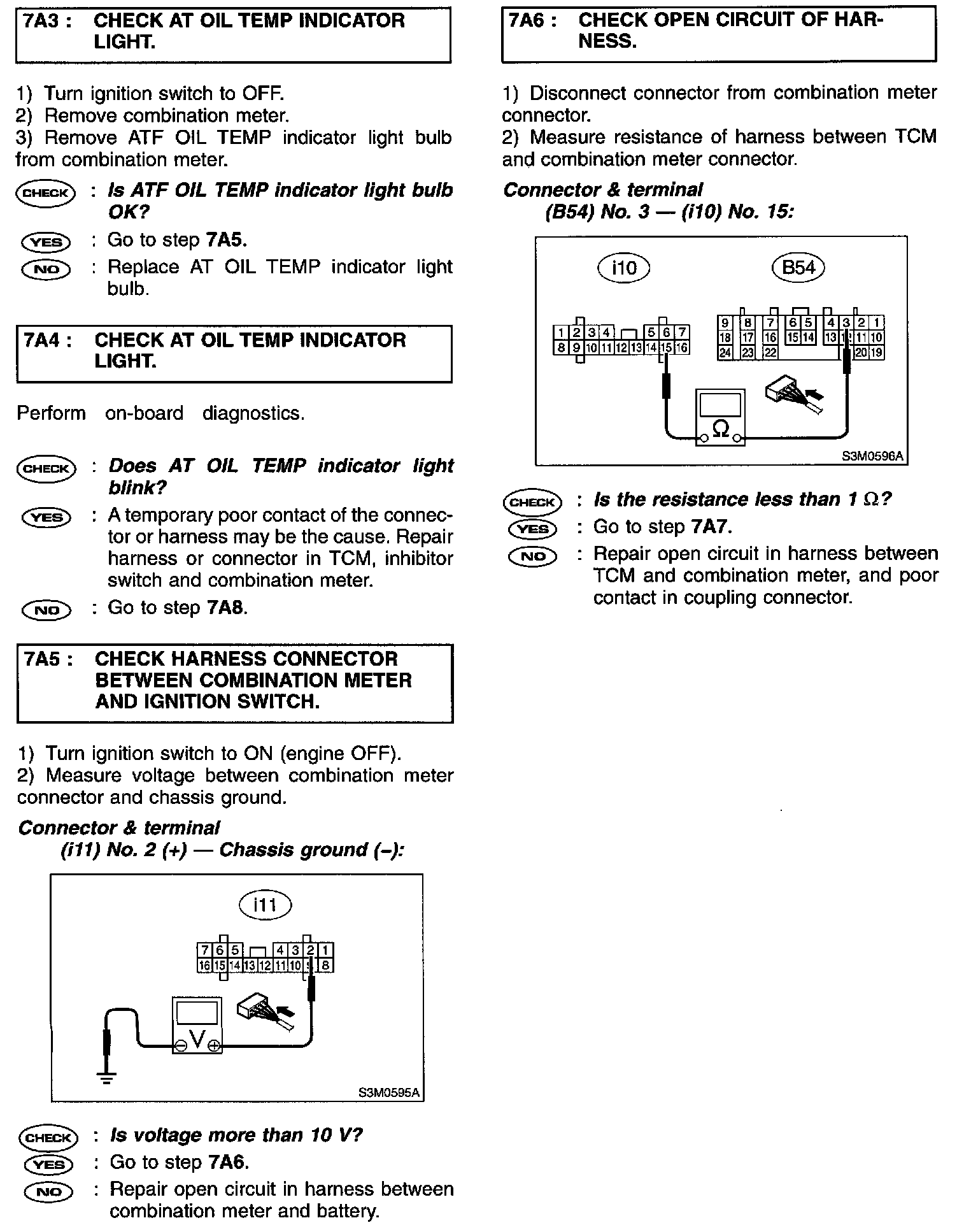

PROCEDURE: 7A1 - 7A2 7A3 - 7A6 7A7 - 7A9
