Shift Cable: Service and Repair
B: REMOVAL1. Prior to removal, set lever to "N" position.

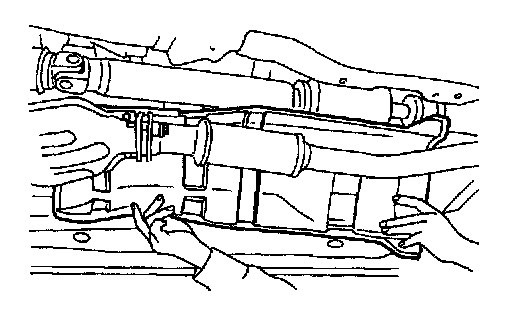

2. Remove under cover.
3. Remove heat shield cover.

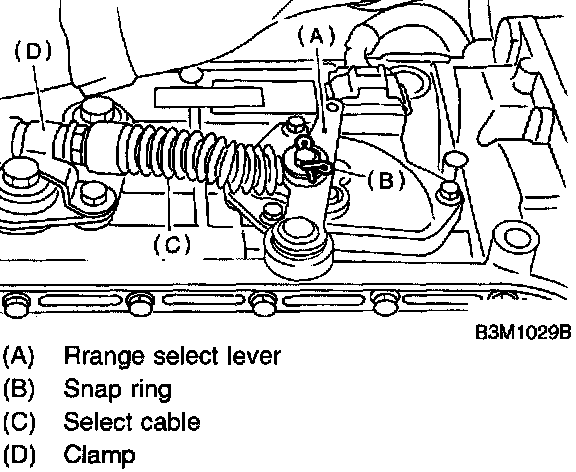

4. Remove snap pin from range select lever.

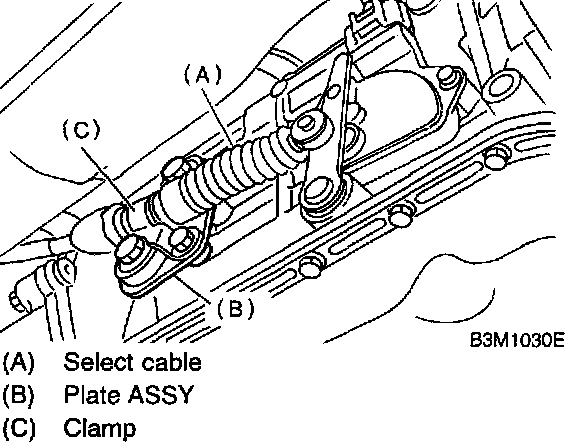

5. Remove plate assembly from transmission case.
6. Disconnect cable from select lever and then remove cable bracket.
7. Remove select cable from plate assembly.
C: INSTALLATION
1. Install select cable to plate assembly.

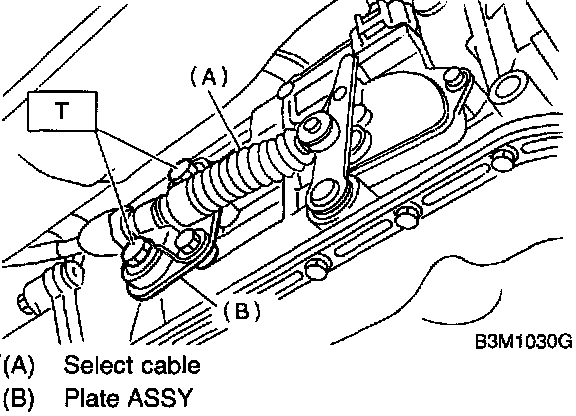

Tightening torque: 32 ± 10 Nm (3.3 ± 1.0 kg-m, 24 ± 7 ft. lbs.)
2. Install select cable to range select lever.
3. Install select cable bracket to body.
Tightening torque: 25 ± 7 Nm (2.5 ± 0.7 kg-m, 18.1 ± 5.1 ft. lbs.)
4. Install plate assembly to transmission.
Tightening torque:
T: 24.5 ± 2.0 Nm (2.5 ± 0.2 kg-m, 18.1 ± 1.4 ft. lbs.)

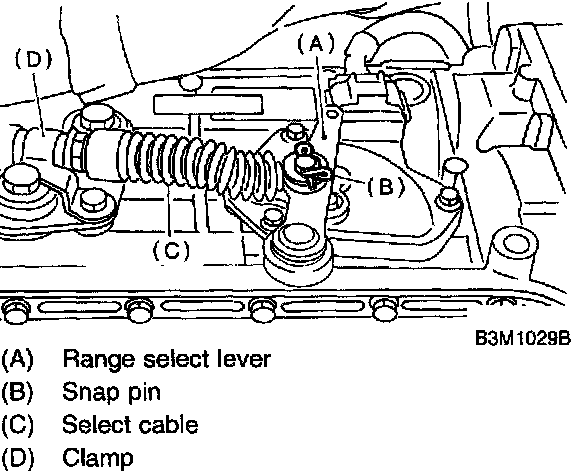

5. Install snap pin to range select lever.

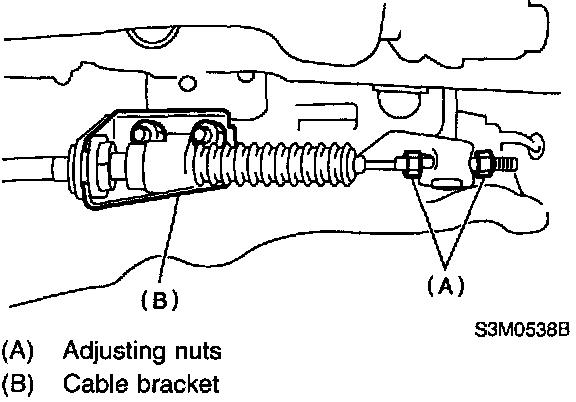

6. Move the select lever to the "N" position, then adjust the select cable position.

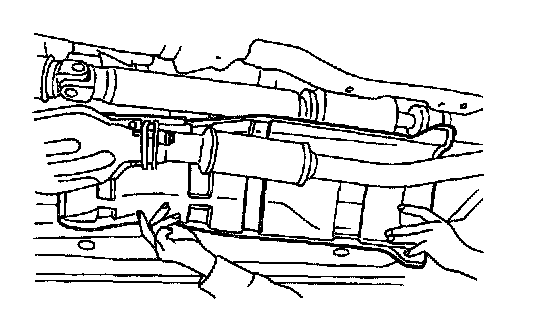

7. Install heat shield cover.
