Fender: Service and Repair

1. Disconnect ground cable from battery.
2. Remove mud guard.
3. Remove parking light and headlight.
4. Remove front bumper face.
5. Remove side protector. (Front fender)

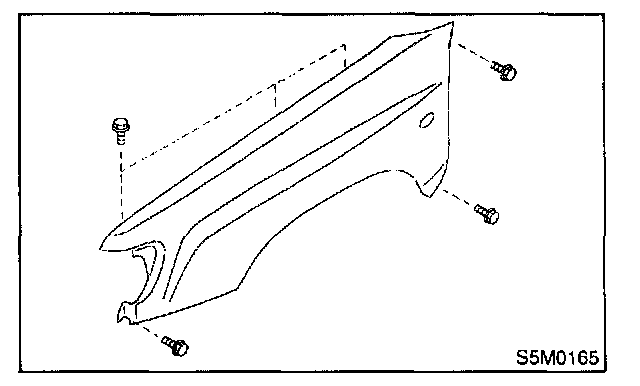

6. Remove attaching bolt then remove fender.

CAUTION: Be careful not to scratch body panels with fender edges when removing it.




7. Install in the reverse order of removal.

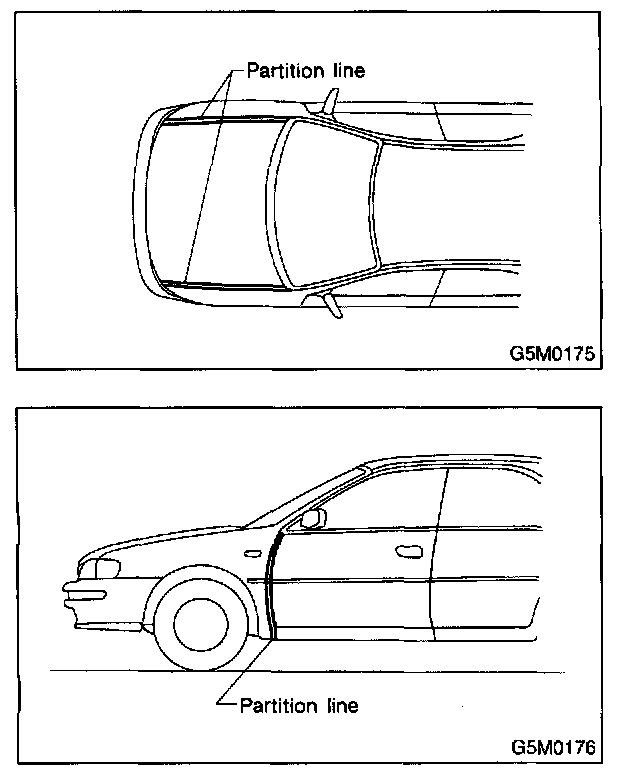

NOTE: Check for alignment of front fender with hood and front door with front fender at all points. Adjust, if necessary.
