Air Temperature Sensor ( Ambient / Intake ): Service and Repair
REMOVAL AND INSTALLATION 1.
Disconnect battery ground cable.
2.

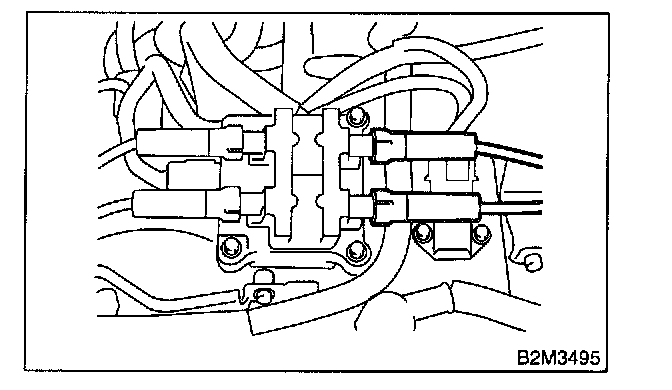

Disconnect spark plug cord from ignition coil and ignitor assembly.
3.

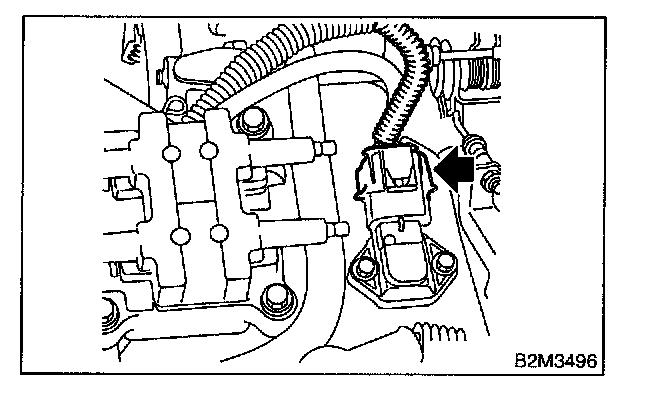

Disconnect connector from intake air temperature and pressure sensor.
4.

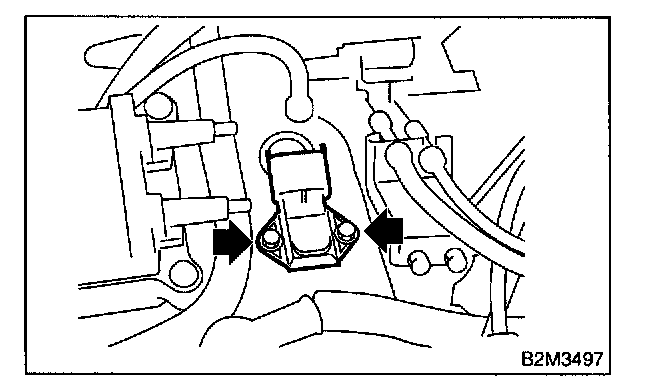

Remove intake air temperature and pressure sensor.
5.

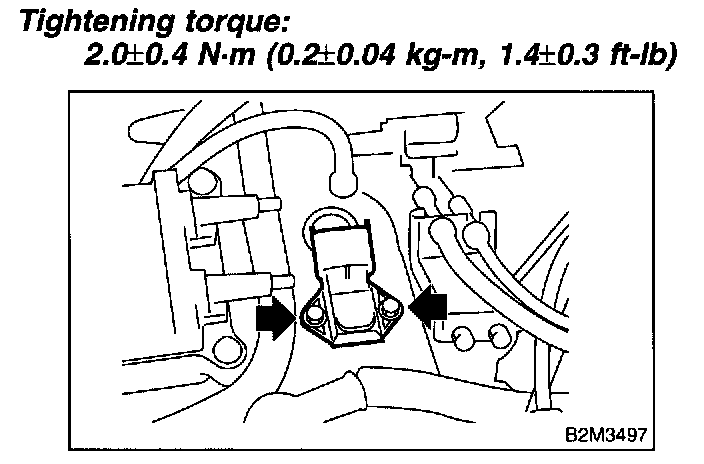

Install in the reverse order of removal.

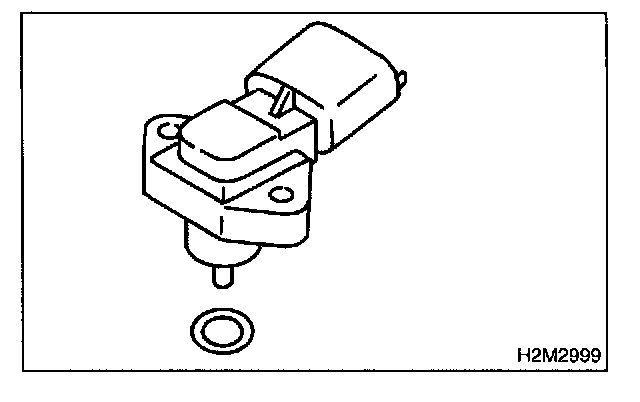

CAUTION: Replace O-ring with new one.
