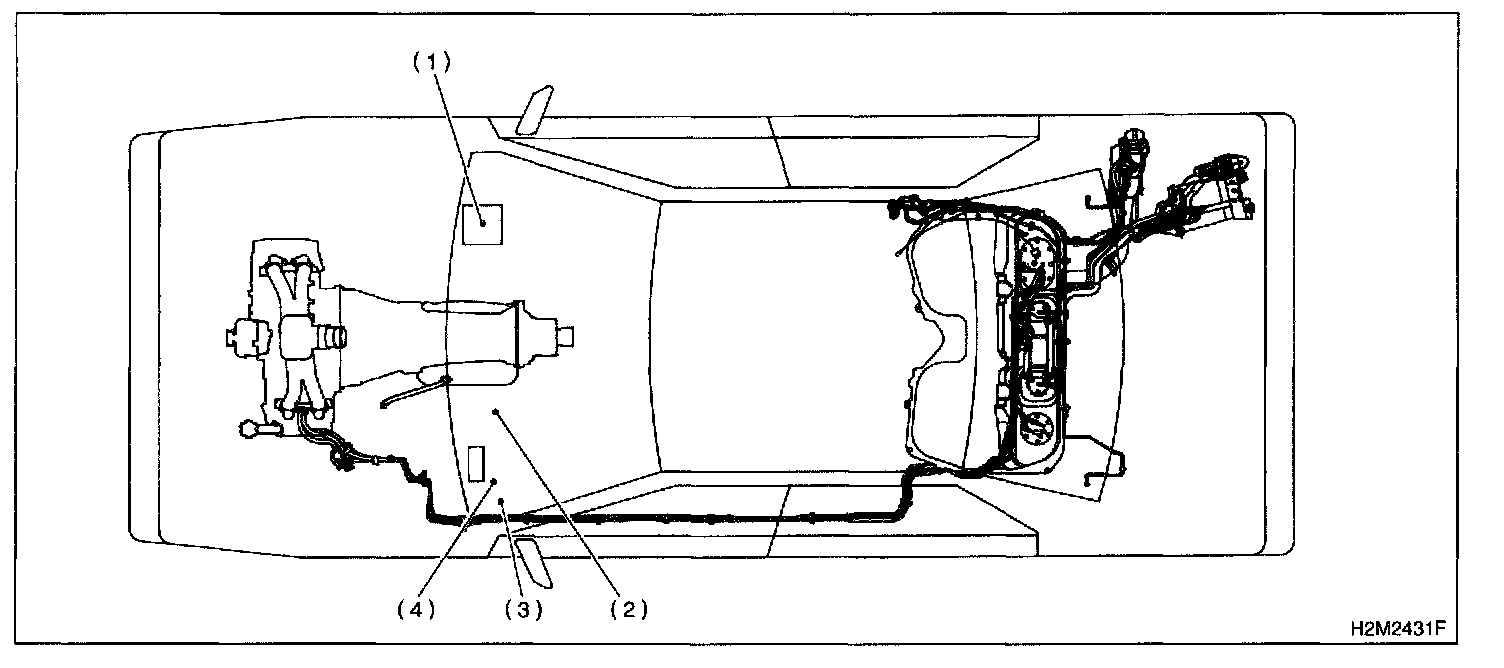

Engine

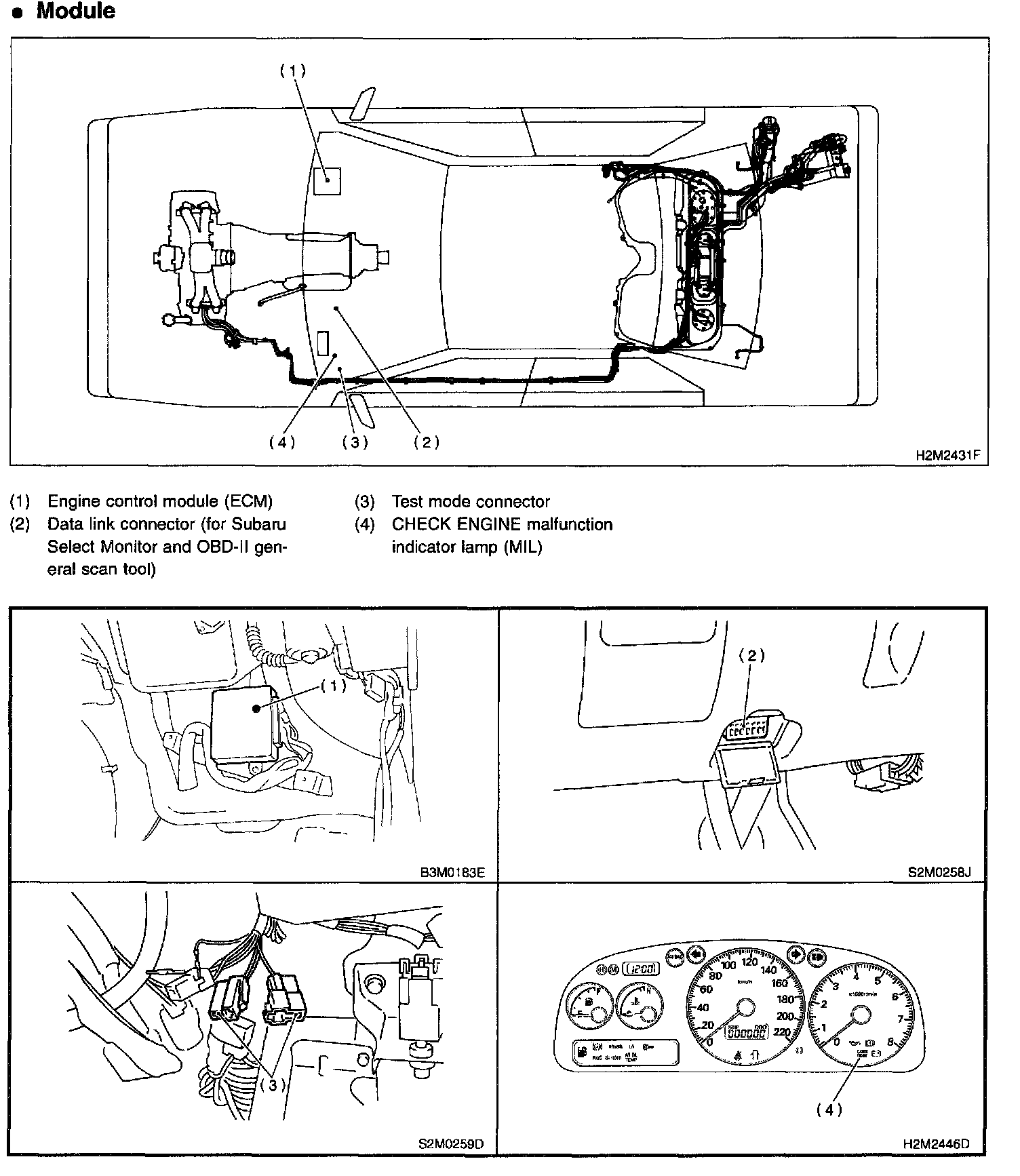

ModuleComponent Location Overall View / Component Views:

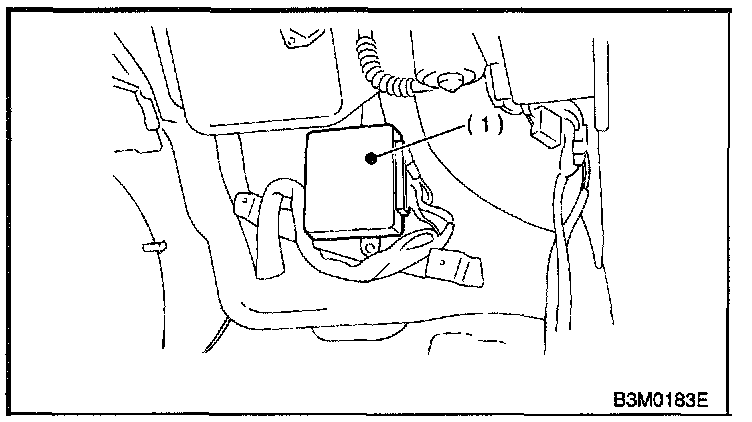

1. Engine control module (ECM)

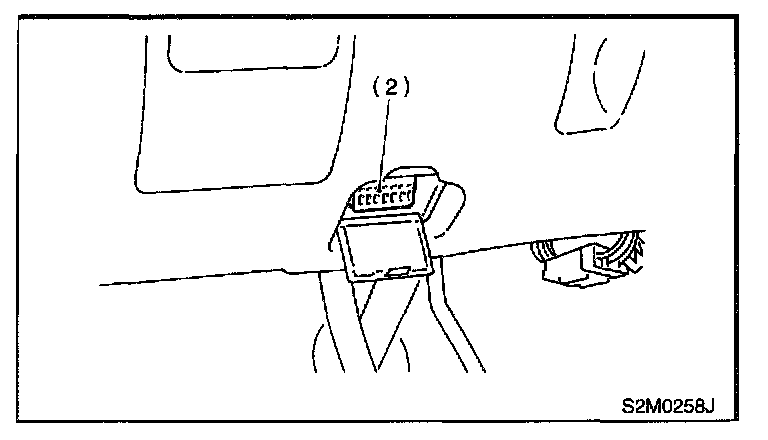

2. Data link connector (for Subaru Select Monitor and OBD-II general scan tool)

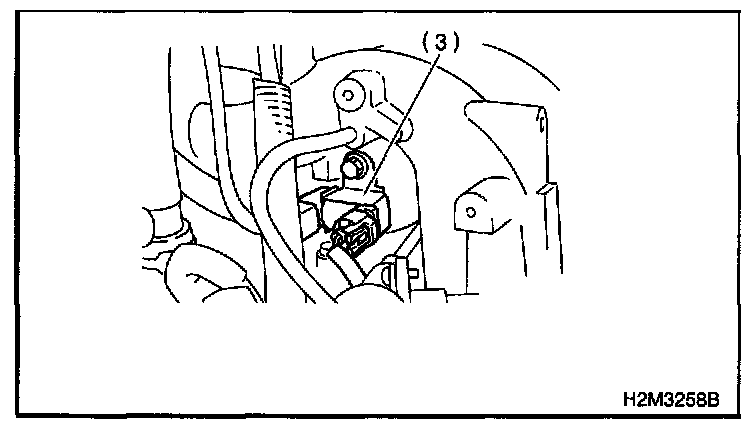

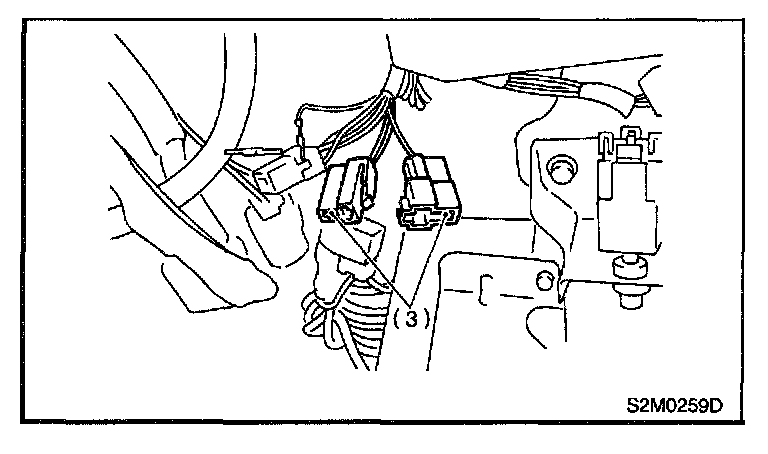

3. Test mode connector
4. CHECK ENGINE malfunction indicator lamp (MIL)

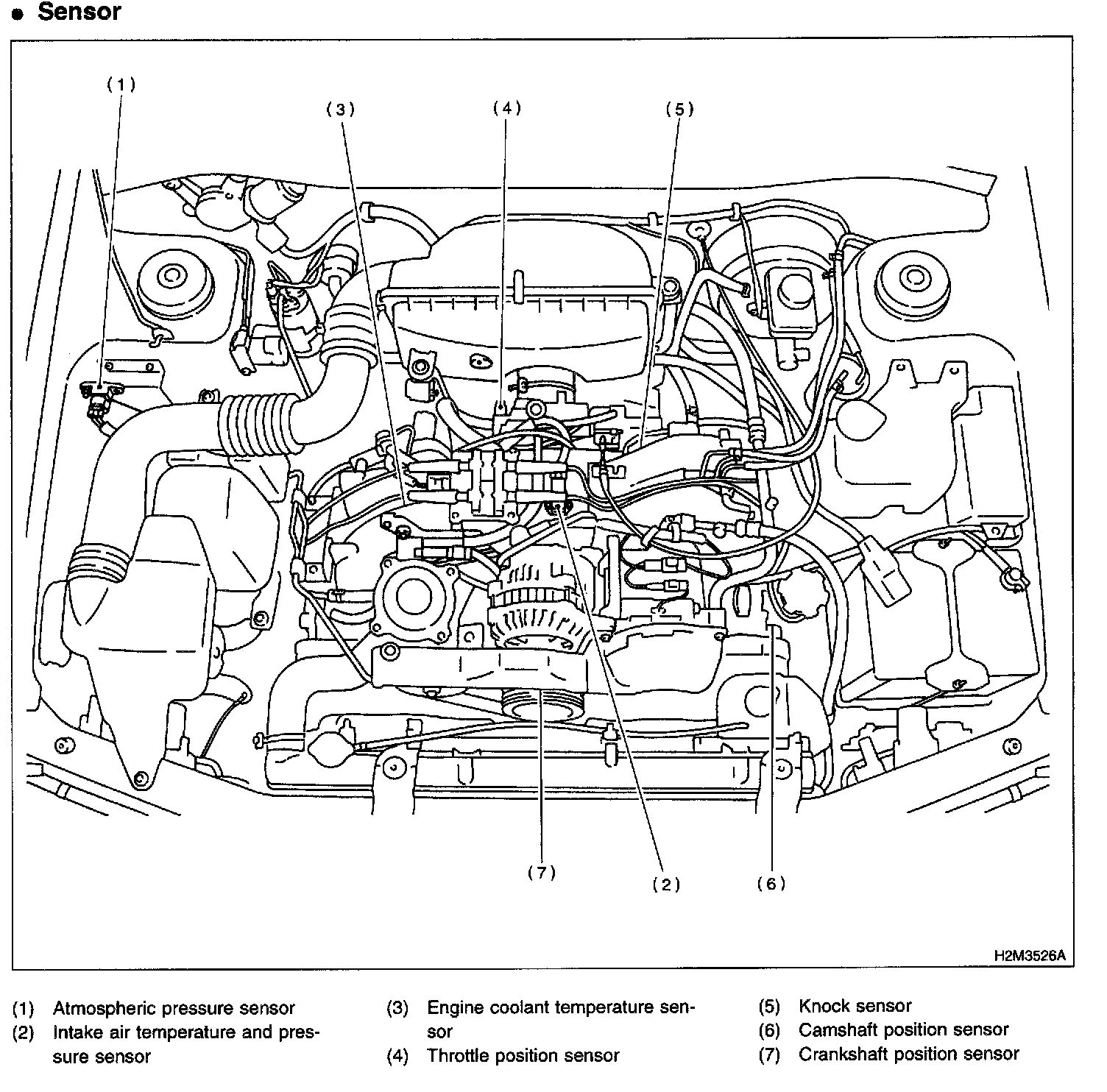

Sensor
Component Location Overall View:

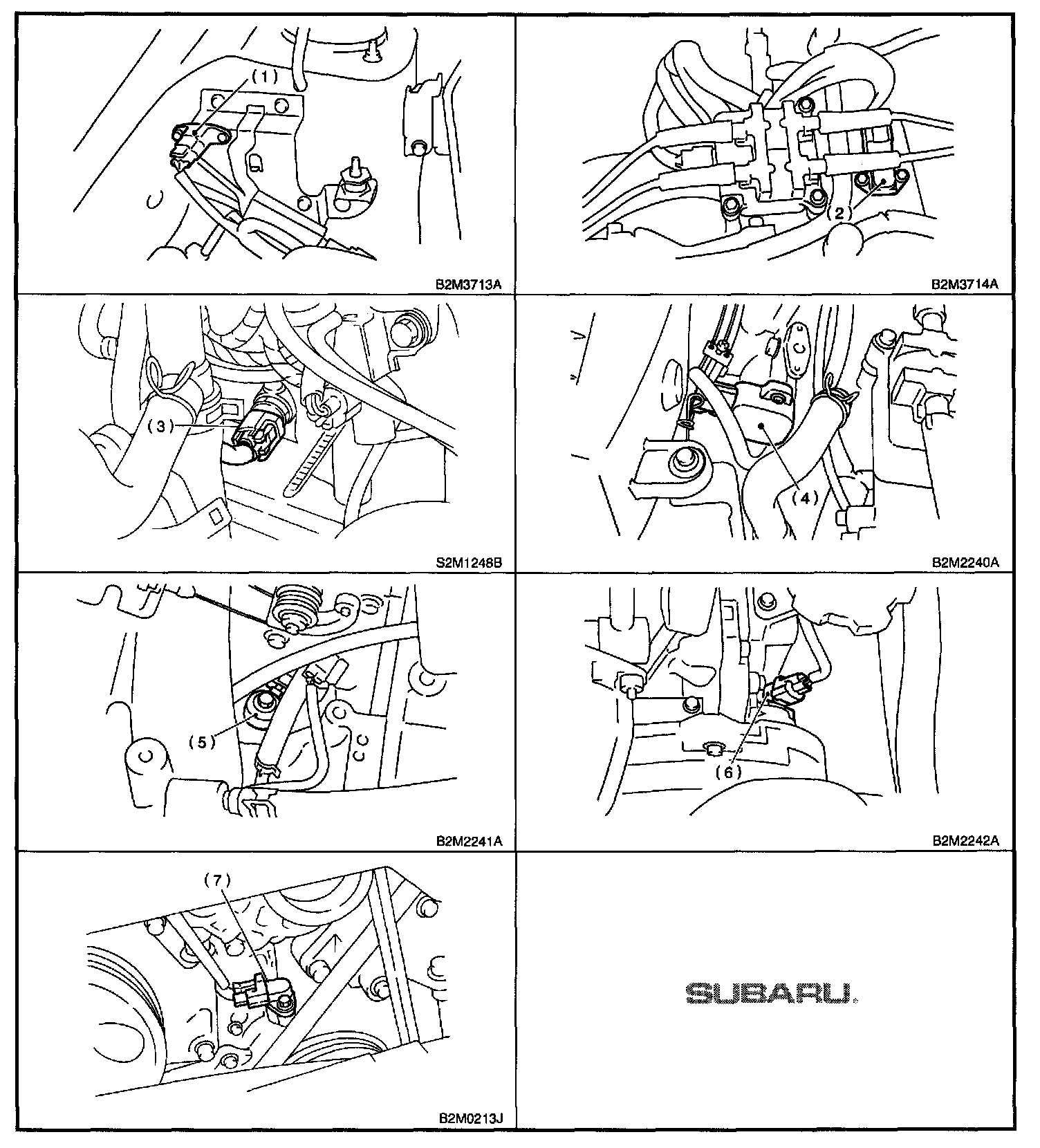

Component Views:
1. Atmospheric pressure sensor
2. Intake air temperature and pressure sensor
3. Engine coolant temperature sensor

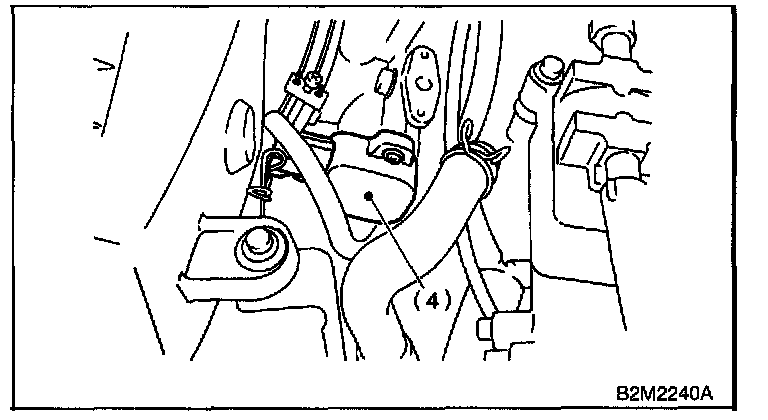

4. Throttle position sensor

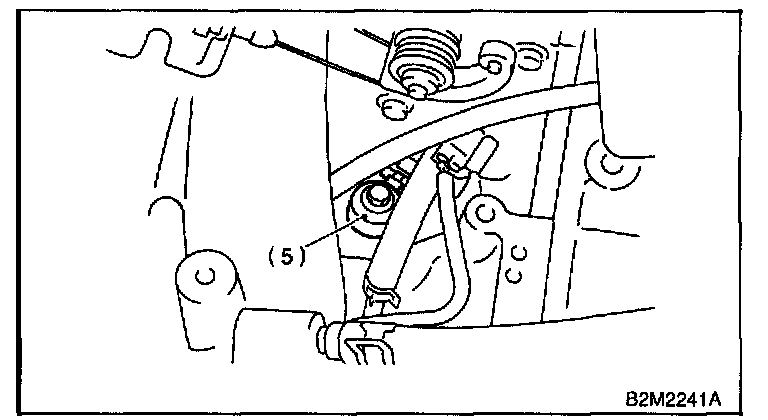

5. Knock sensor

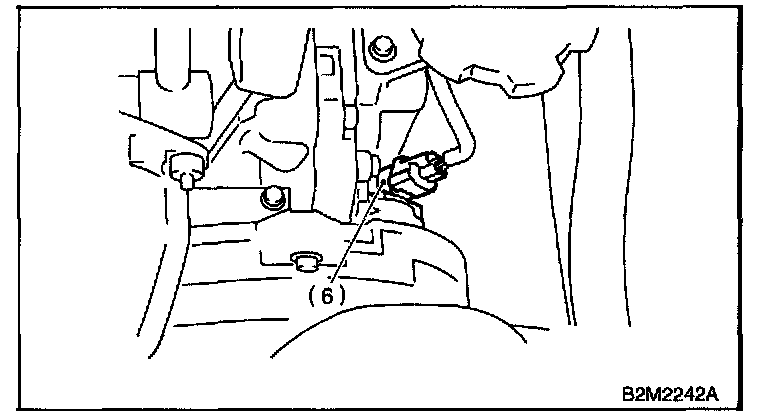

6. Camshaft position sensor
7. Crankshaft position sensor

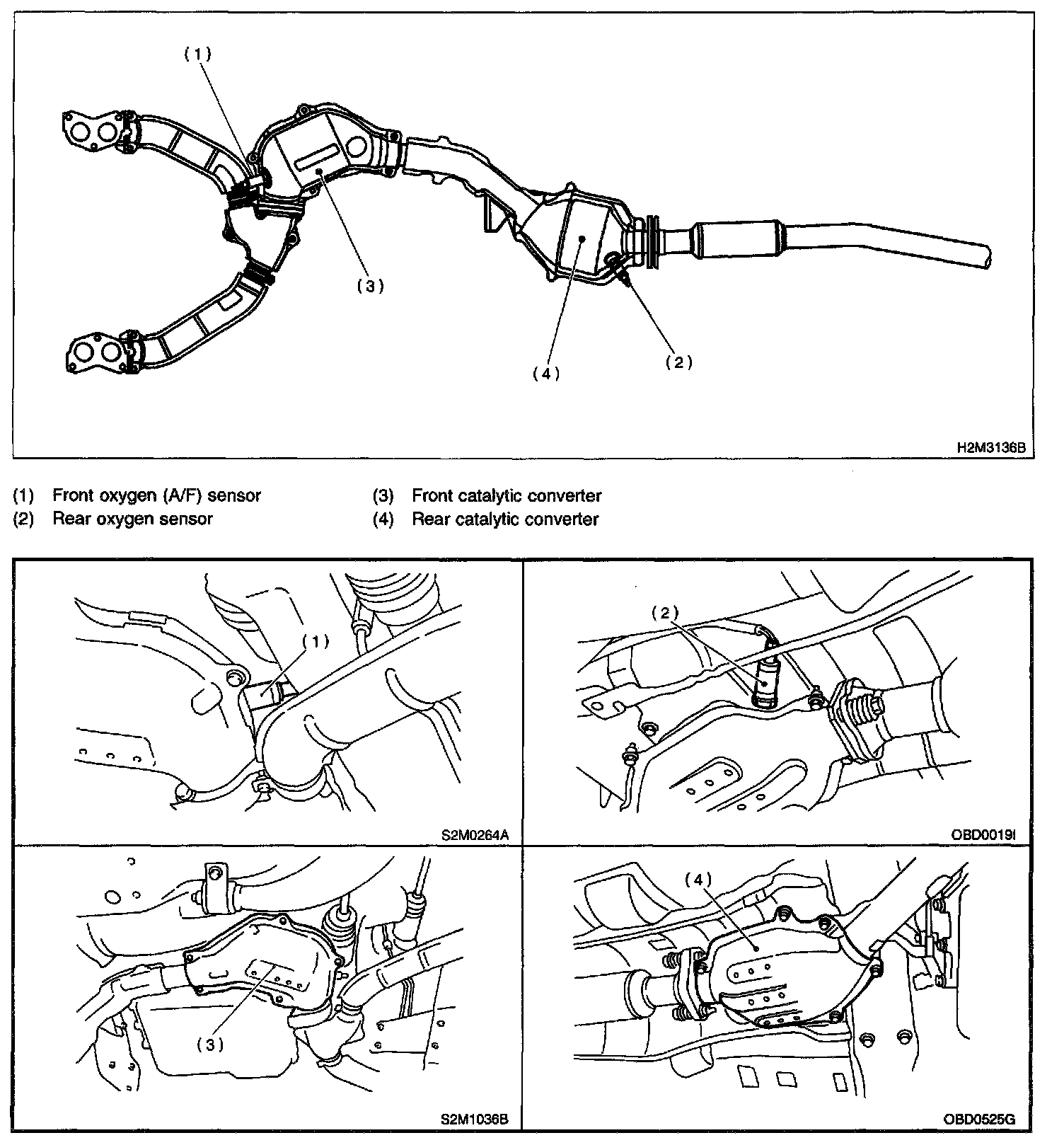

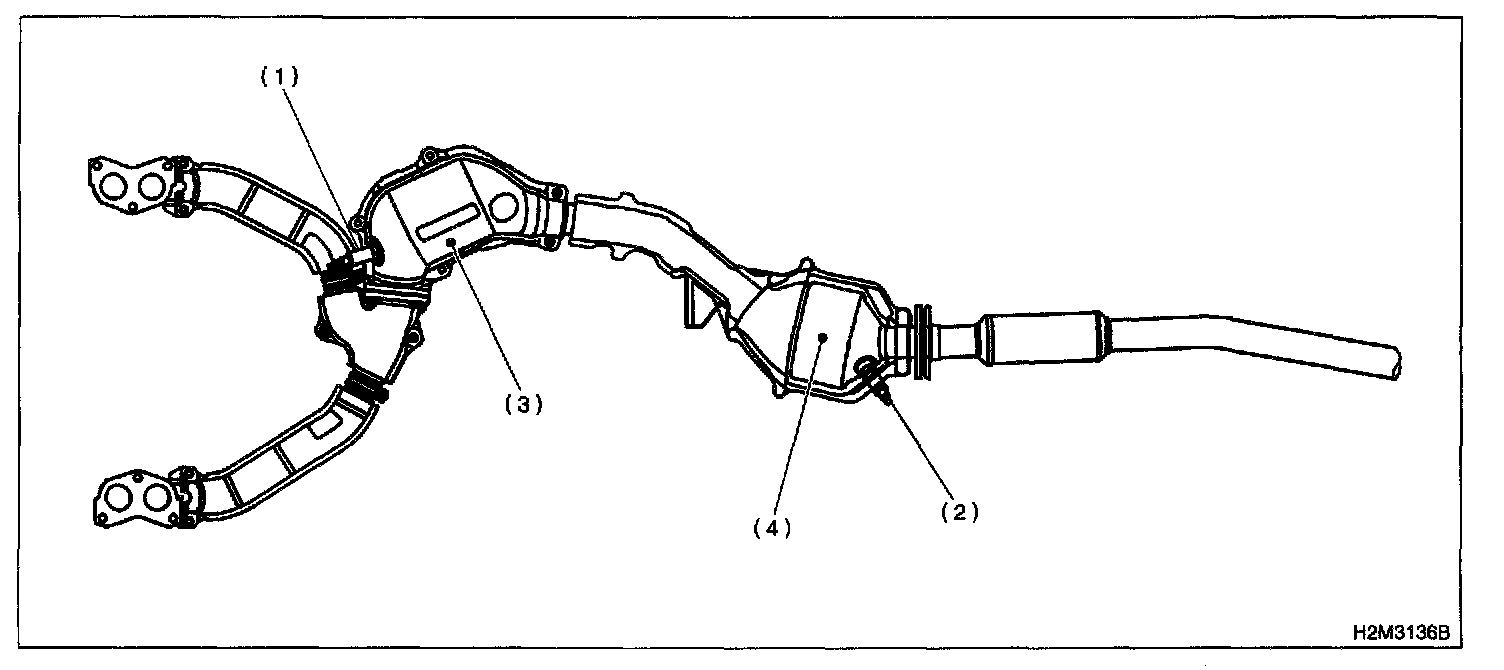

Component Location Overall View / Component Views:
1. Front oxygen (A/F) sensor

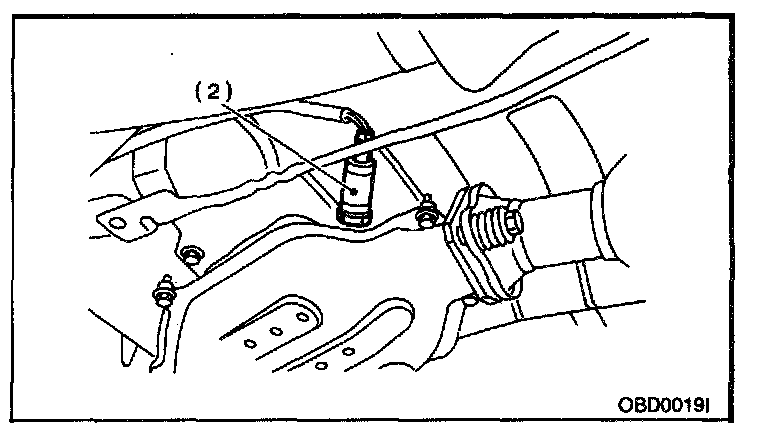

2. Rear oxygen sensor

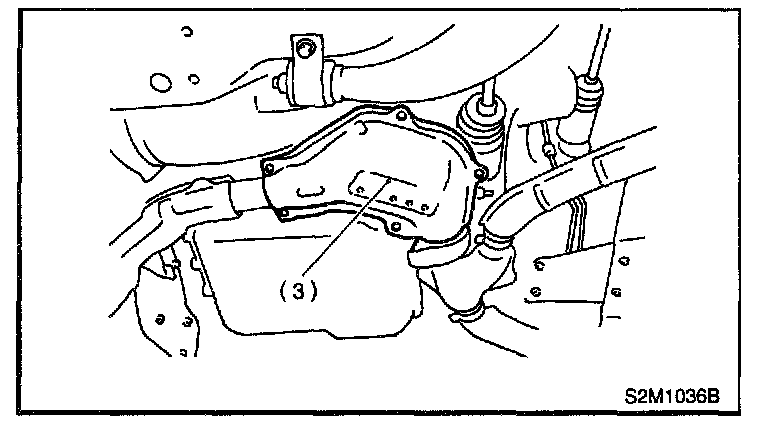

3. Front catalyst converter

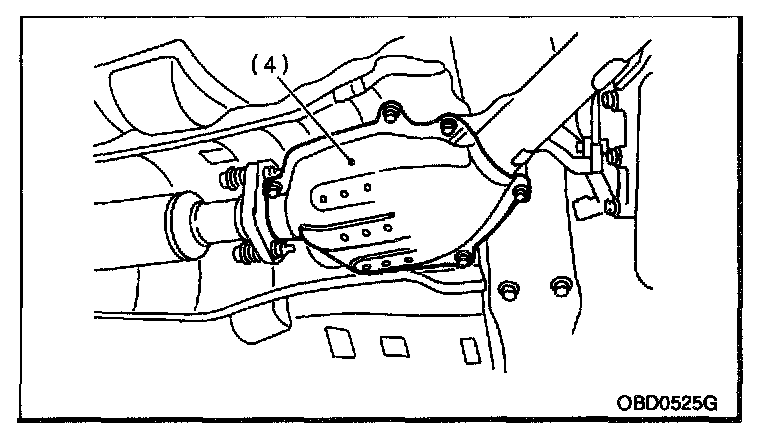

4. Rear catalystic converter.

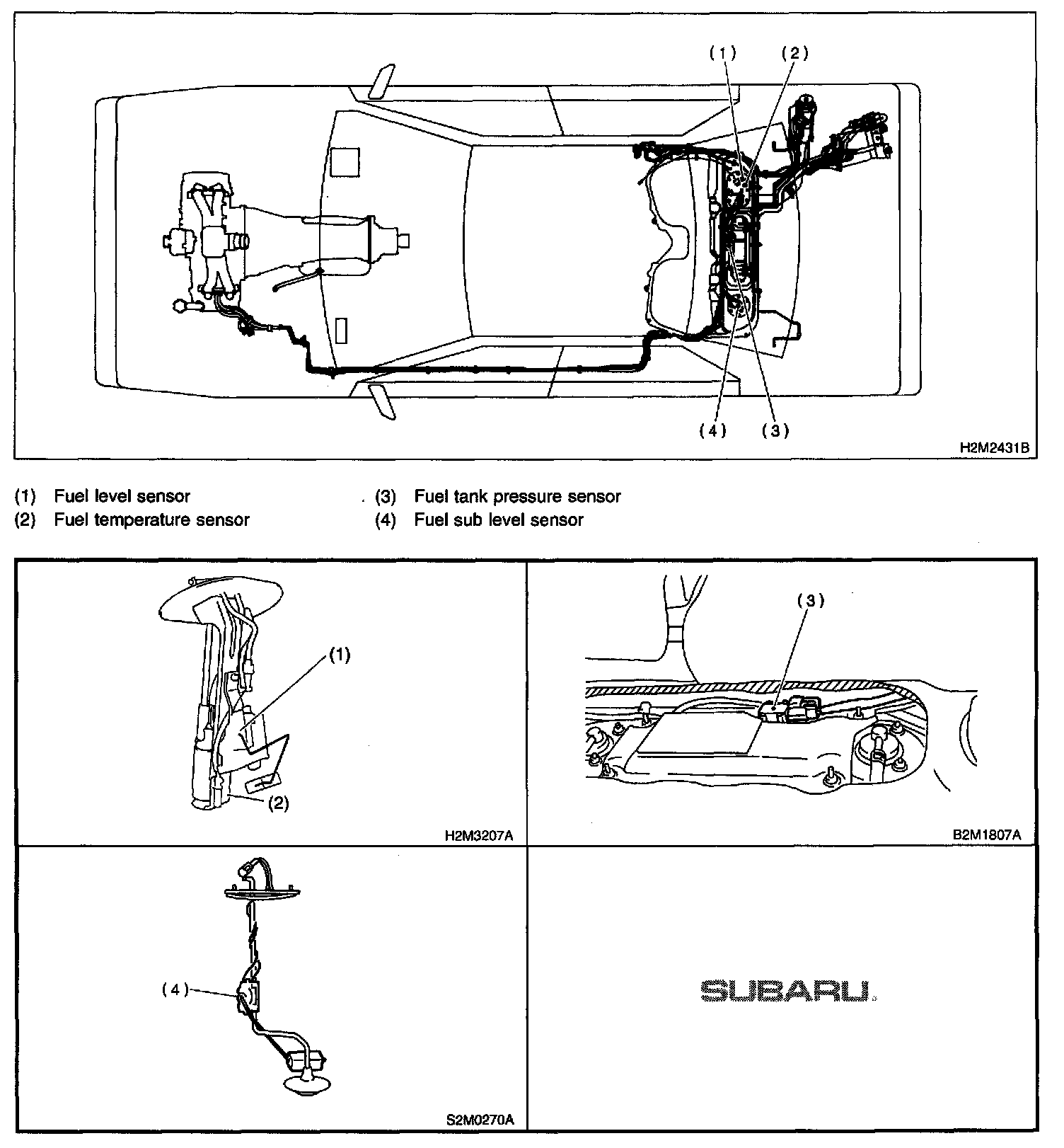

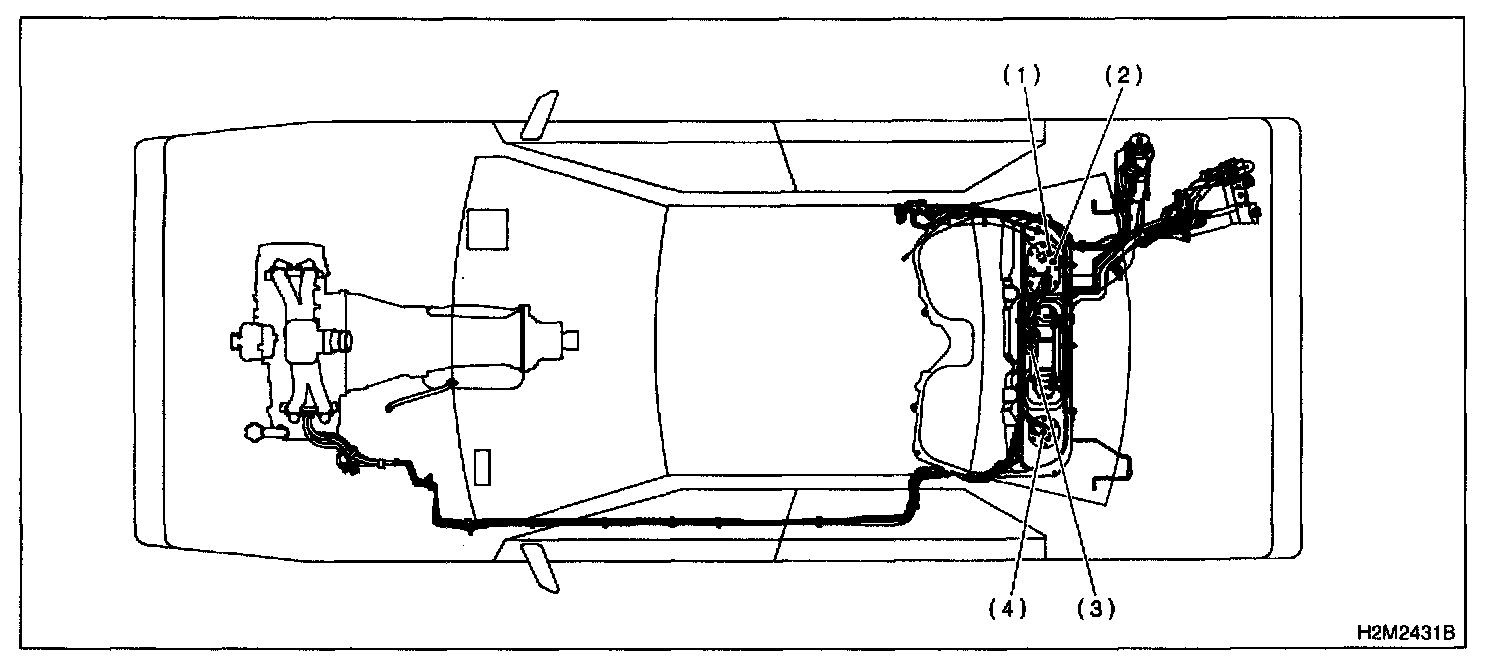

Component Location Overall View / Component Views:
1. Fuel level sensor
2. Fuel temperature sensor

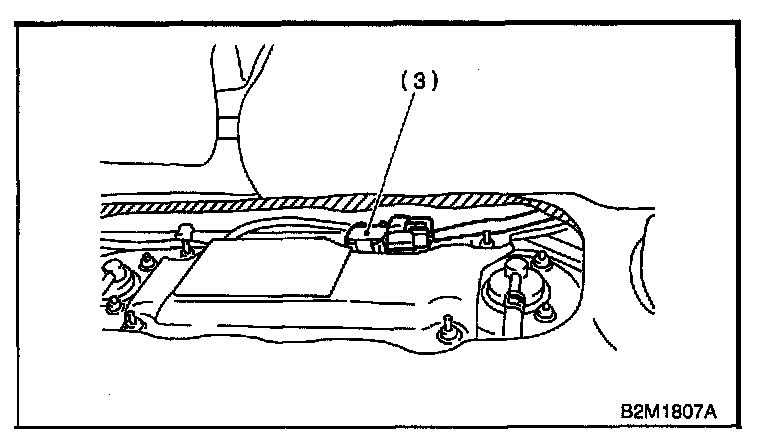

3. Fuel tank pressure sensor
4. Fuel sub level sensor
Solenoid Valve, Emission Control System Parts and Ignition System Parts
Component Location Overall View:

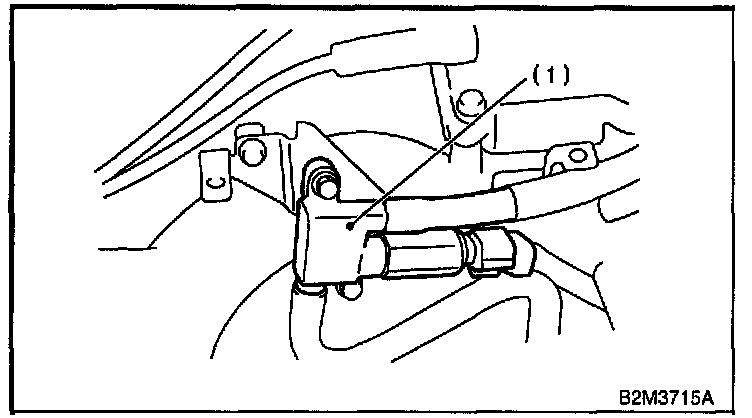

1. Air assist injector solenoid valve

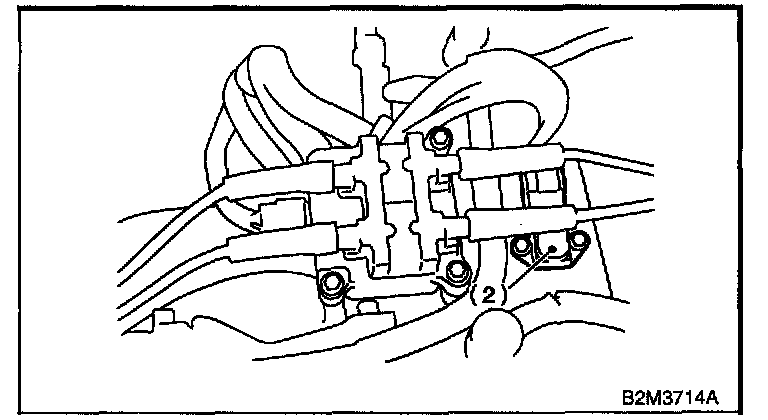

2. Idle air control solenoid valve
3. Purge control solenoid valve

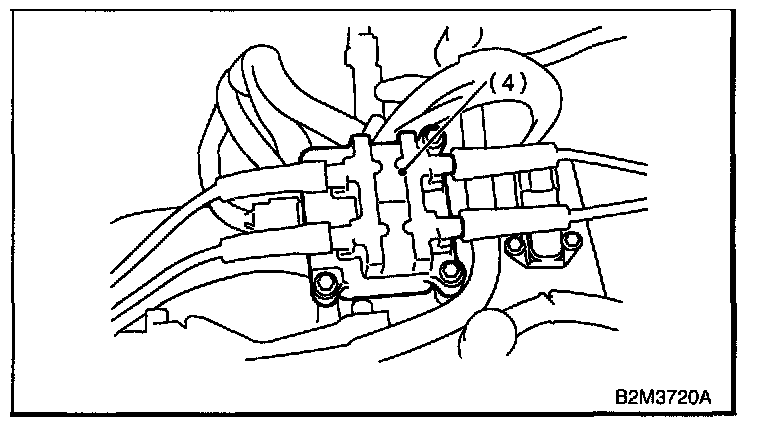

4. Ignition coil & ignitor ASSY

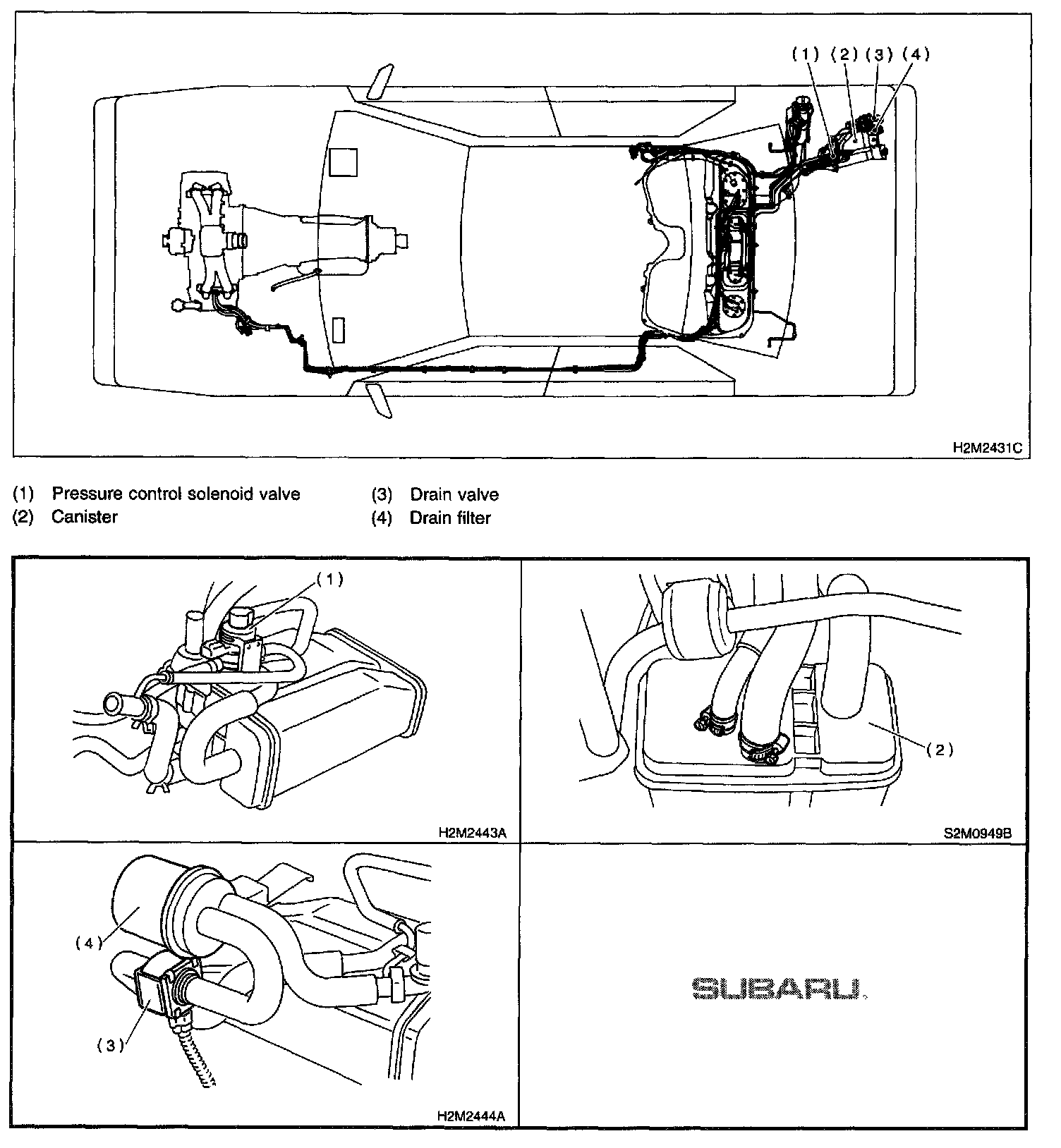

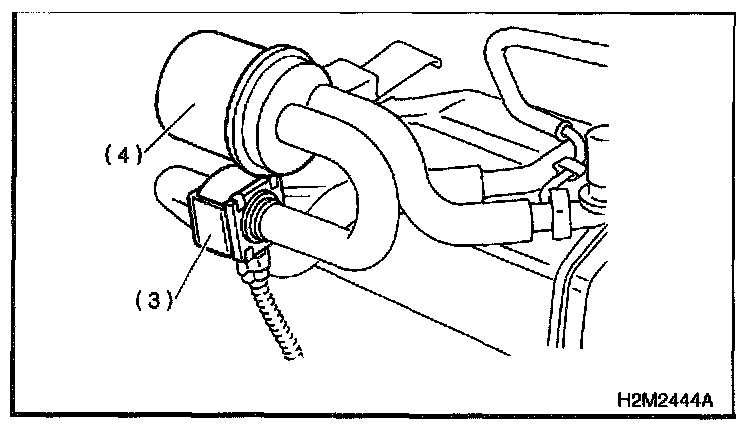

Component Location Overall View / Component Views:

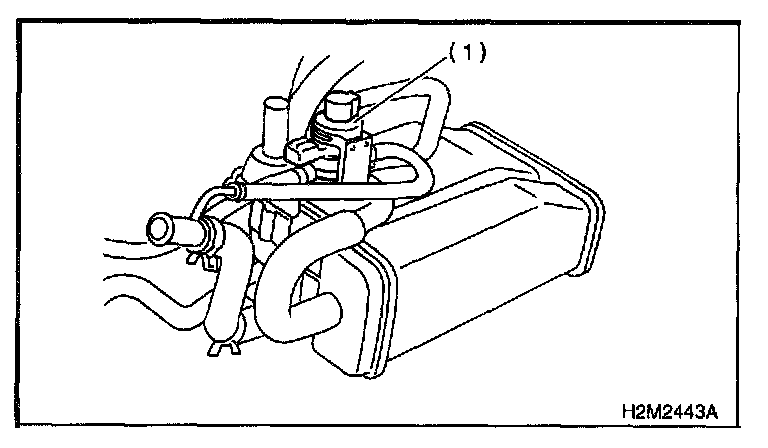

1. Pressure control solenoid valve

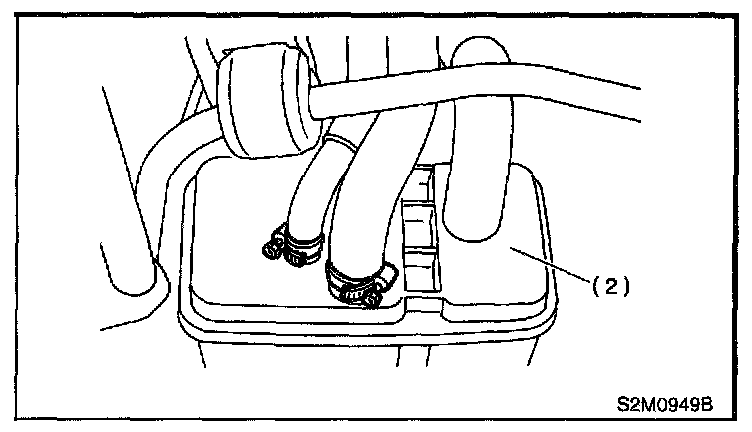

2. Canister
3. Drain valve
4. Drain filter

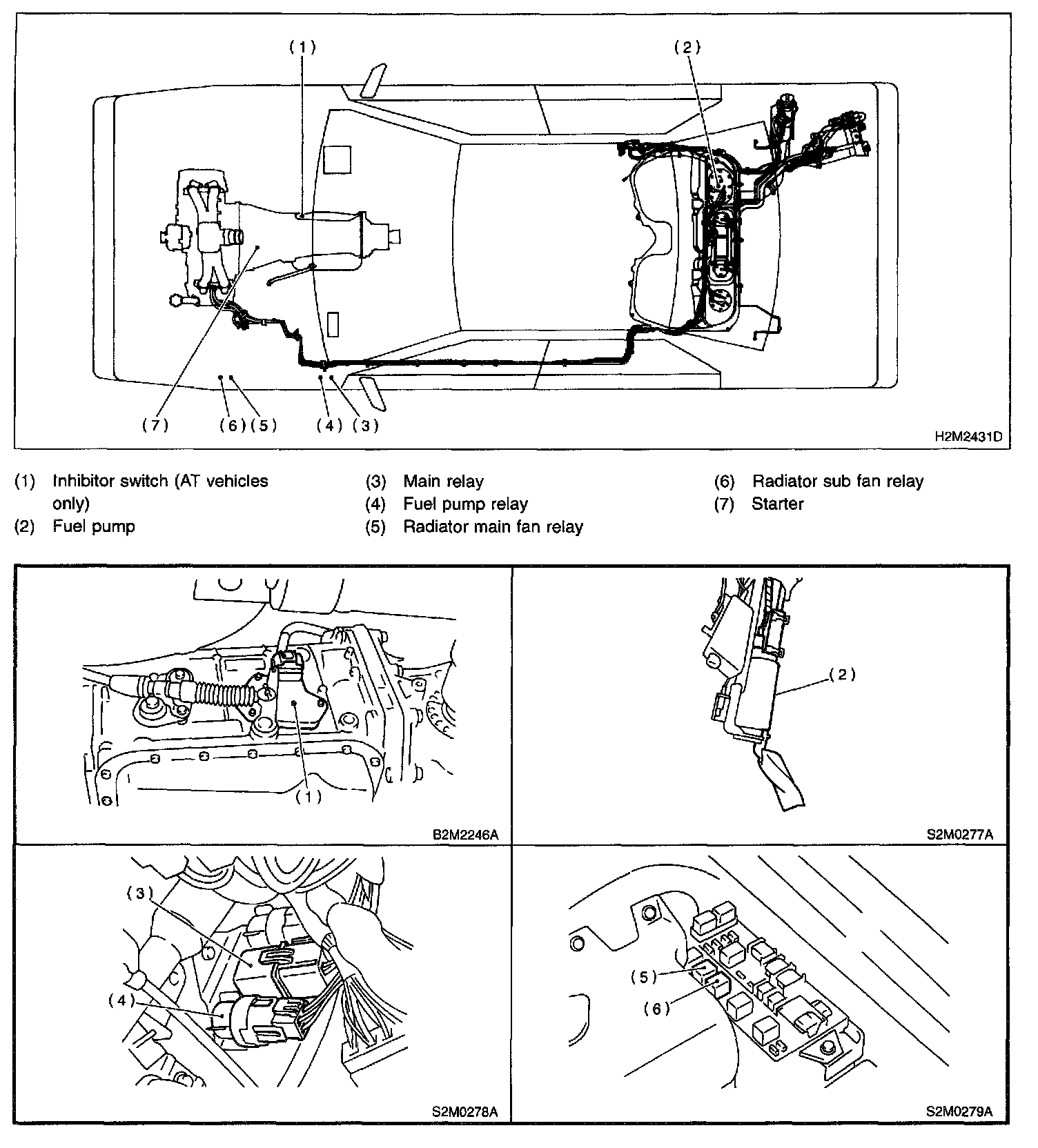

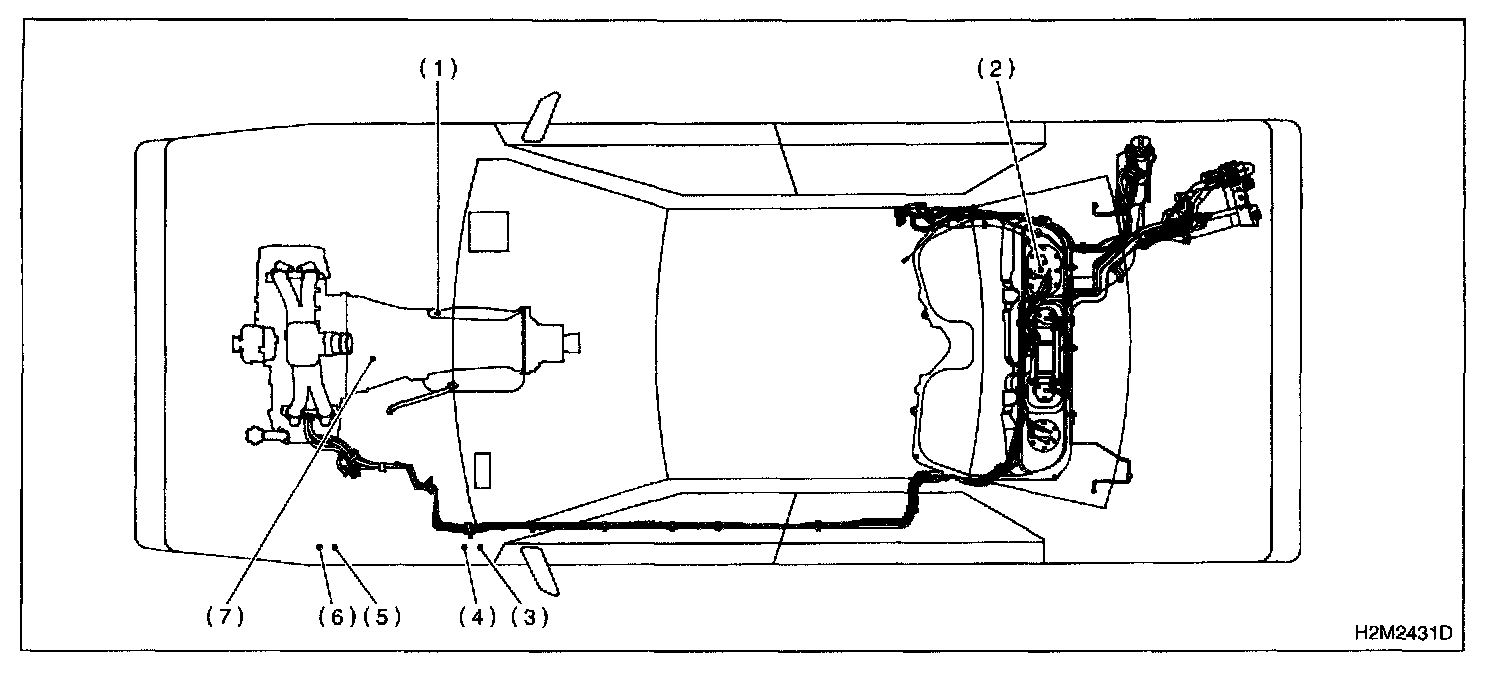

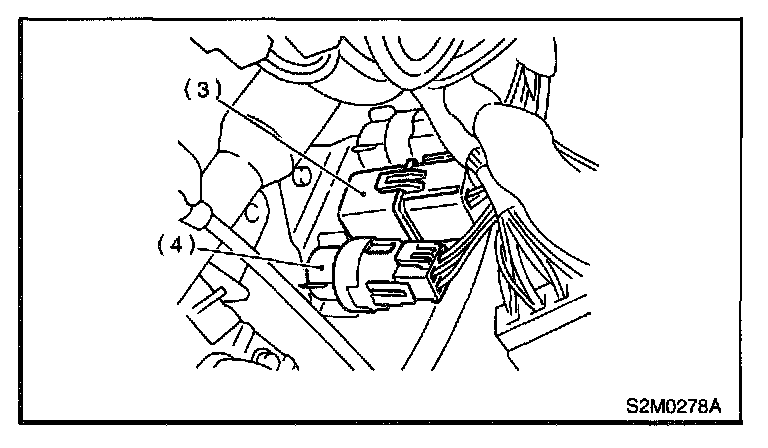

Component Location Overall View / Component Views:
1. Inhibitor switch (AT vehicles only)
2. Fuel pump
3. Main relay
4. Fuel pump relay
5. Radiator main fan relay
6. Radiator sub fan relay
7. Starter
