Fuel Filter: Service and Repair

REMOVAL

1. Release fuel pressure.

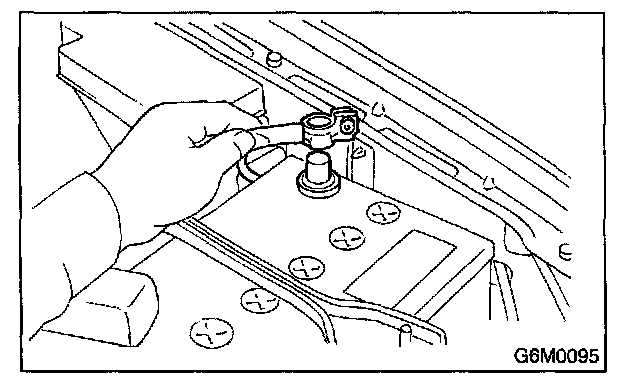

2. Disconnect battery ground cable.

3. Disconnect fuel delivery hoses from fuel filter.
4. Remove filter from holder.

INSTALLATION

CAUTION:
- If fuel hoses are damaged at the connecting portion, replace it with a new one.
- If clamps are badly damaged, replace with new ones.

1. Install in the reverse order of removal.

2. Tighten hose clamp screws.

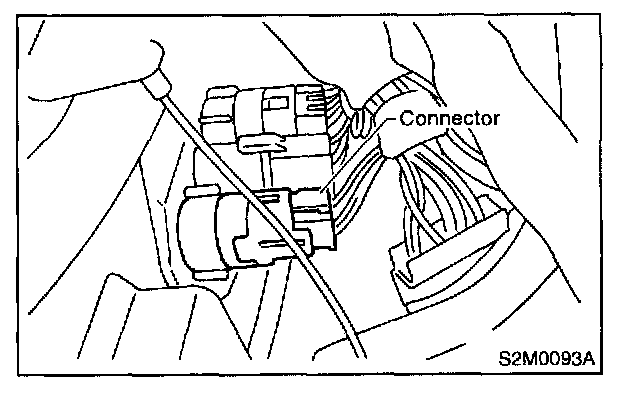

3. Connect connector to fuel pump relay.
