Liftgate Window Glass: Service and Repair

REAR GATE GLASS

REMOVAL

NOTE: It is impossible to remove the molding from the glass. If molding is broken, replace rear glass.

1. Remove rear wiper and rear gate trim.
2. Disconnect connector from rear defogger terminal.
3. Remove high mount stop light.
4. Remove glass in same manner as for windshield.

CAUTION: Be careful not to damage molding re-installing the old rear window glass using a piano wire.

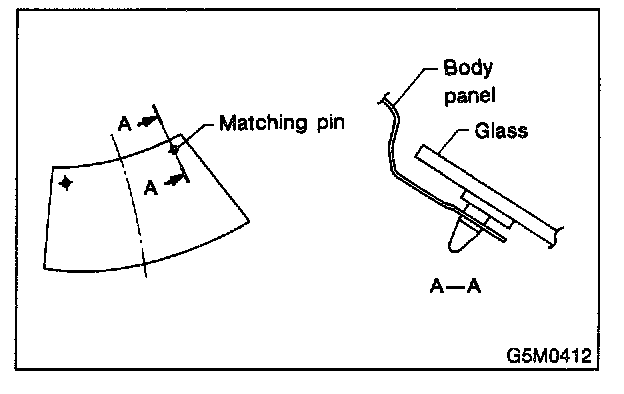

NOTE: A matching pin is cemented to corners of glass on compartment side. Use a piano wire when cutting each pin.


INSTALLATION

1. Install rear gate trim.




2. Install glass in same manner as windshield.
3. About one hour after installation, test for water leakage. Leave vehicle for 24 hours before using it.
4. Connect rear defogger connections.
5. Install high mount stop light and rear wiper.
