Throttle Position Sensor: Service and Repair
REMOVAL 1.

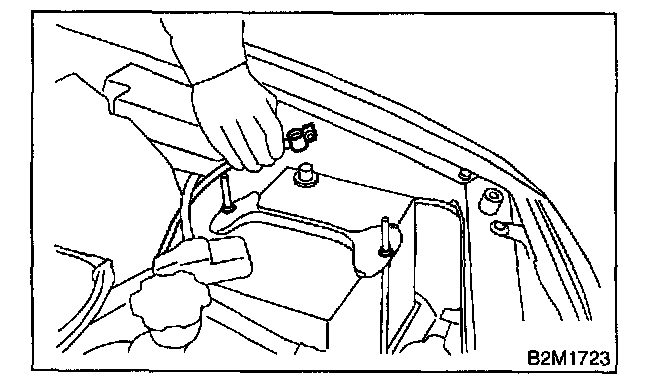

Disconnect battery ground cable.
2.

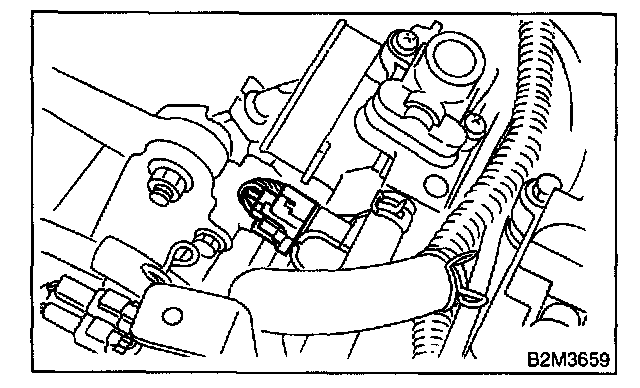

Disconnect connector from
throttle position sensor.
3.

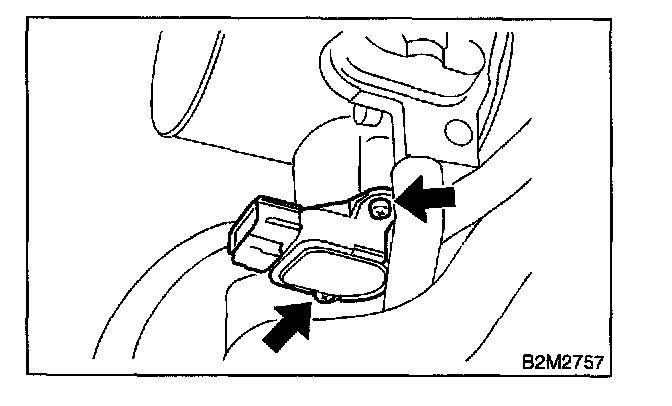

Remove
throttle position sensor holding screws, and remove throttle position sensor itself.

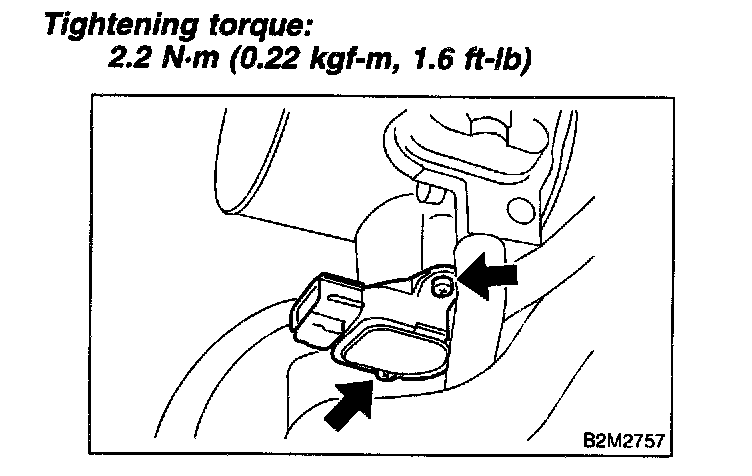

INSTALLATIONInstall in the reverse order of removal.
CAUTION: When installing
throttle position sensor, adjust the position to match with the specified data.
