Fuel Injector Circuit

CAUTION:
- Check or repair only faulty parts.
- After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

Wiring Diagram:

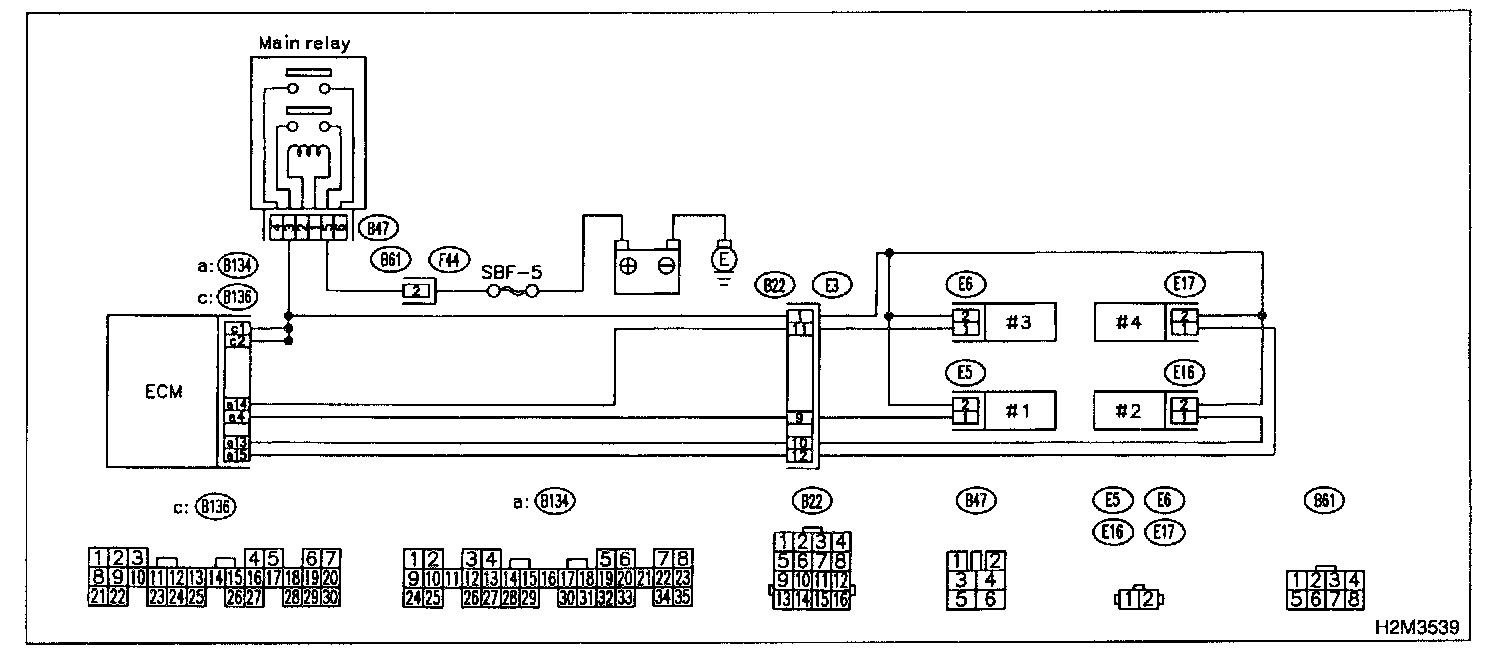

WIRING DIAGRAM

Step 1 - 2:

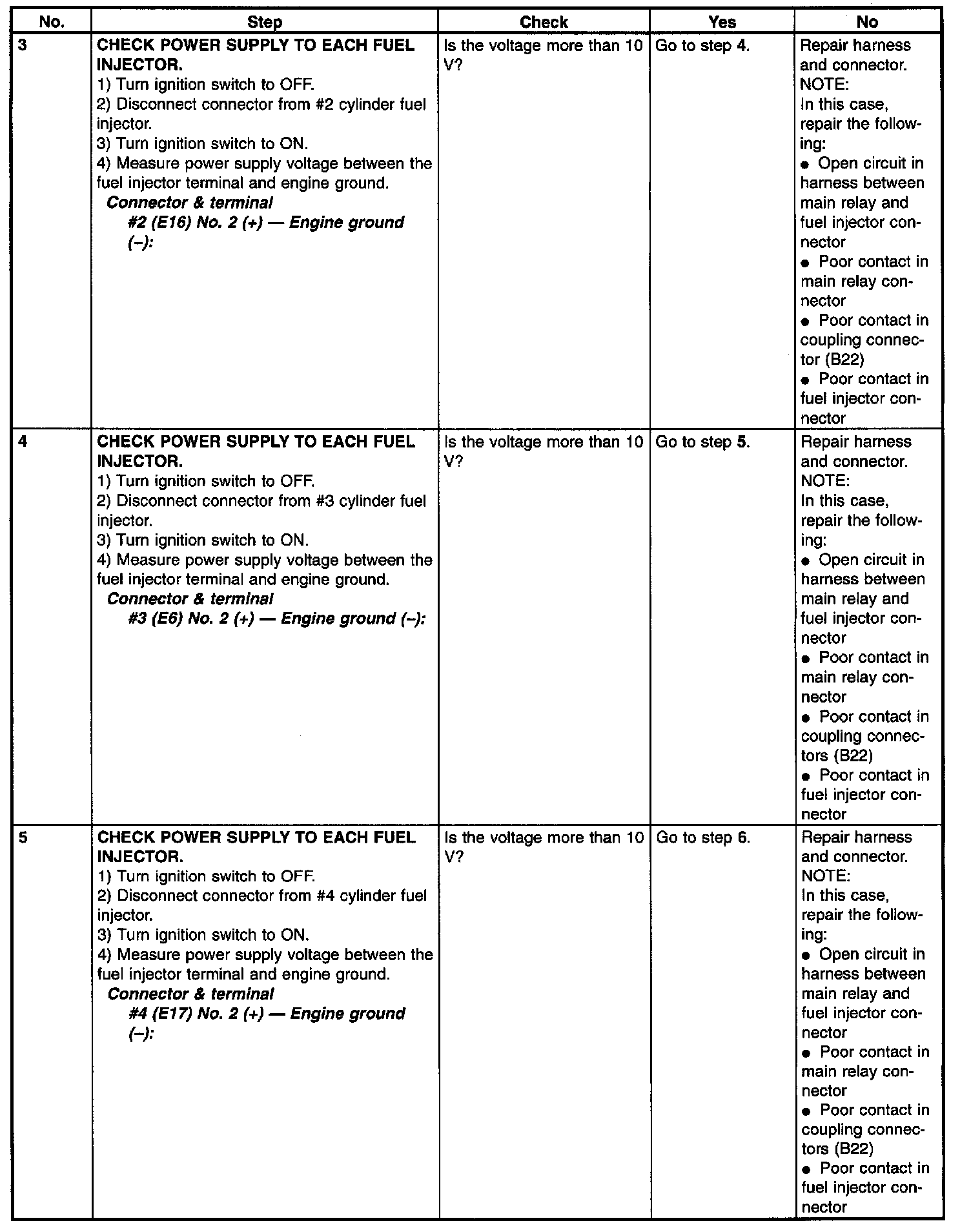

Step 3 - 5:




Step 6 - 11:

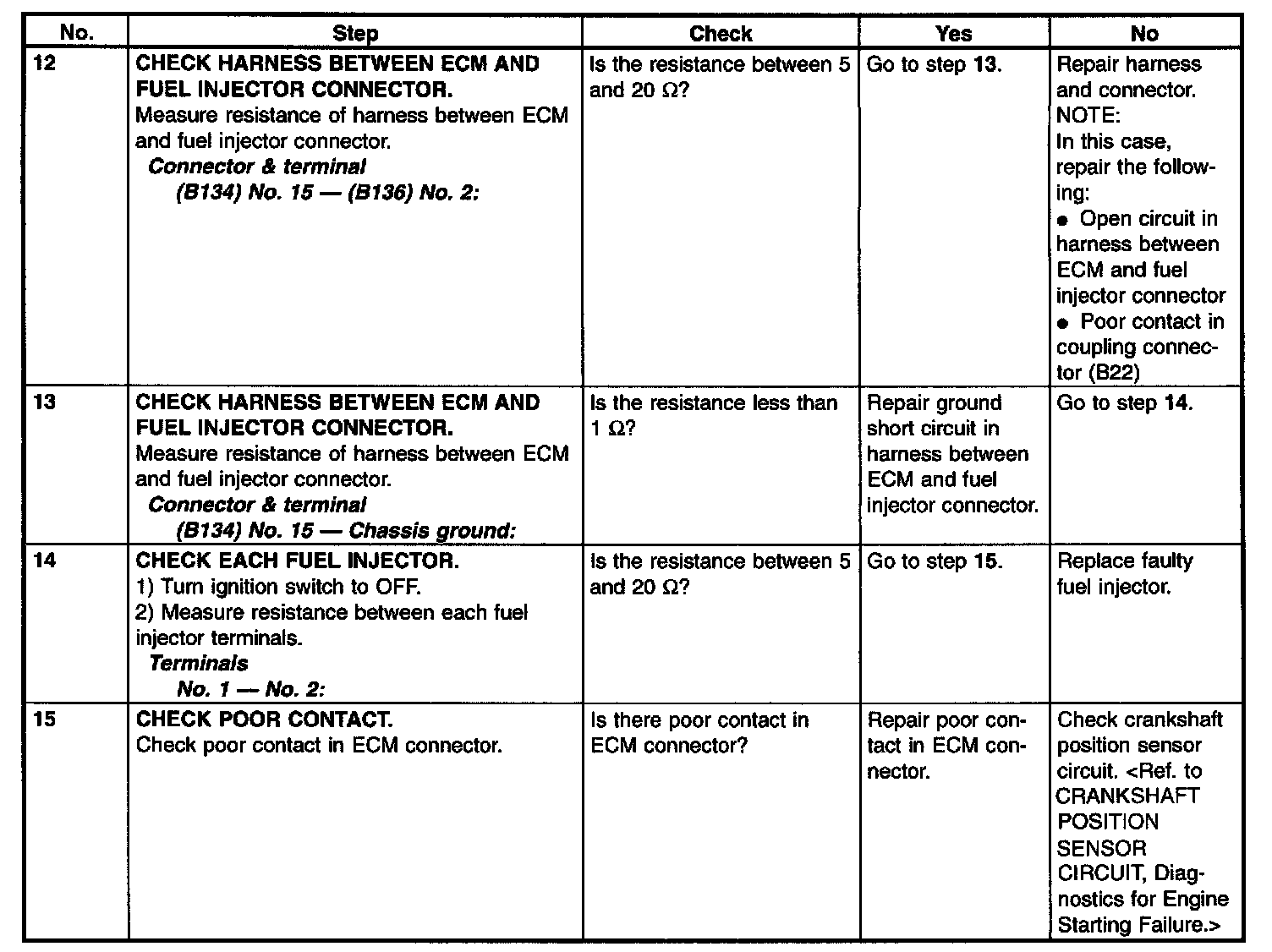

Step 12 - 15:
