Drive Belt: Testing and Inspection
C: INSPECTION 1.
Replace belts, if cracks, fraying or wear is found.
2.
Check
drive belt tension and adjust it if necessary by changing generator installing position and/or idler pulley installing position.

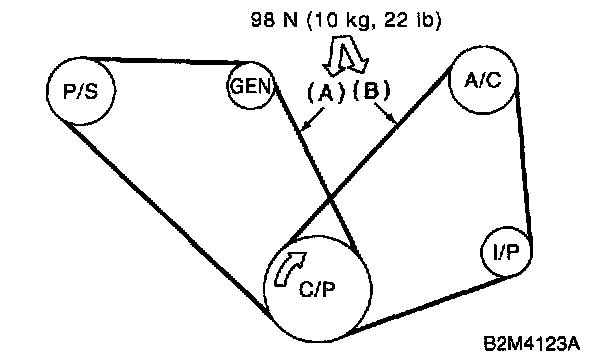

Belt tension
(A)
replaced:
7 - 9 mm (0.276 - 0.354 inch) reused:
9 - 11 mm (0.354 - 0.433 inch) (B)
replaced:
7.5 - 8.5 mm (0.295 - 0.335 inch) reused:
9.0 - 10.0 mm (0.354 - 0.394 inch)
