Engine (MT Vehicles)

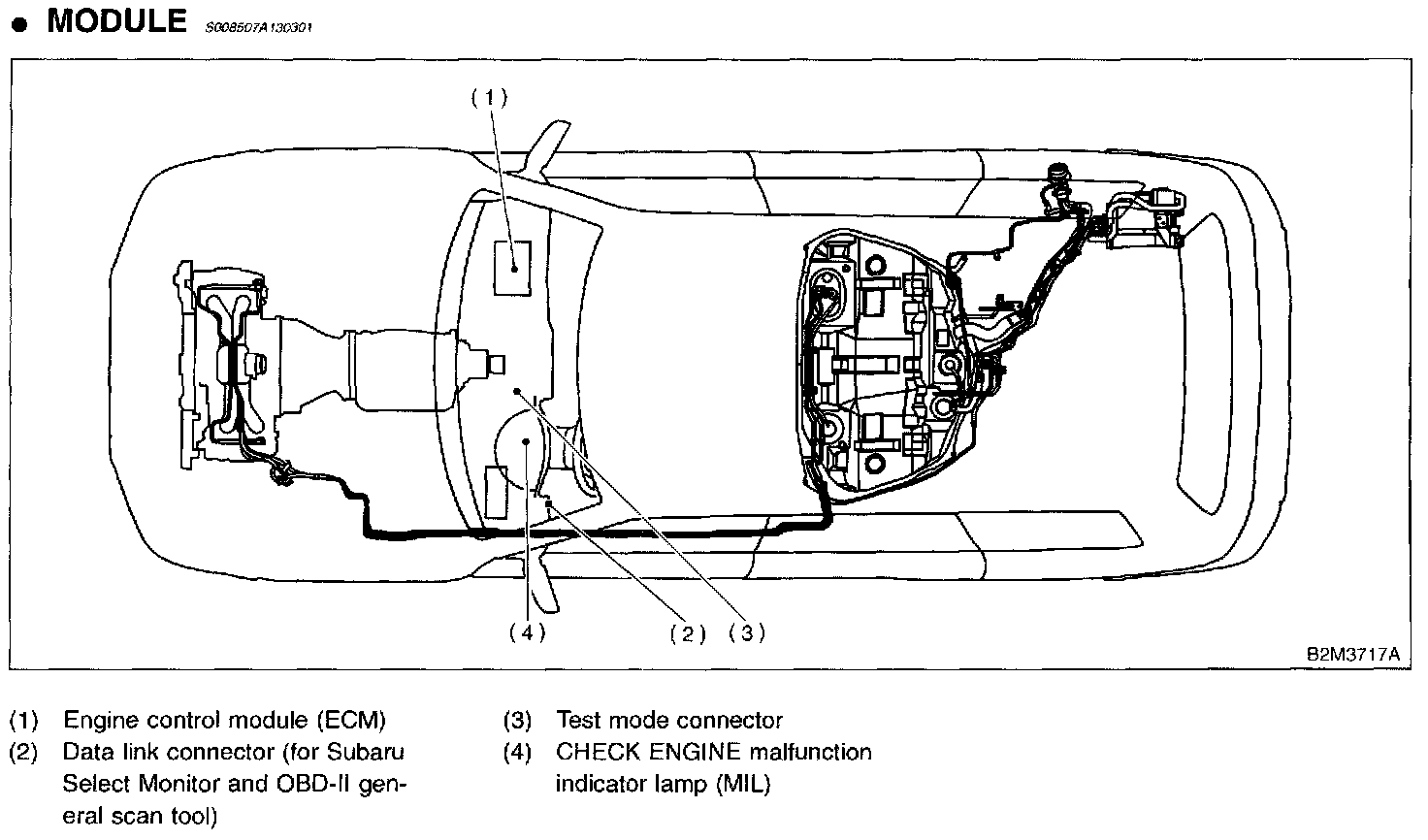

Module

Component Location Overall View:

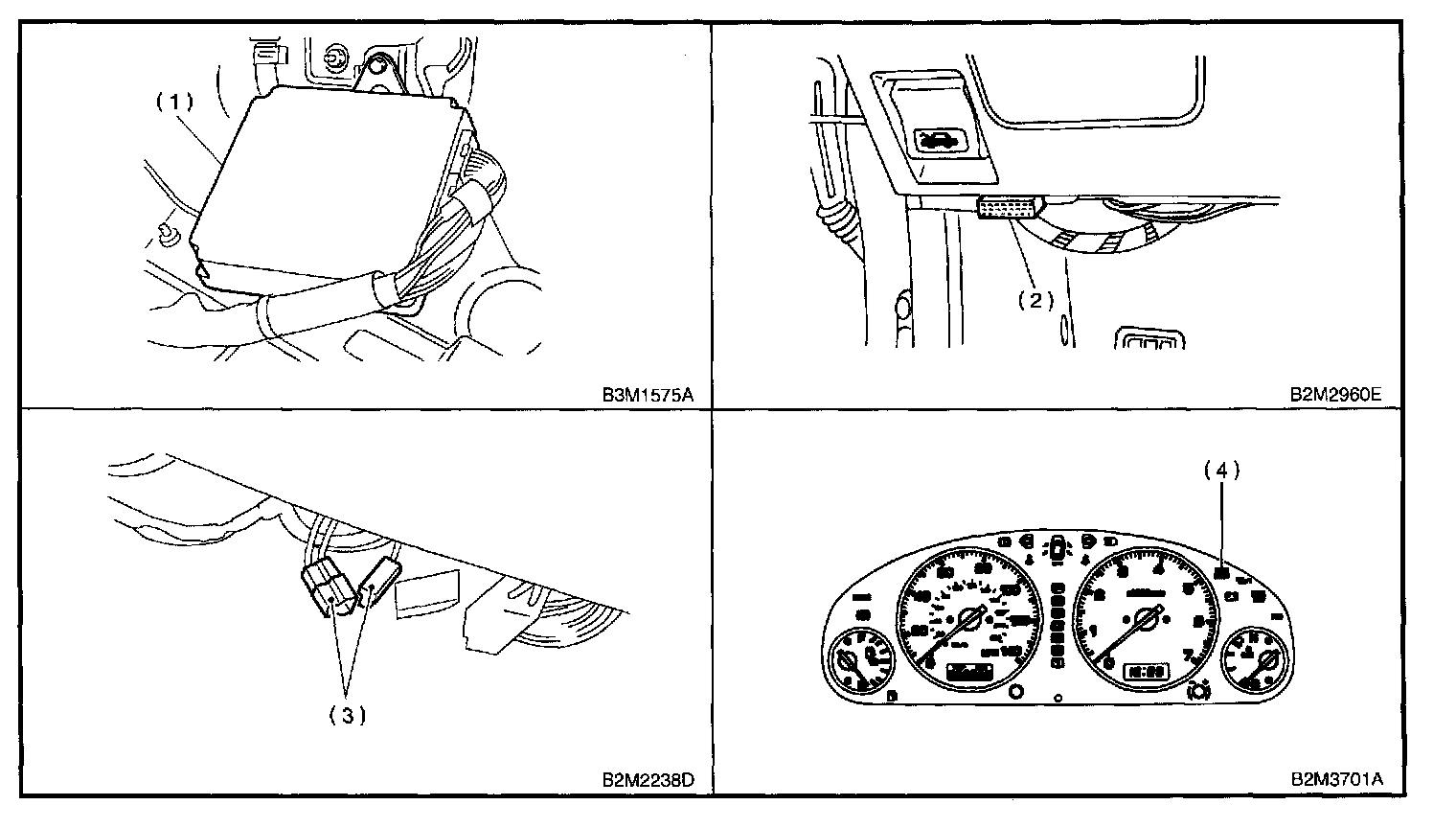

Component Views:

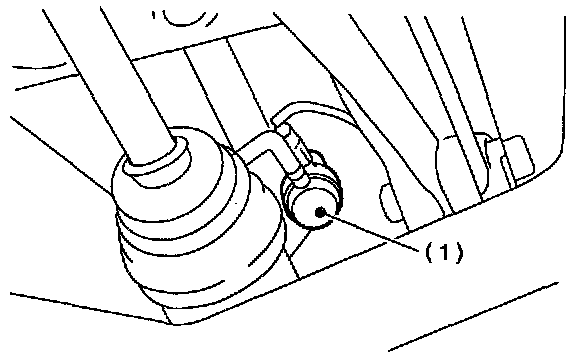

1. Engine control module (ECM)
2. Data link connector (for Subaru Select Monitor and OBD-II general scan tool)
3. Test mode connector

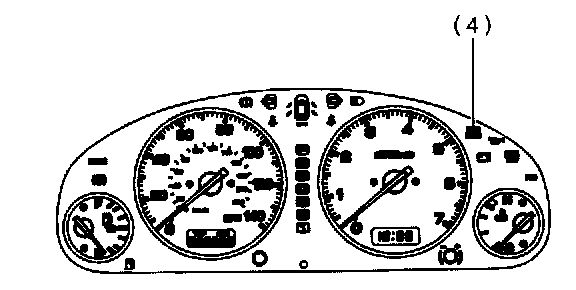

4. CHECK ENGINE malfunction indicator lamp (MIL)

Sensor

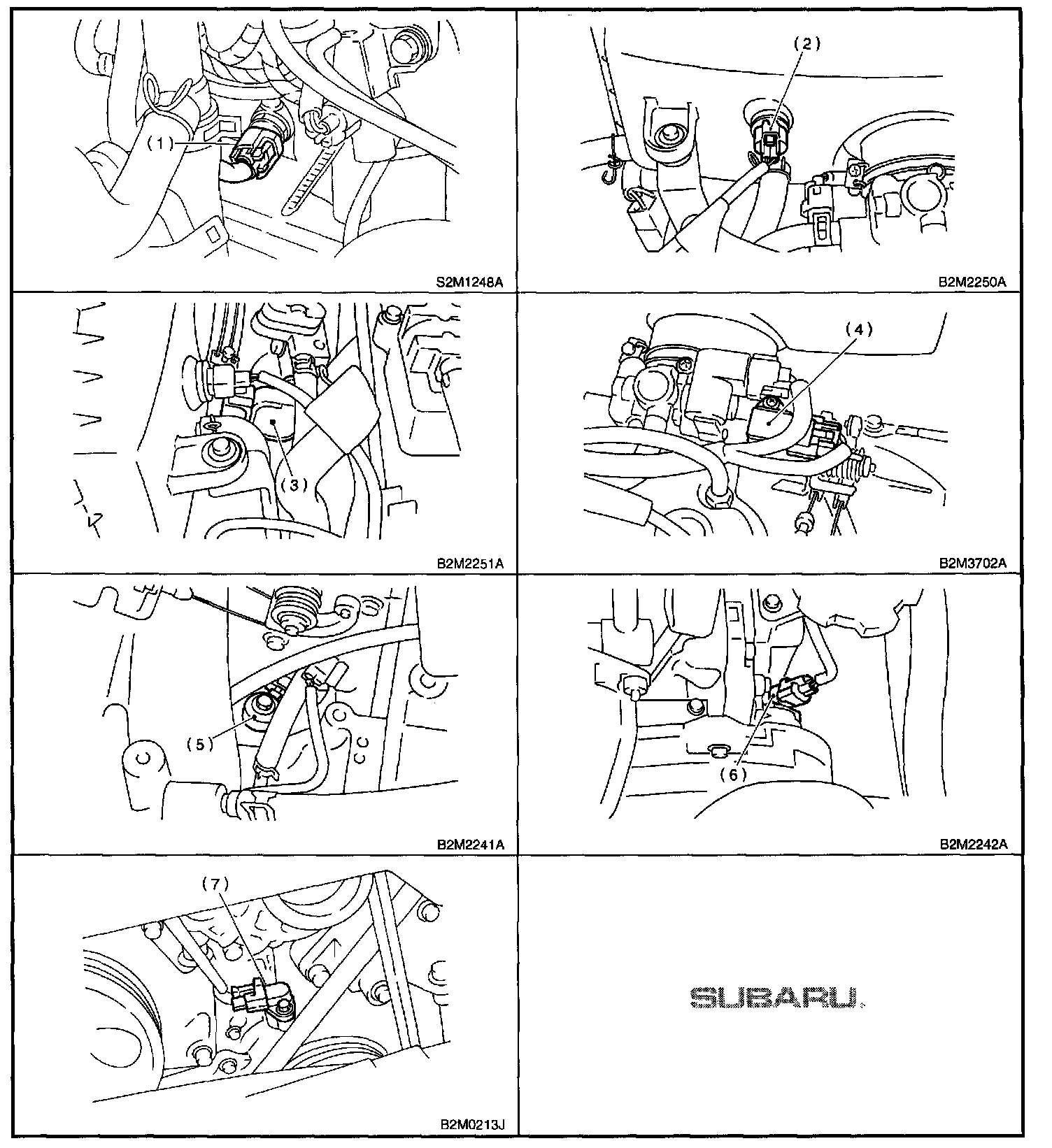

Component Location Overall View:

Component Views:

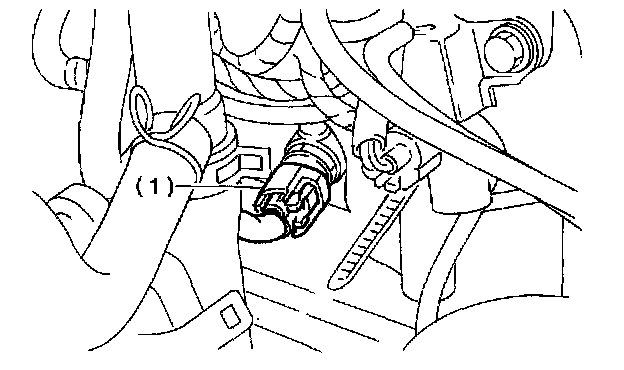

1. Engine coolant temperature sensor
2. Intake air temperature sensor

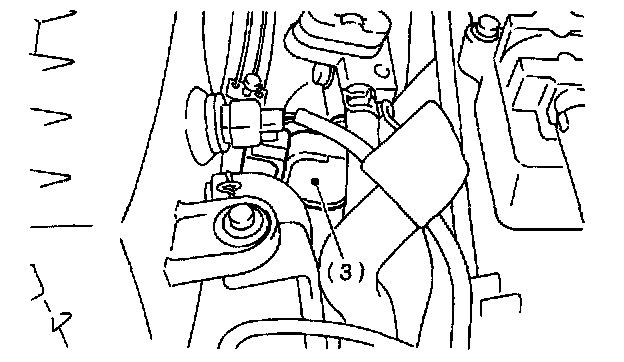

3. Throttle position sensor

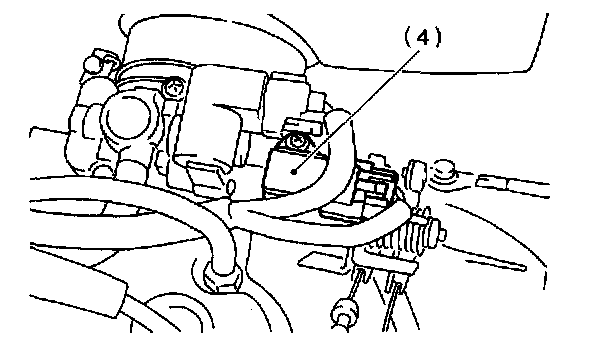

4. Intake manifold pressure sensor
5. Knock sensor

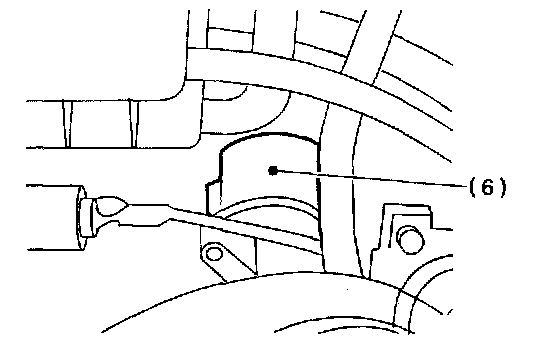

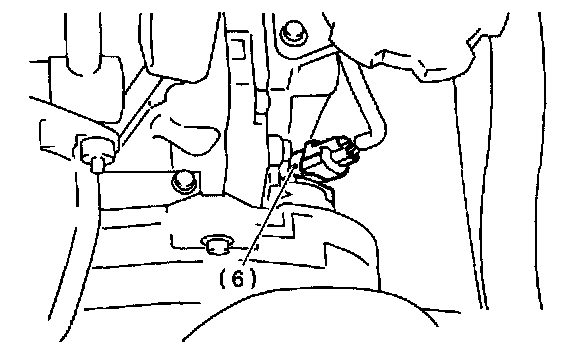

6. Camshaft position sensor

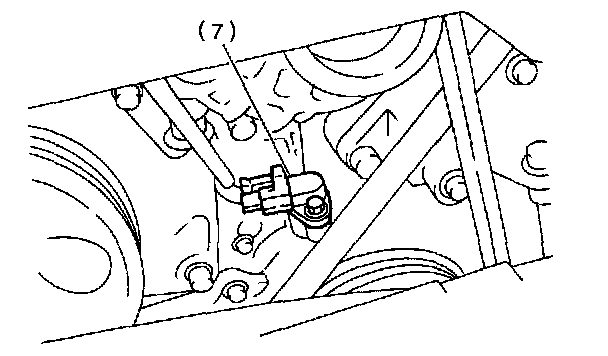

7. Crankshaft position sensor

Component Location Overall View / Component Views:

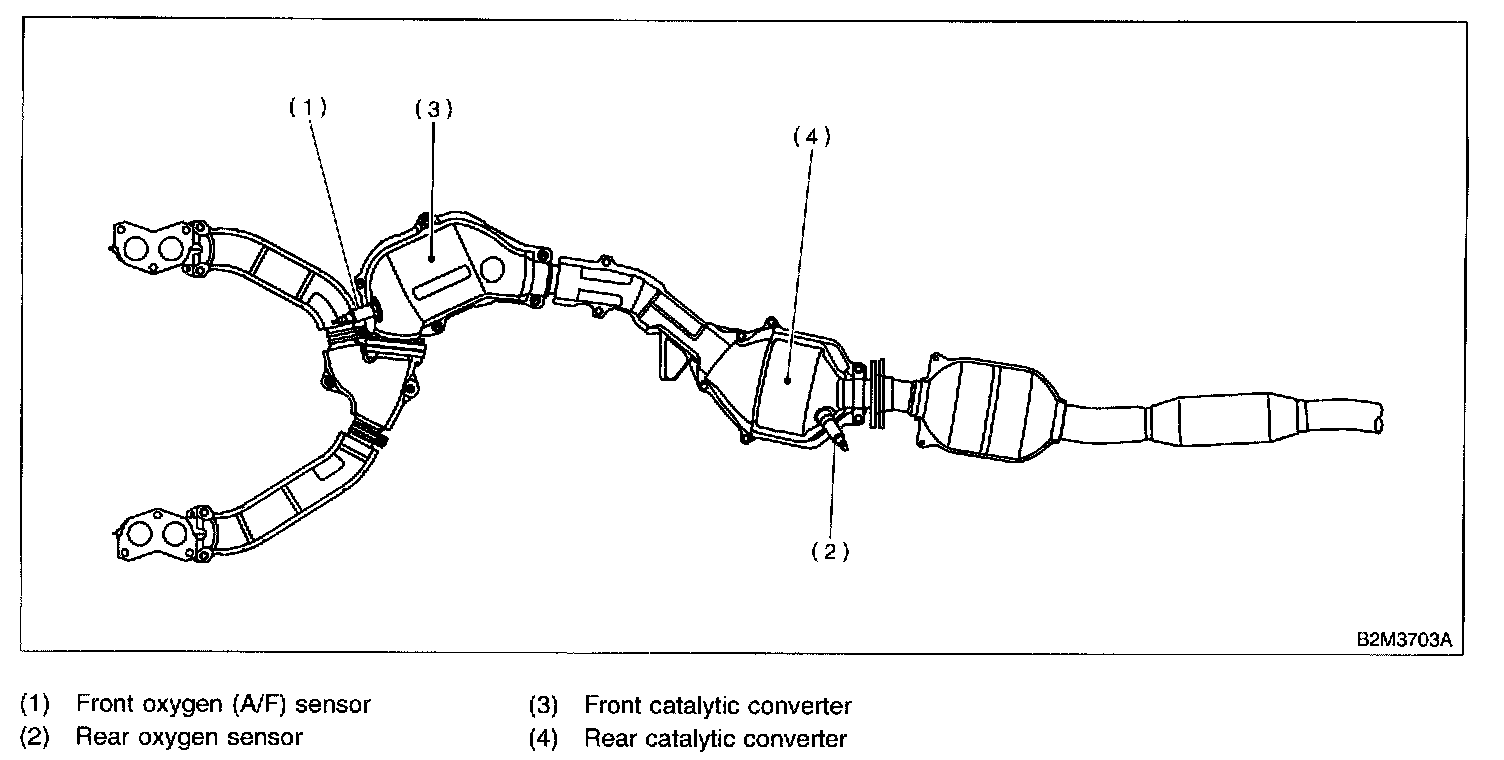

Component Location Overall View:

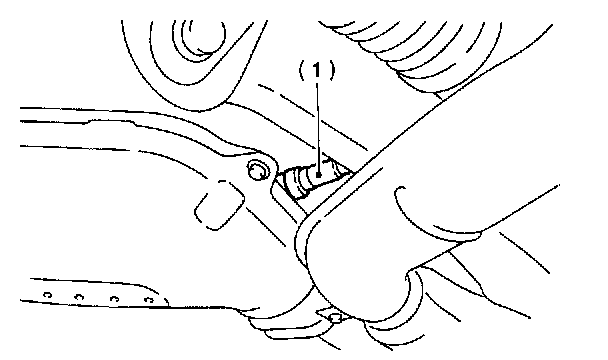

1. Front oxygen (A/F) sensor

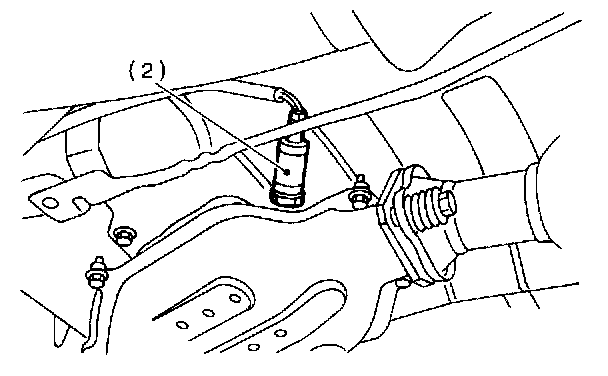

2. Rear oxygen sensor
3. Front catalytic converter

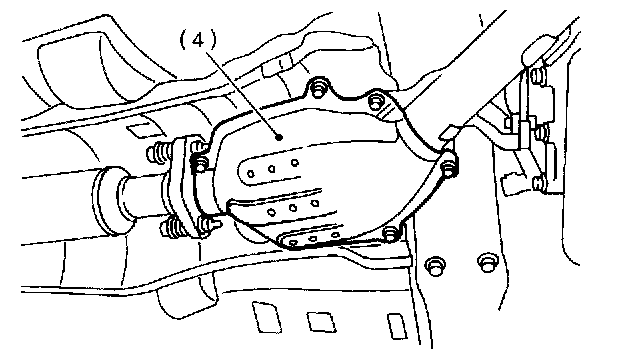

4. Rear catalytic converter

Component Location Overall View / Component Views:

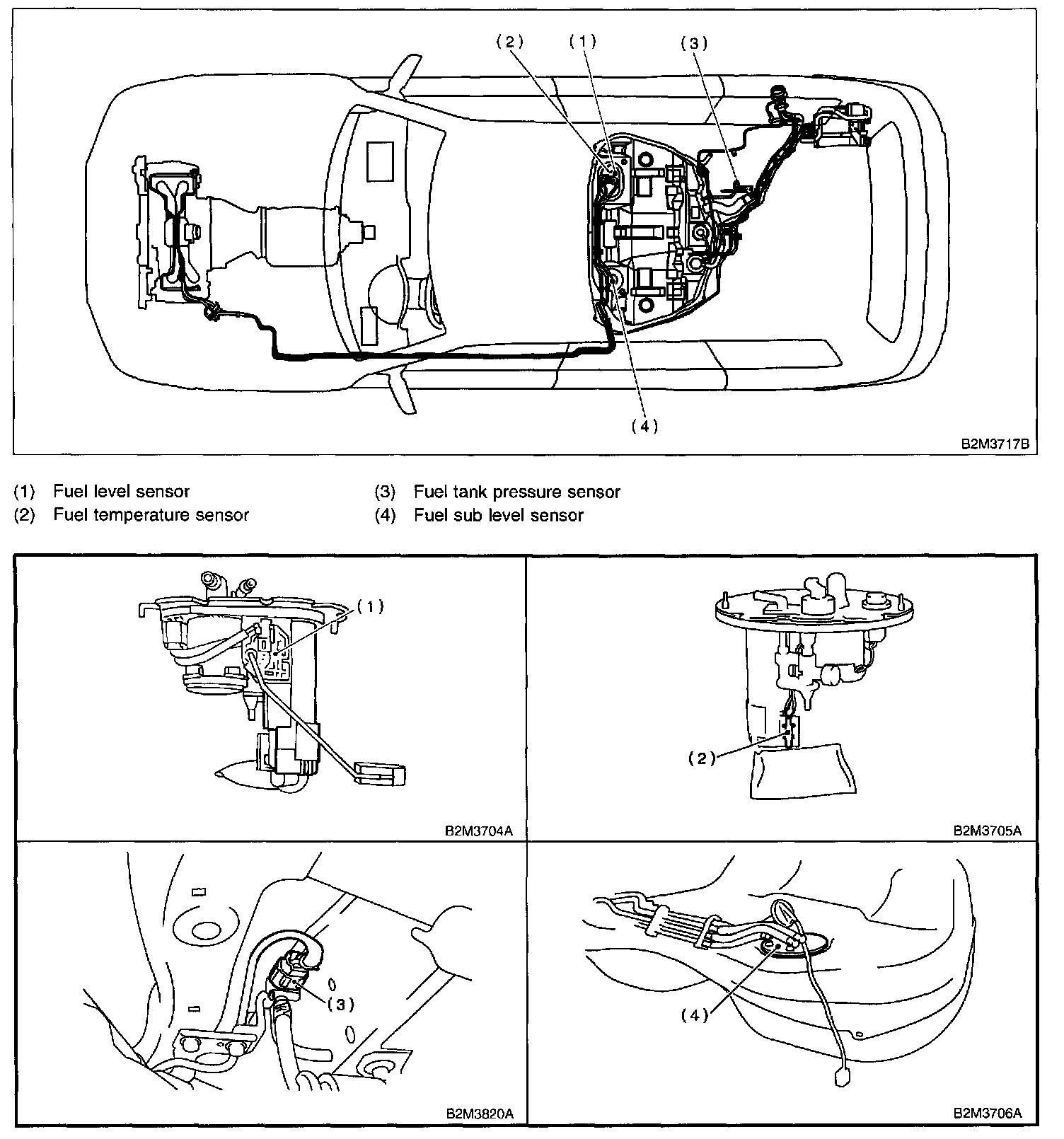

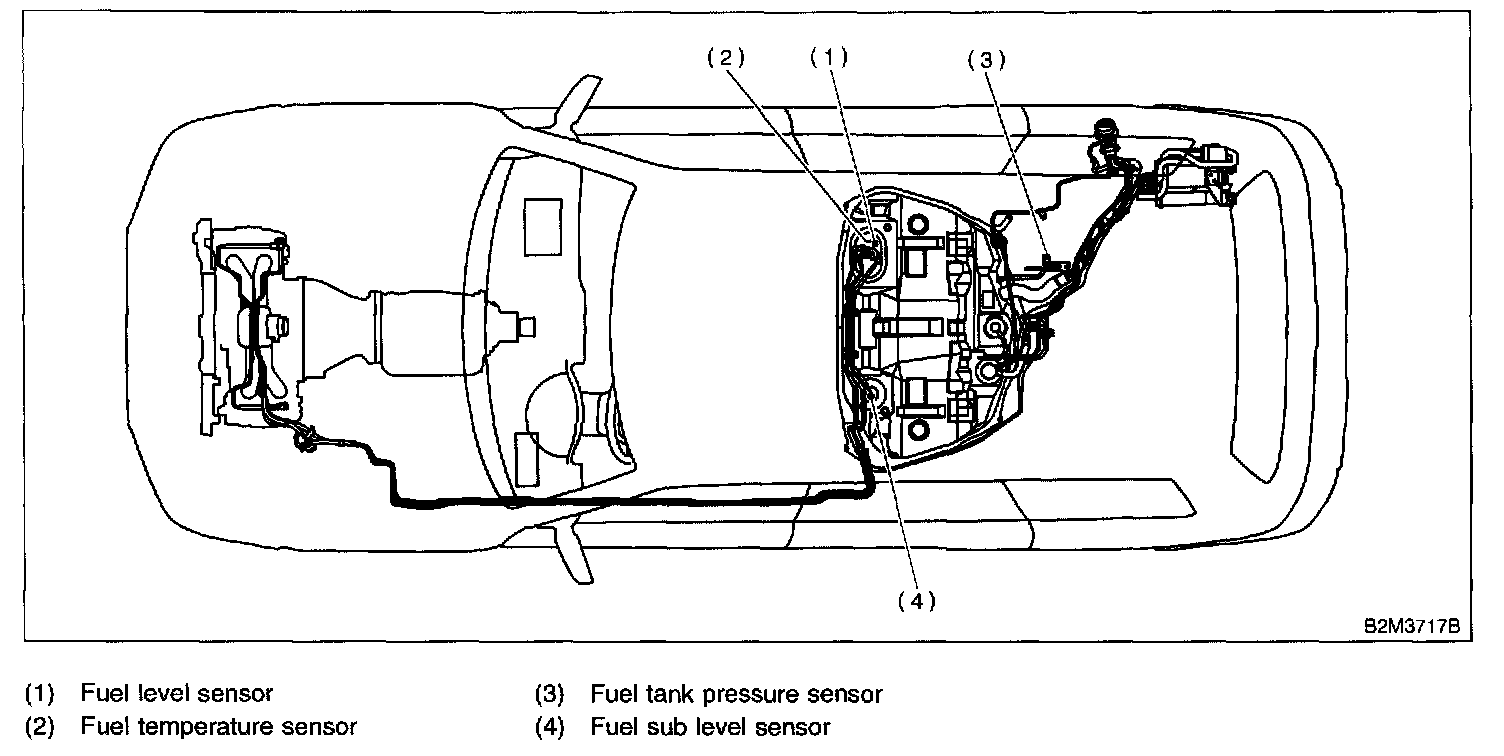

Component Location Overall View:

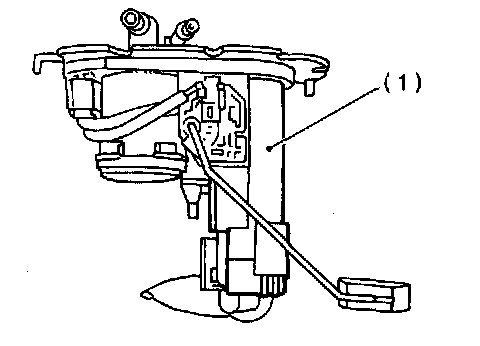

1. Fuel level sensor

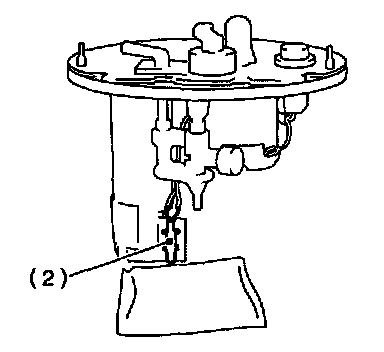

2. Fuel temperature sensor

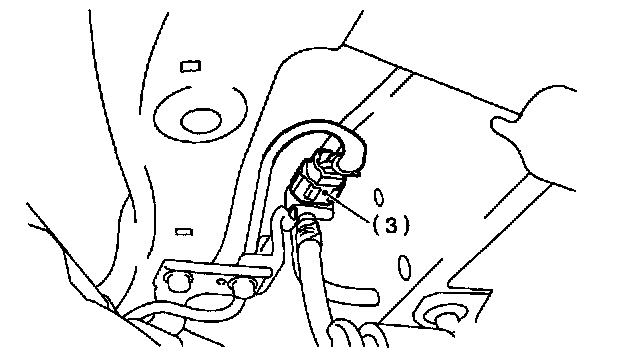

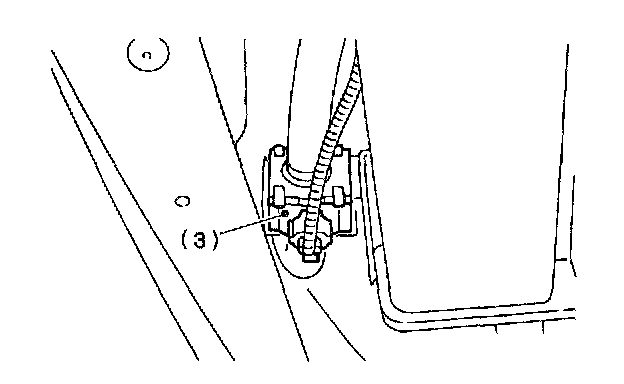

3. Fuel tank pressure sensor

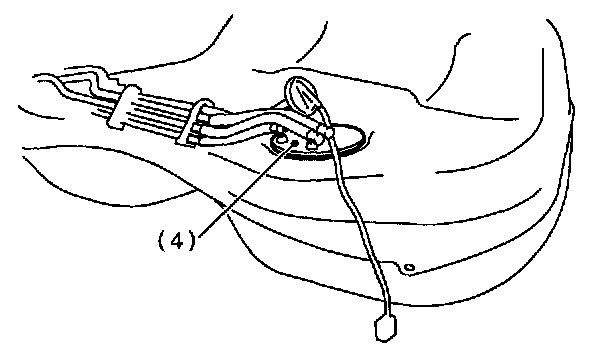

4. Fuel sub level sensor

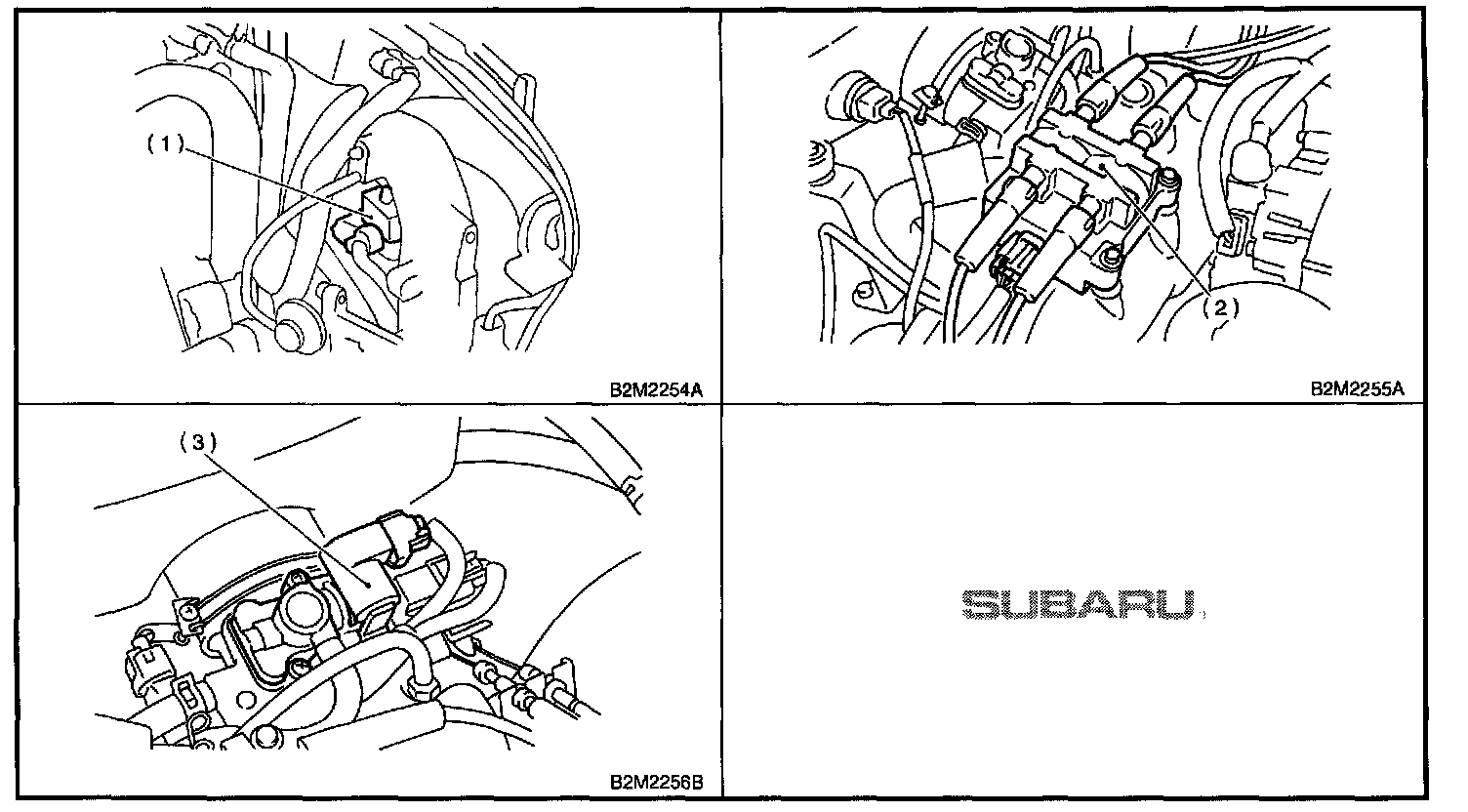

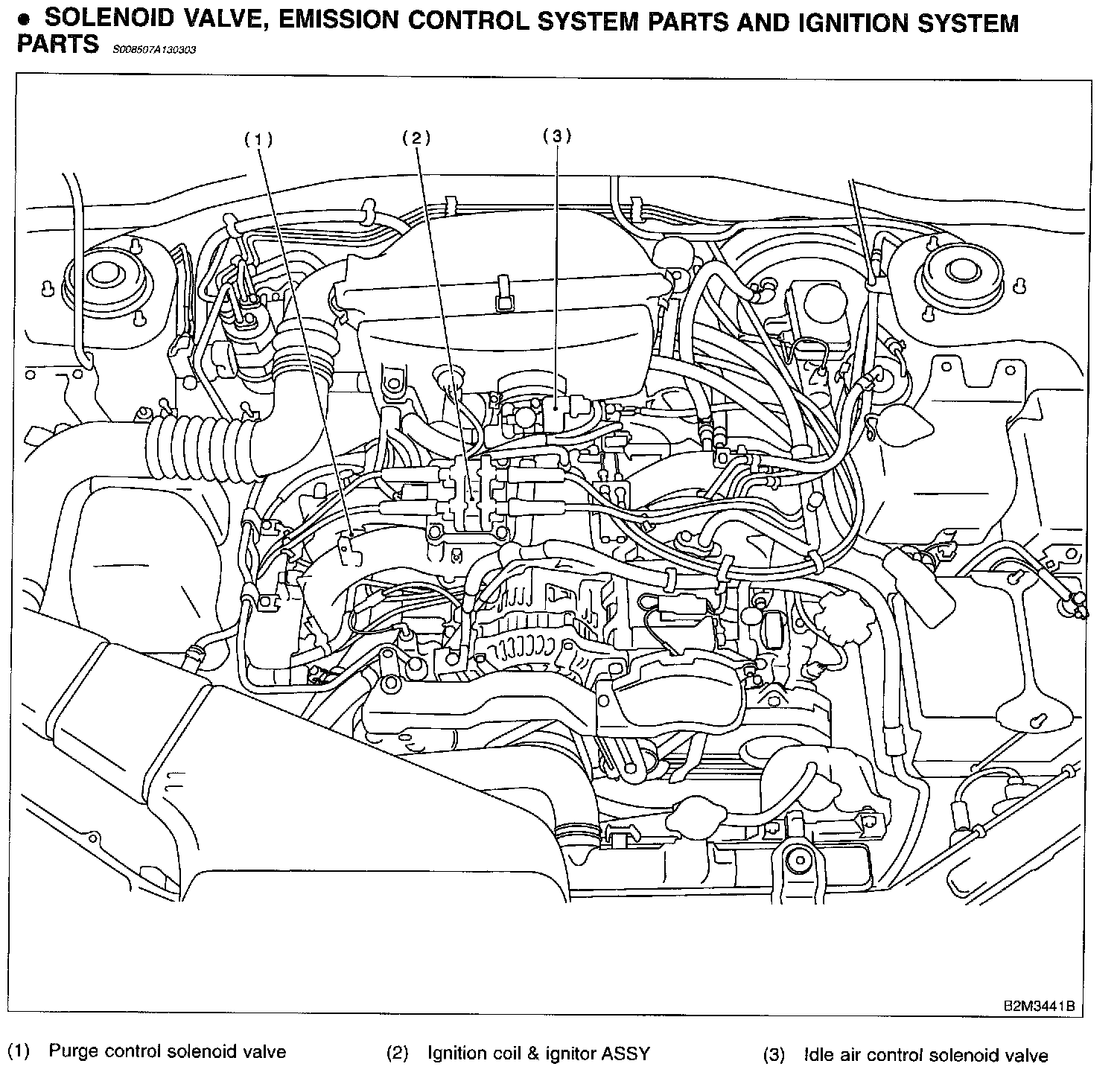

Component Location Overall View:

Component Views:

1. Purge control solenoid valve

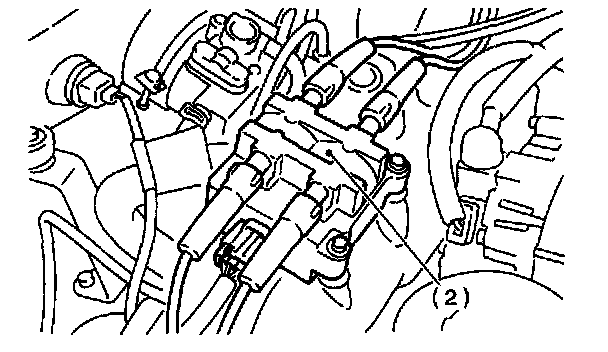

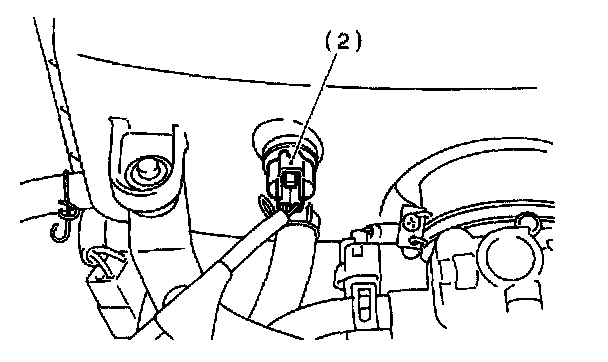

2. Ignition coil & ignitor ASSY

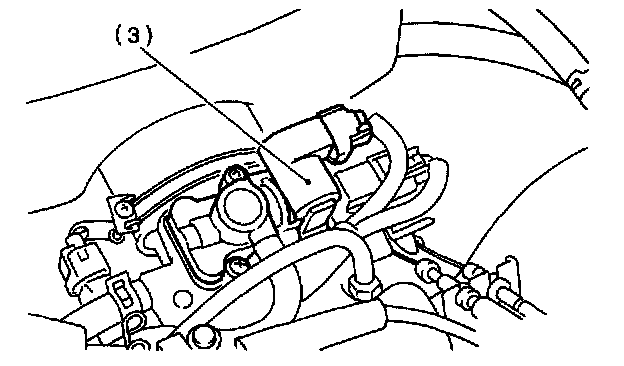

3. Idle air control solenoid valve

Component Location Overall View / Component Views:

Component Location Overall View:

1. Pressure control solenoid valve

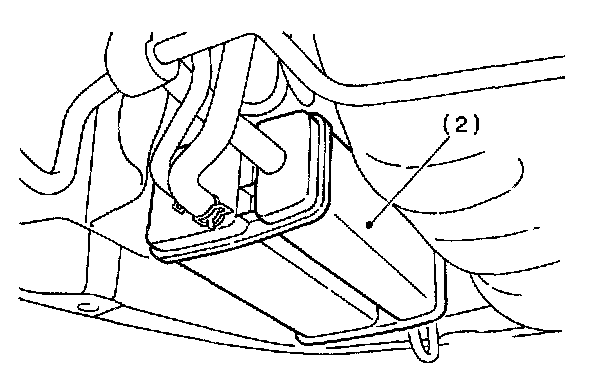

2. Canister
3. Drain valve
4. Drain filter

Component Location Overall View:

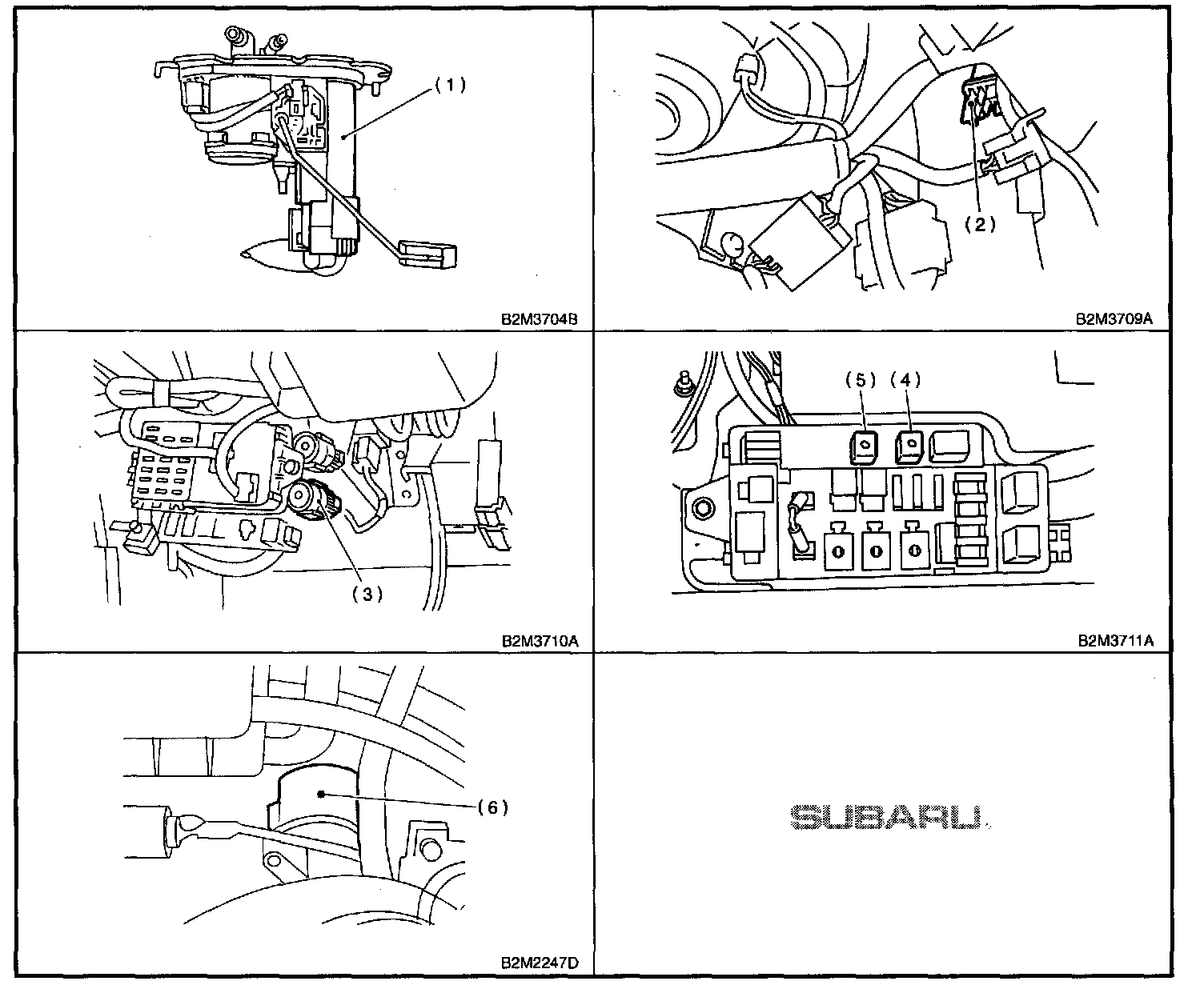

Component Views:

1. Fuel pump

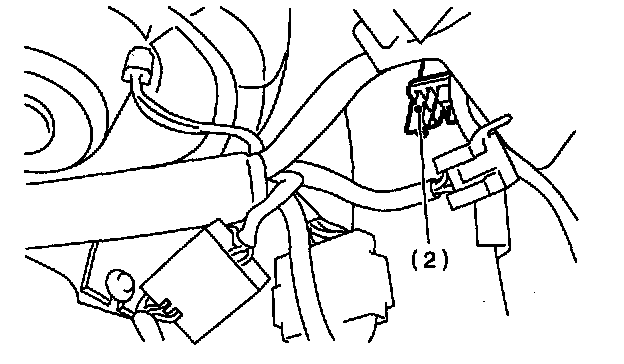

2. Main relay

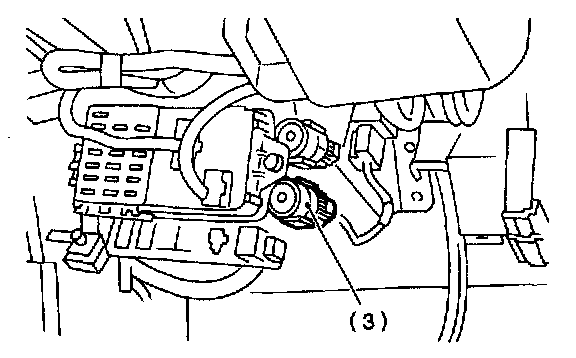

3. Fuel pump relay

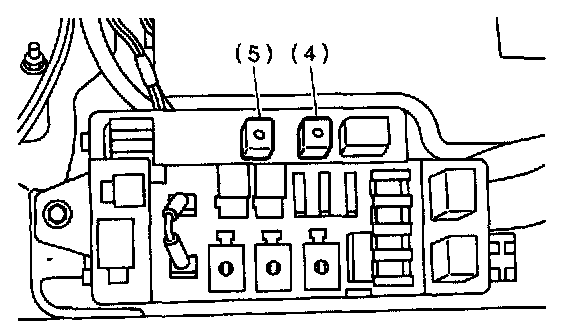

4. Radiator main fan relay
5. Radiator sub fan relay
6. Starter
