Clutch Switch: Testing and Inspection
C: INSPECTION 1.
If
clutch switch does not operate properly (or if it does not stop at the specified position), replace with new one.

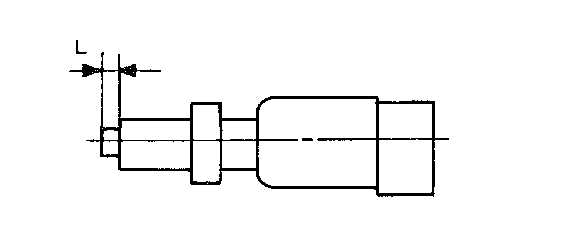

Specified position: L
2 +1.5/0 mm (0.079 +059/0 inch) 2.
Check

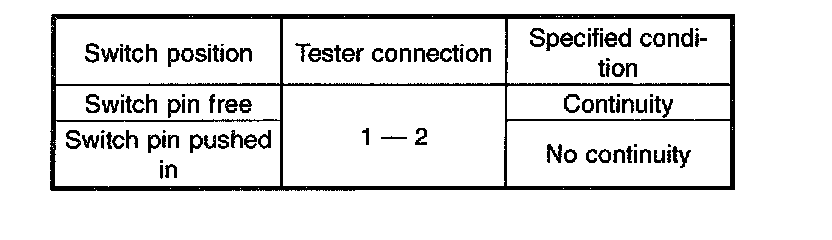

clutch switch continuity. If continuity is not as specified, replace the switch.
^

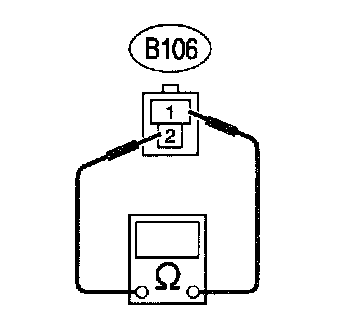

Clutch switch (Starter interlock)
^

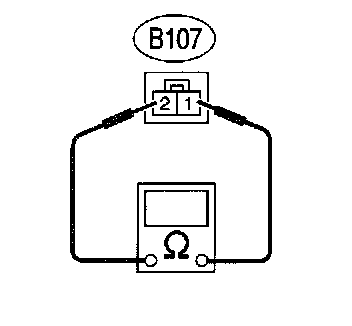

Clutch switch (With cruise control)
