Alarm Module: Adjustments

ADJUSTMENT / IMPACT SENSITIVITY

NOTE: Before adjustment, make sure the security control module has been securely installed on the bracket.

1. Remove security control module. Service and Repair>

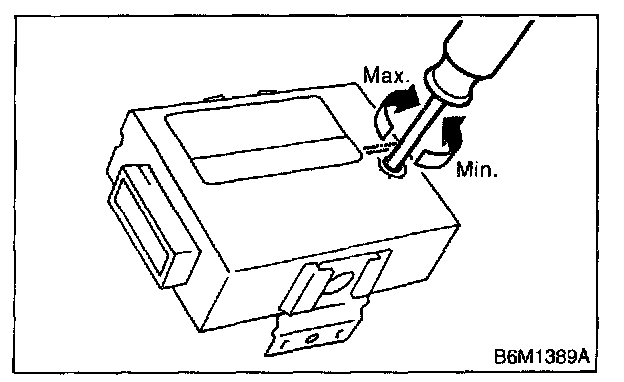

2. Adjust the sensitivity adjust screw in security control module.

NOTE: After adjusting, be sure to plug the adjust screw hole.

3. Install security control module.
4. Perform impact sensitivity test.
