Alarm Module: Service and Repair

Security Control Module / REMOVAL
1. Disconnect battery ground cable.
2. Remove shift knob (MT model).

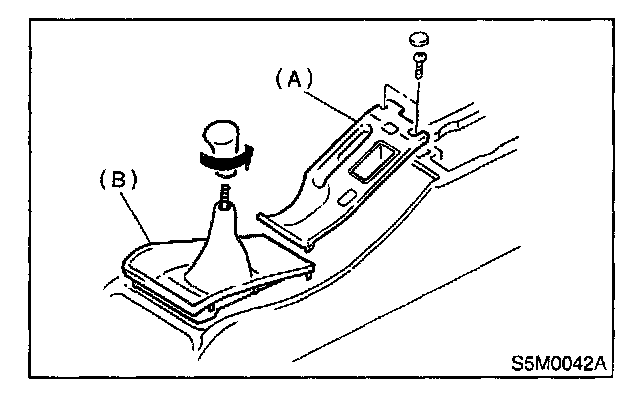

3. Remove console cover (A) and front cover (B) while disconnecting connector.
4. Disconnect connector from security control module.

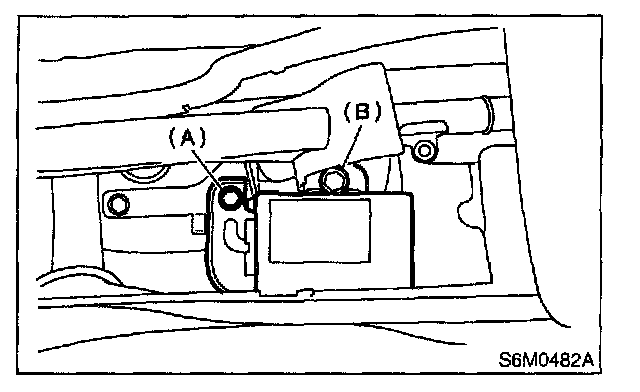

5. Remove bolt (A) and loosen bolt (B).

NOTE: Loosen bolt (B) without completely removing it.


6. Remove security control module.


INSTALLATION
Install in the reverse order of removal.


NOTE: To install the security control module, tighten bolts securely so that the bolts do not come loose.
