Repair and Diagnosis: Application and ID

IDENTIFICATION

Positioning Of The Plate Label For Identification Part 1:

Positioning Of The Plate Label For Identification Part 2:

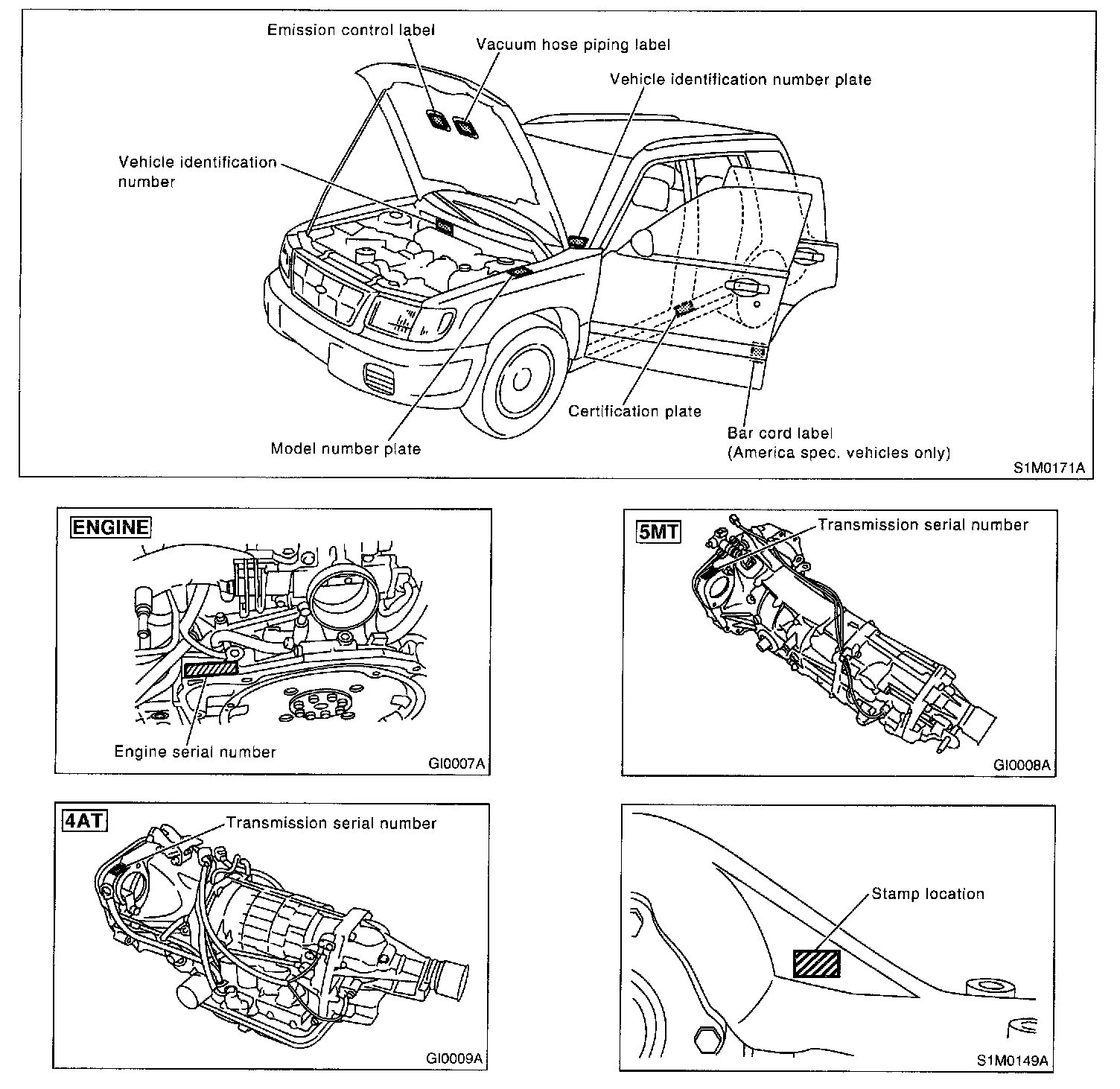

1. IDENTIFICATION NUMBER AND LABEL LOCATIONS
The VIN (Vehicle Identification Numbers) is used to classify the vehicle.

]JF1SF635X2G700001[:

2. MEANING OF VIN
The meaning of the VIN is as follows:
The starting and ending brackets ( ][ ) are stop marks.

REAR DIFFERENTIAL / T2:

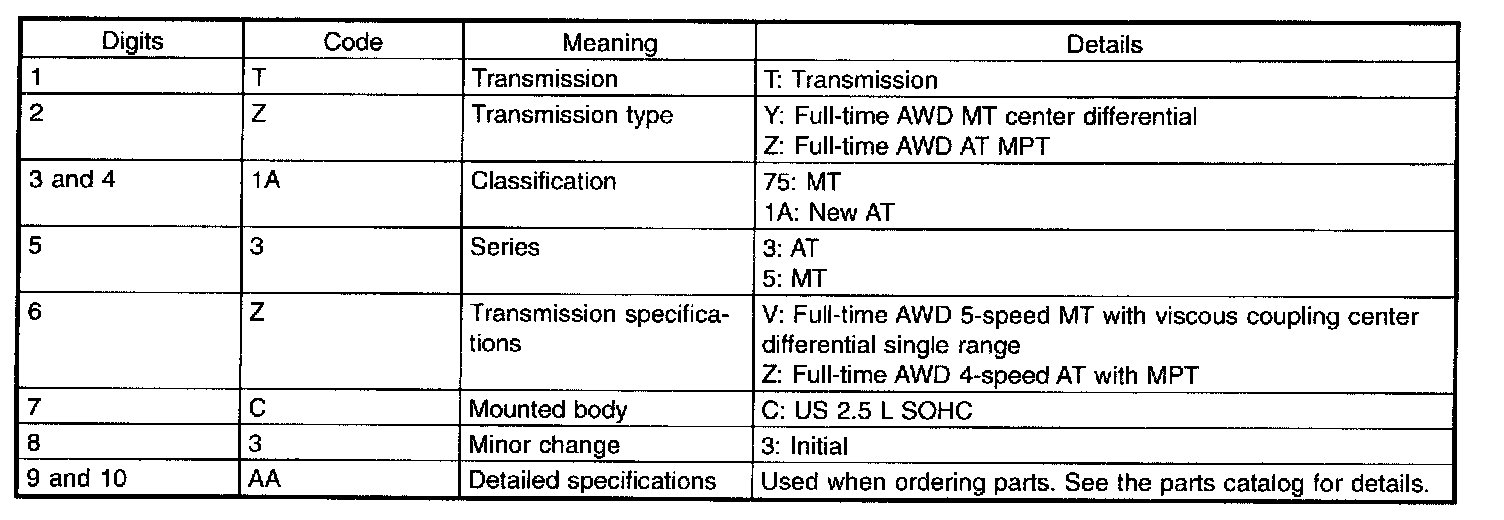

TRANSMISSION / TZ1A3ZC3AA:

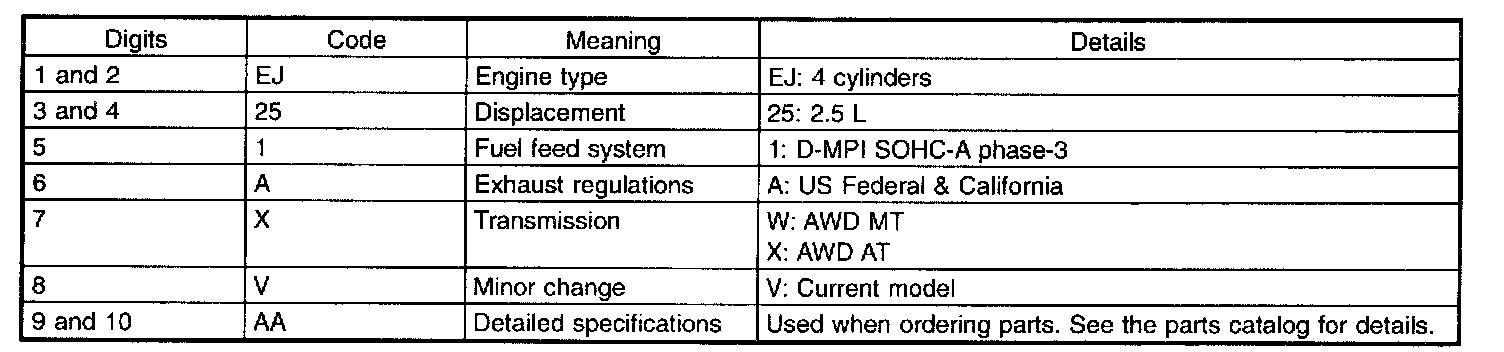

ENGINE / EJ251AXVAA:

MODEL NUMBER PLATE / SF9EY3J:

3. MODEL NUMBER PLATE
The model number plate indicates: the applied model, the option code, the trim code, the engine type, the transmission type, and the exterior color code. This information is helpful when placing orders for parts.
