Front Fender: Service and Repair

FENDER PANEL

Front Door Panel:

REMOVAL

1. Disconnect ground cable from battery.
2. Remove side protectors and fender protectors.
3. Remove mud guard.
4. Remove front bumper face.
5. Remove headlights.

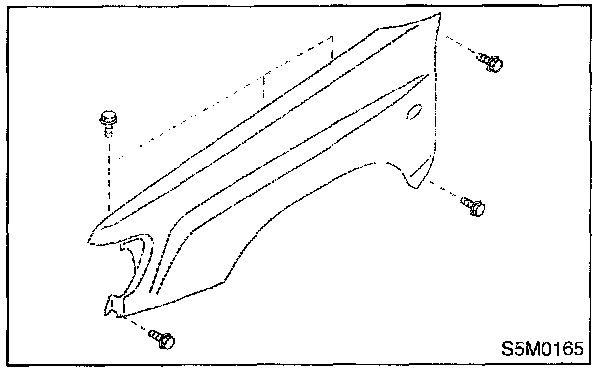

6. Remove bolts to remove front fender.

INSTALLATION

1. Install in the reverse order of removal.
2. When fender panel is installed, clearance between fender panel and hood or front fender must be equal.

Tightening torque: 7.35 N.m (0.75 kgf-m, 5.4 ft-lb)
