Grille: Service and Repair
FRONT GRILLEREMOVAL 1.
Open
hood.
2.

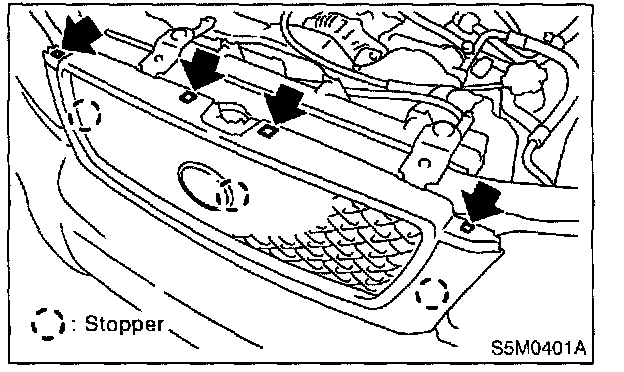

Remove the four upper clips from the body panel. Push the part shown in the figure by using a screwdriver while lightly pulling the front
grille.
INSTALLATION 1.
Attach all clips to front
grille.
2.
Align them with clip holes in body and push them into place.
