Inner Rearview Mirror



NOTE: The spring cannot be reused. Prepare a new spring before removal.


Inner Rearview Mirror / REMOVAL


Mirrors:

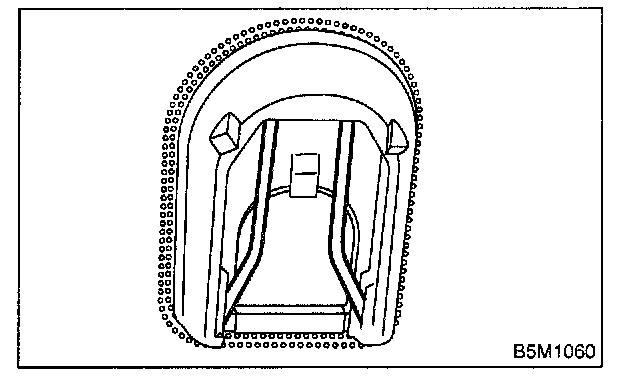

1. Turn mirror base 90 degrees clockwise or counterclockwise to remove it.






2. Remove spring from mirror base.

CAUTION: Be careful not to damage the mirror surface.



INSTALLATION
Install in the reverse order of removal.
