Replacement

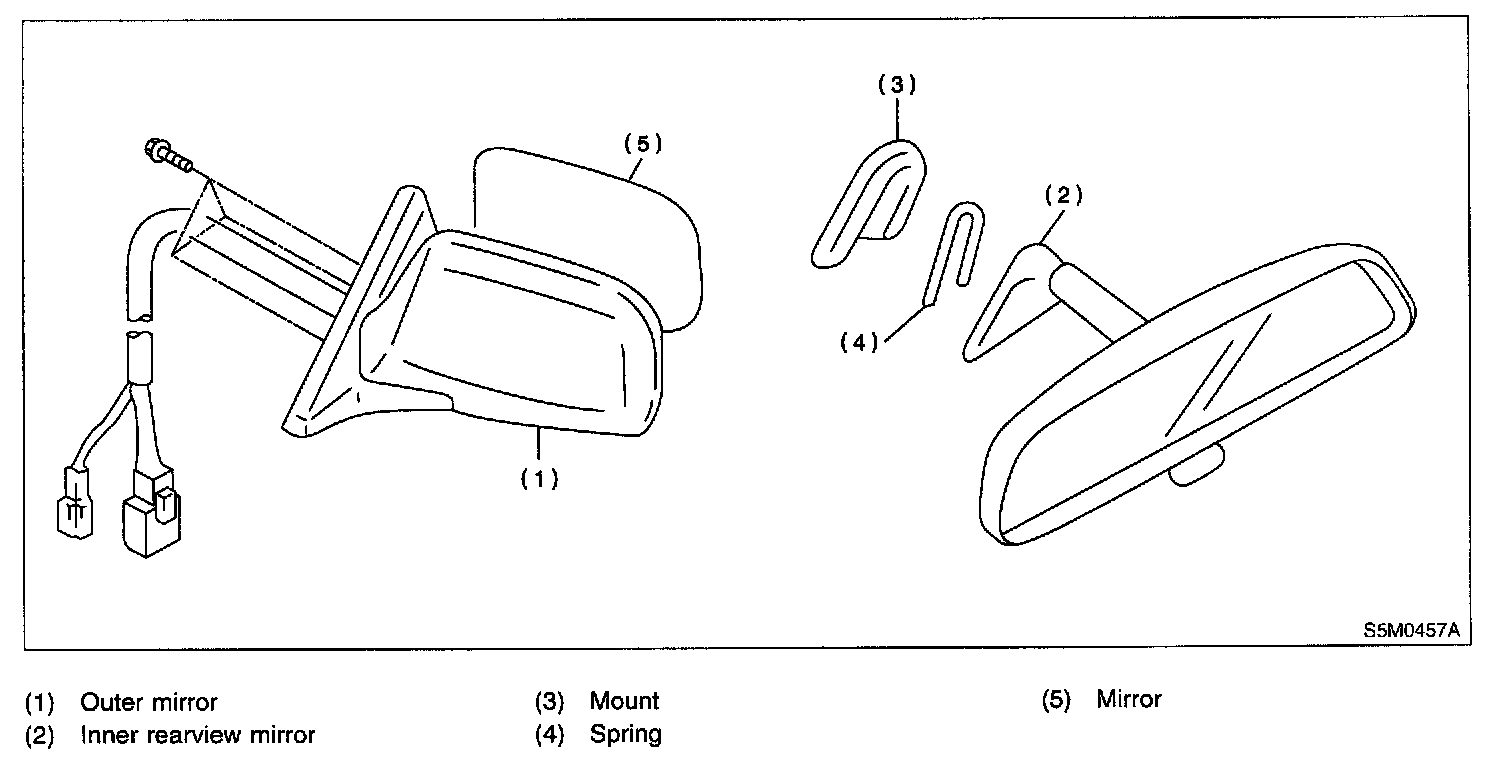

Mirrors:






Outer Mirror / REPLACEMENT
1. Remove the door mirror assembly. Removal and Installation>

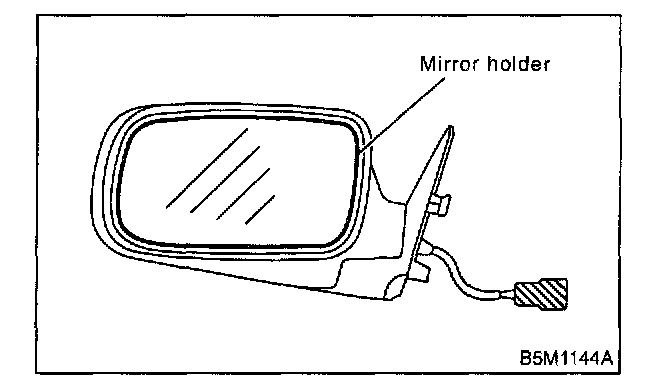

2. Warm the area around the mirror holder with a hair drier until the edges of the mirror holder become soft (about 2 or 3 minutes with a 1,000 W drier.)






3. Use a flat-bladed screwdriver without sharp edges to lift the mirror out of the mirror holder. (Also remove the connector from the back of mirrors with heaters.)
4. Warm the area around the mirror holder with a hair drier until the edges of the mirror holder become soft (about 2 or 3 minutes with a 1,000 W drier.)
5. Remove the backing of the new two-sided tape, and push the mirror in to install it.

CAUTION: Unless the mirror holder is warmed sufficiently, the mirror holder edges may be damaged or the mirror cracked.
