Front

INSPECTION





1 of 2





2 of 2

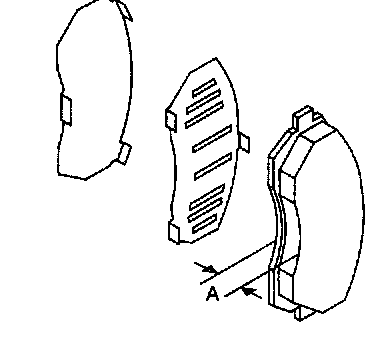

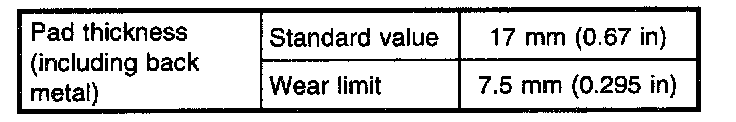

Check pad thickness A.

CAUTION:
^ Always replace the pads for both the left and right wheels at the same time. Also replace pad clips if they are twisted or worn.
^ A wear indicator is provided on the inner disc brake pad. If the pad wears down to such an extent that the end of the wear indicator contacts the disc rotor, a squeaking sound is produced as the wheel rotates. If this sound is heard, replace the pad.
^ Replace pad if there is oil or grease on it.
