Cruise Control Main Switch

Cruise Control Main Switch / REMOVAL
1. Disconnect ground cable from battery.
2. Remove screws and clip from instrument par lower cover.

3. Remove panel lower cover.

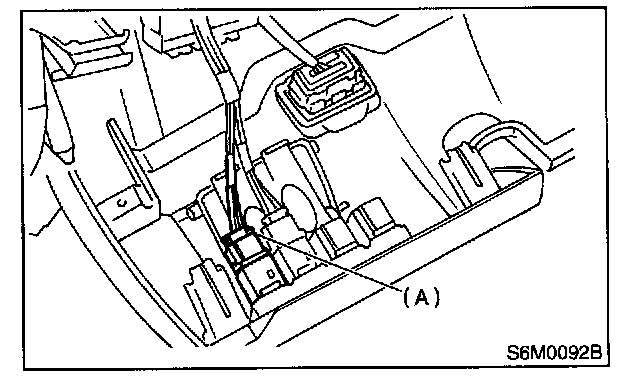

4. Disconnect connector from cruise control main switch (A).

5. Remove main switch by pushing it outward.

INSTALLATION
Install in the reverse order of removal.
