Manual Transmission/Transaxle

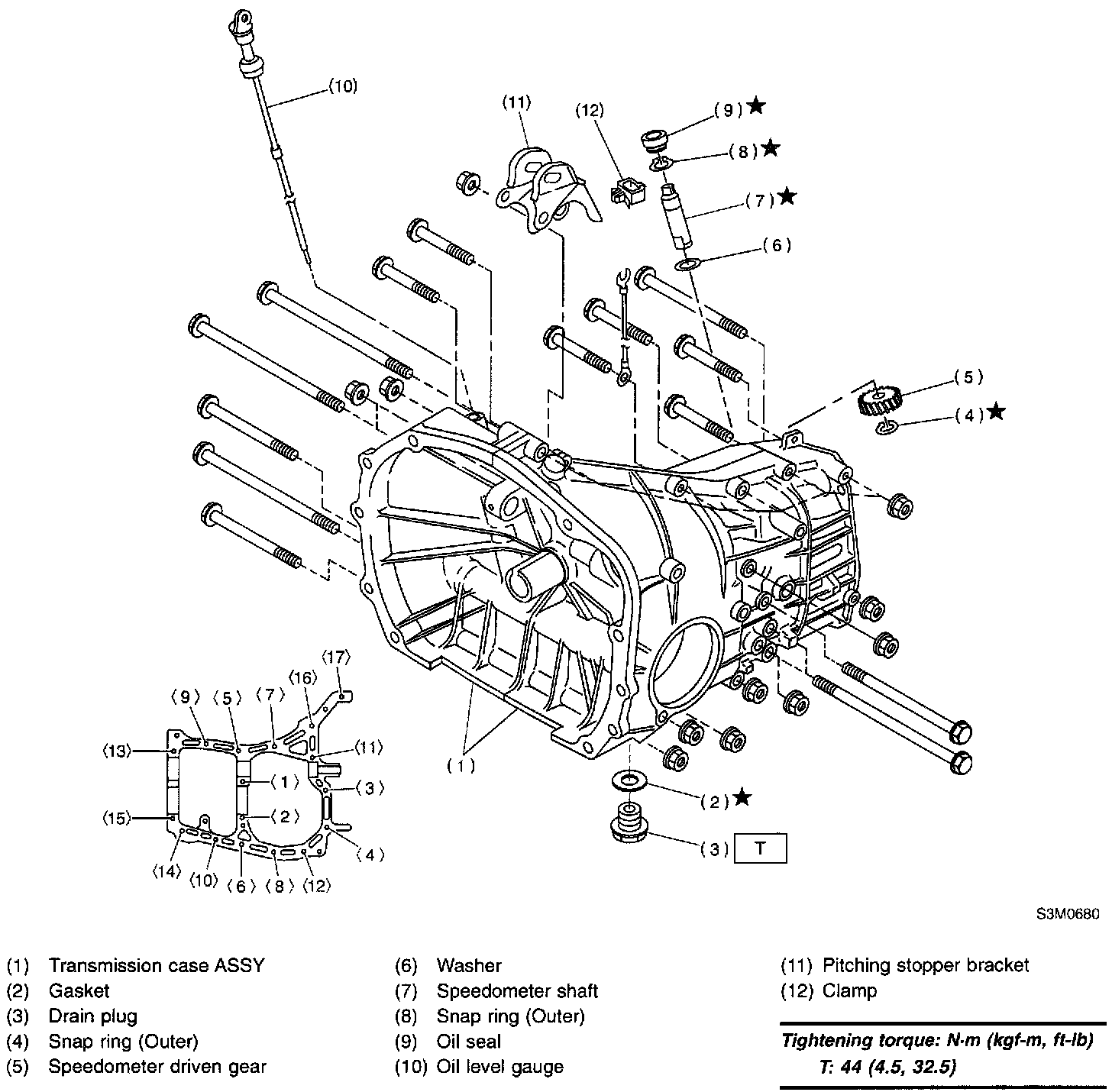

1. TRANSMISSION CASE

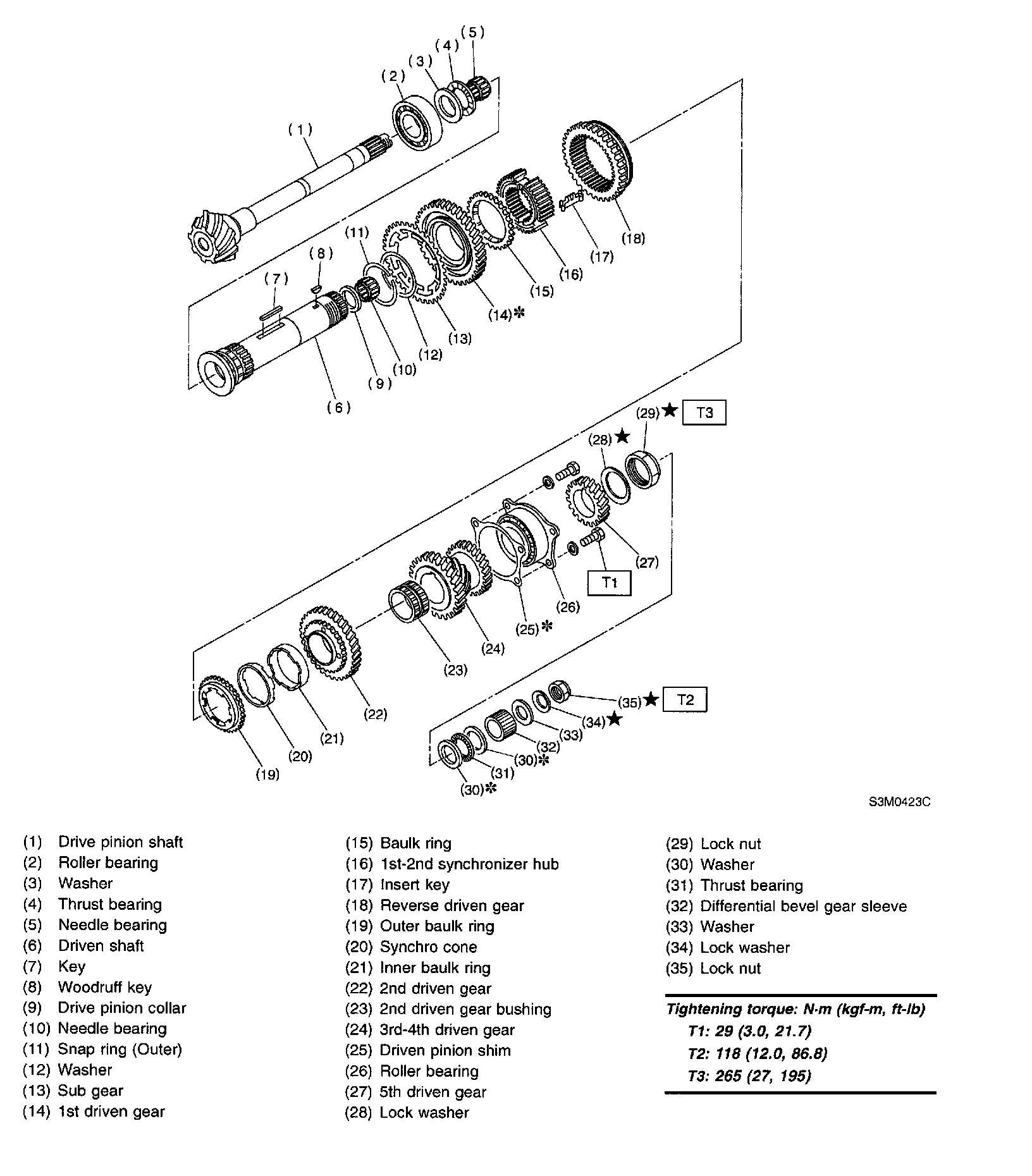

2. DRIVE PINION ASSEMBLY

3. MAIN SHAFT ASSEMBLY

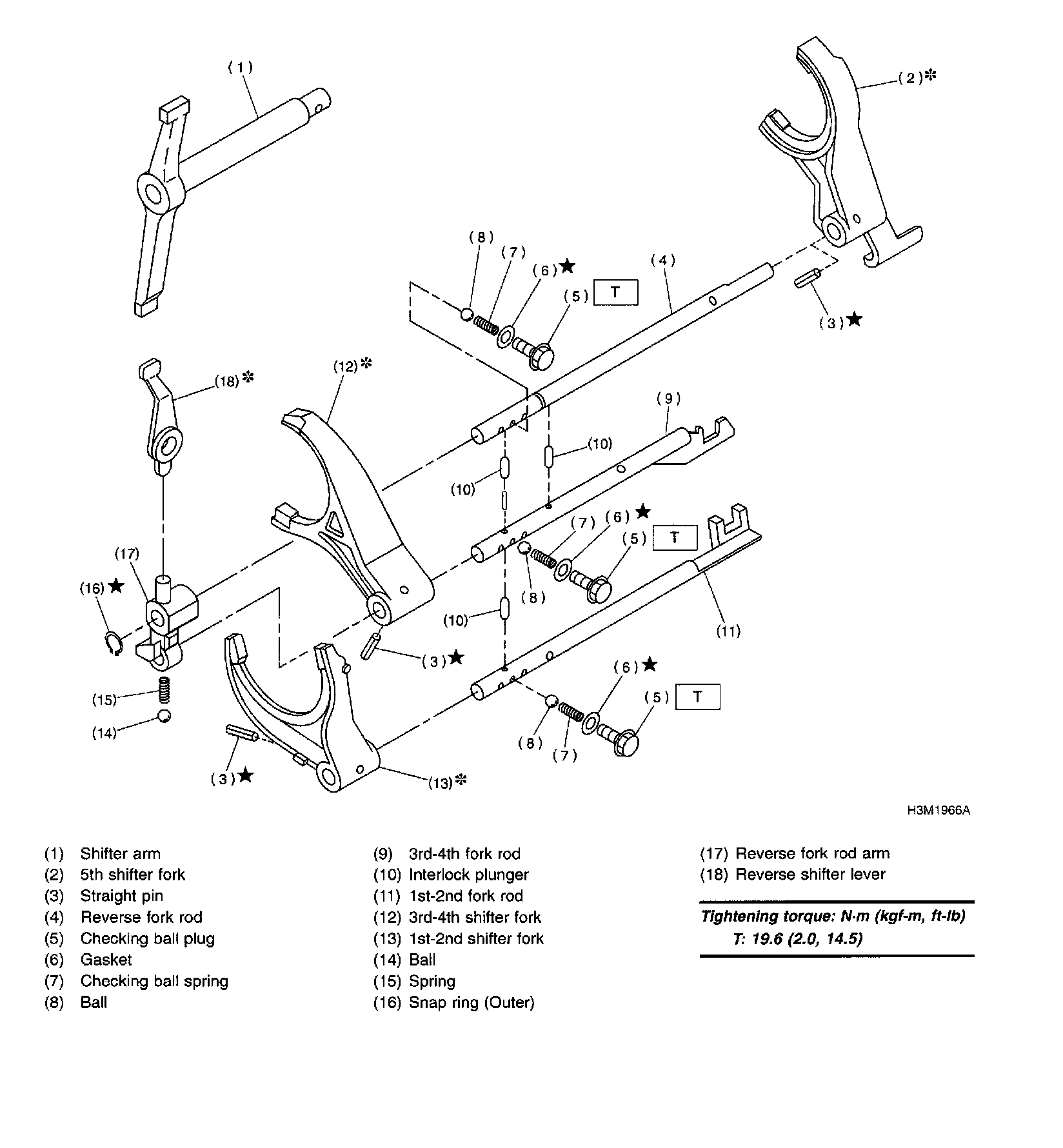

4. SHIFTER FORK AND SHIFTER ROD

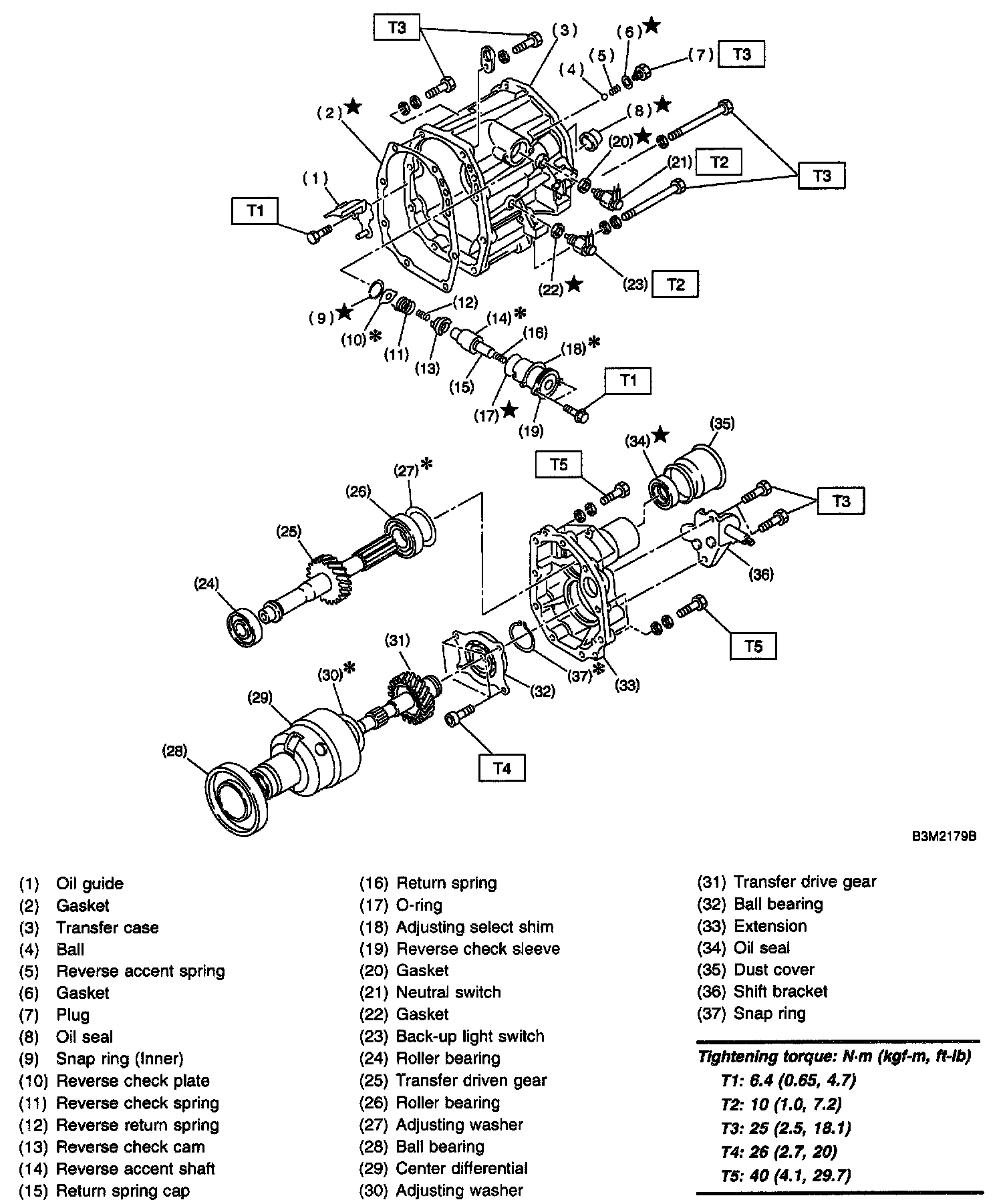

5. TRANSFER CASE AND EXTENSION

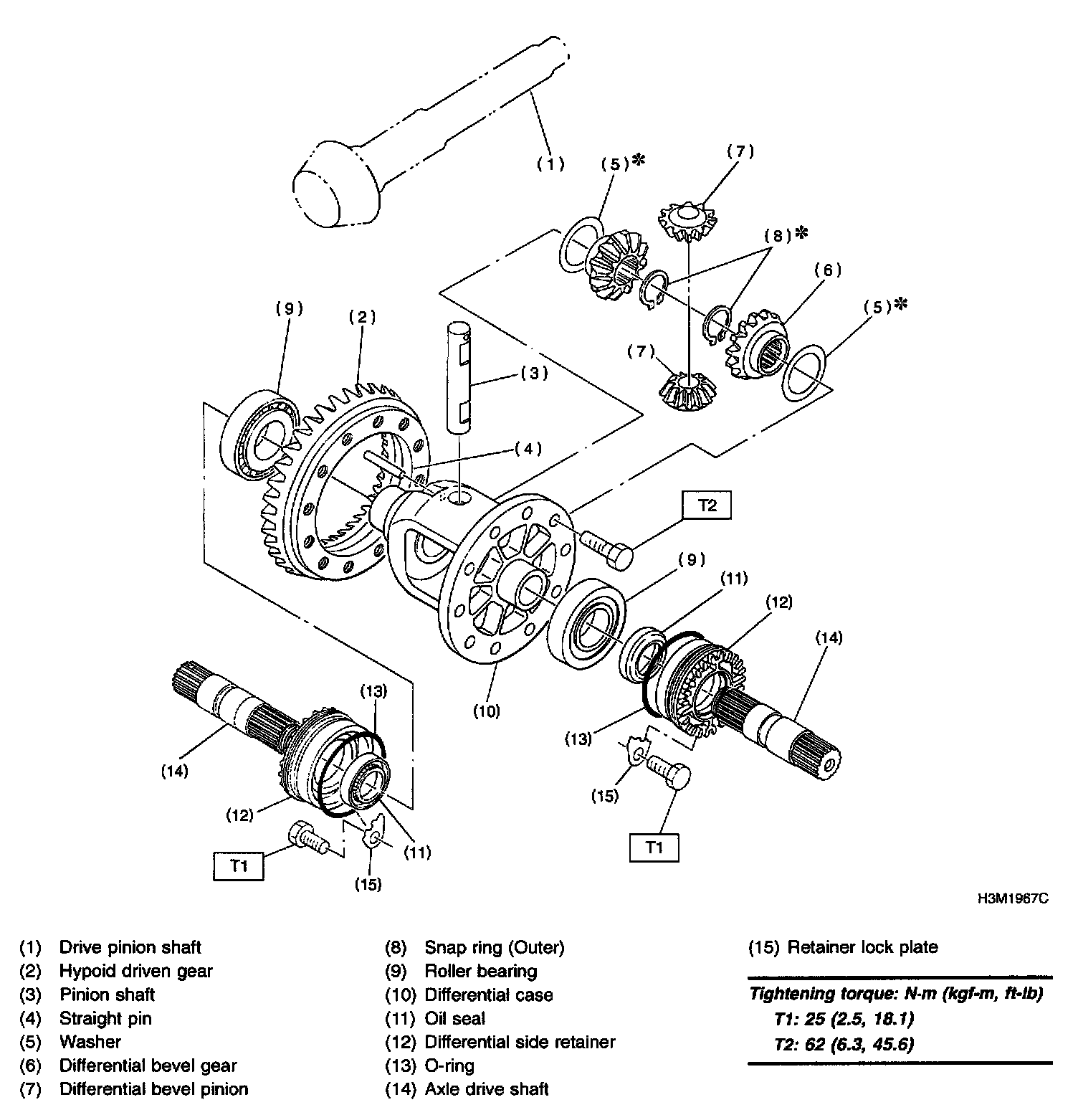

6. FRONT DIFFERENTIAL

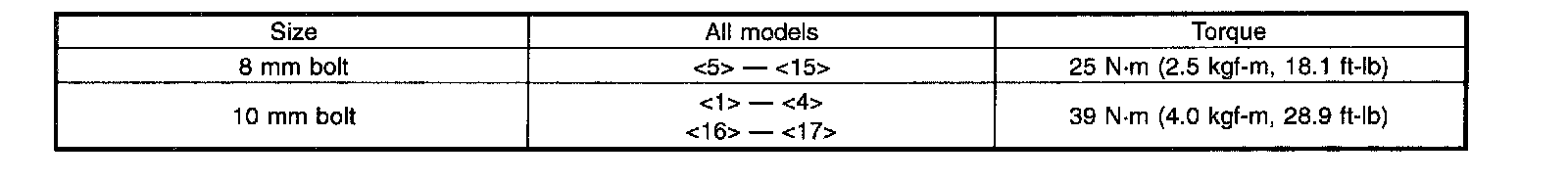

7. TRANSMISSION MOUNTING
