Timing Cover: Service and Repair

REMOVAL
1) Remove V-belt.
2) Remove crankshaft pulley.

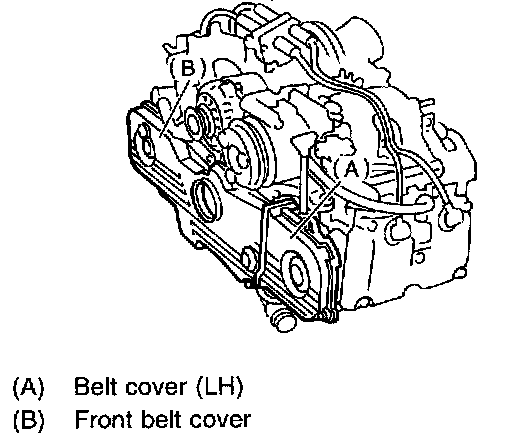

3) Remove belt cover (LH).

4) Remove front belt cover.

INSTALLATION

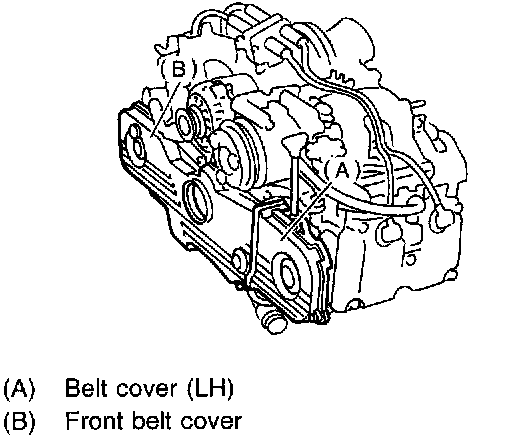

1) Install front belt cover.
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)

2) Install belt cover (LH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
3) Install crankshaft pulley.
4) Install V-belt.

INSPECTION
Make sure the cover is not damaged.
