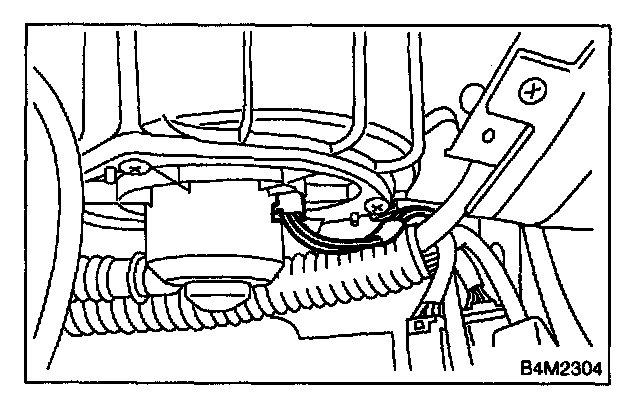

Blower Motor: Service and Repair
Blower Motor Assembly / REMOVAL 1.
Disconnect ground cable from battery.
2.
Remove glove box.
3.
Disconnect
blower motor connector.
4.
Remove 3 mounting screws.
5.
Disconnect
aspirator pipe (A) and remove
blower motor.
INSTALLATIONInstall in the reverse order of removal.
