Compressor Clutch: Testing and Inspection

Compressor Clutch / INSPECTION

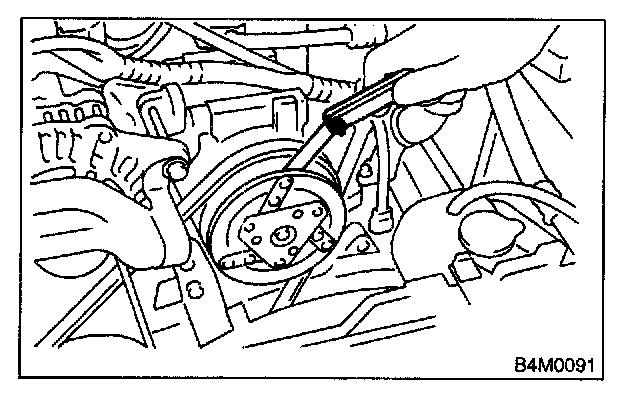

1. MAGNETIC CLUTCH CLEARANCE

a. Check the clearance of the entire circumference around the drive plate and pulley.


Standard: 0.45 ± 0.15 mm (0.0177 ± 0.0059 in)

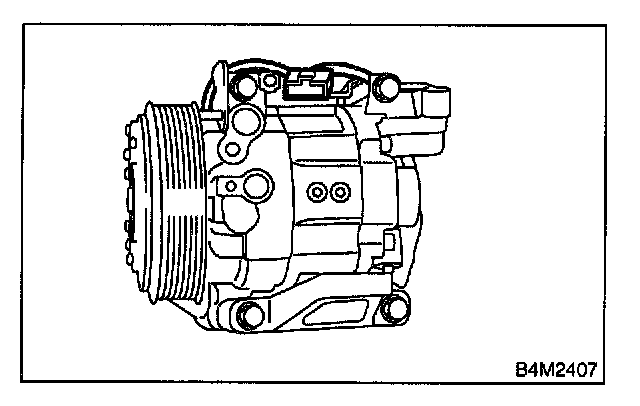

2. MAGNETIC CLUTCH OPERATION
a. Disconnect the compressor connector.






b. Connect the No.3 terminal of the compressor connector from the battery to the positive (+) lead. Ground the negative (-) lead to the body.
c. Make sure the magnet clutch engages.

If NG, replace the compressor.
