Control Assembly: Adjustments

ADJUSTMENT

1. Operate temperature control switch to "FULL COLD" and mode selector switch to "VENT" position and recirc switch to "RECIRC" position.

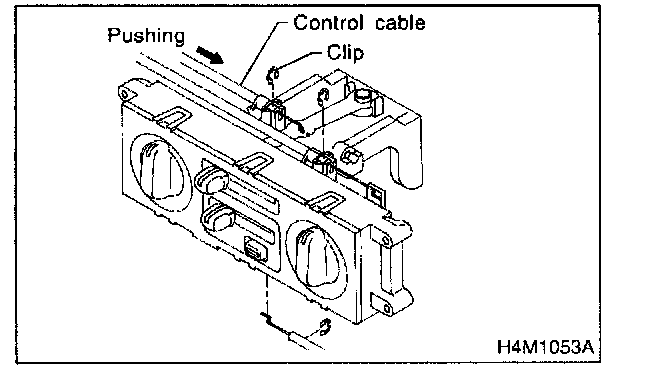

2. Install control cable to lever. While pushing outer cable, secure control cable with clip.
