Heater Core: Service and Repair

Heater Core/ REMOVAL

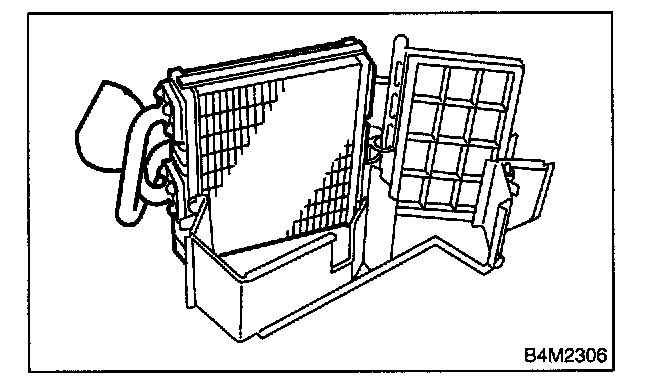

1. Remove heater unit. Heater Core Case>
2. Remove screws to separate heater unit case.

3. Remove heater core.

INSTALLATION
Install in the reverse order of removal.
